Description

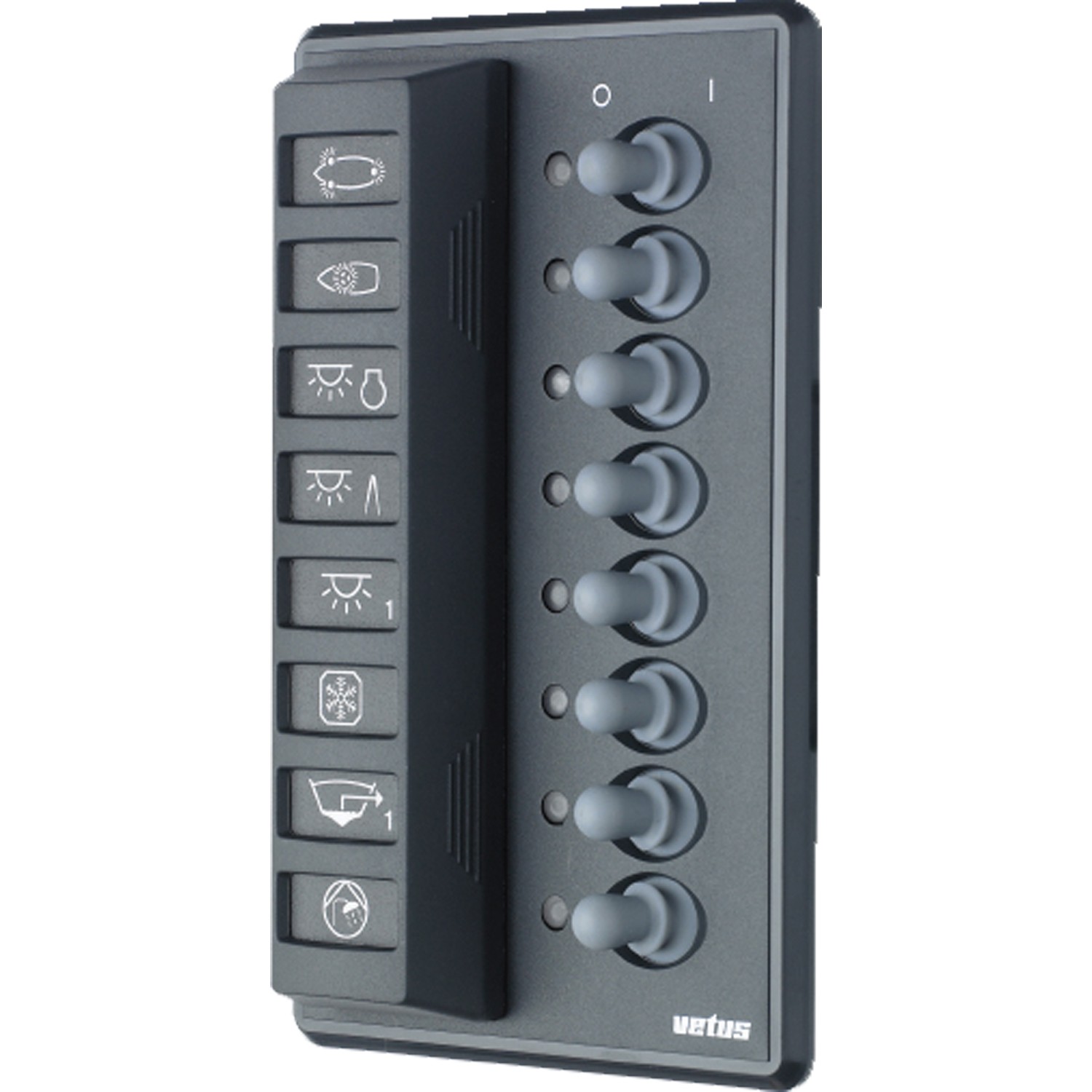

The VETUS P8FA switch panel is splash proof according to IP64. It has 8 separate circuits, each provided with a switch, indicator LED and fuse holder, and is suitable for both 12V DC and 24V DC circuits.
The panel can be used with conventional automotive (ATO) fuses or with automatic fuses. The following automotive (ATO) fuses are supplied as standard: 2 x 1A, 2 x 3A, 4 x 5A, 2 x 7.5A, 4 x 10A, and 2 x 15A. The 8 fuse holders are located in a separate compartment, which can be opened at the front of the panel, where either type of fuse may be fitted.
60 self-adhesive name/symbol plates for different functions are supplied. There are also 2 covers supplied for the fuse compartment, depending on whether automatic fuses or conventional automotive (ATO) fuses are used. The panel is completely pre-wired and provided with a terminal rail, for connection of the power supply and the consumer equipment. The panel is made of synthetic and non-corrosive materials.
