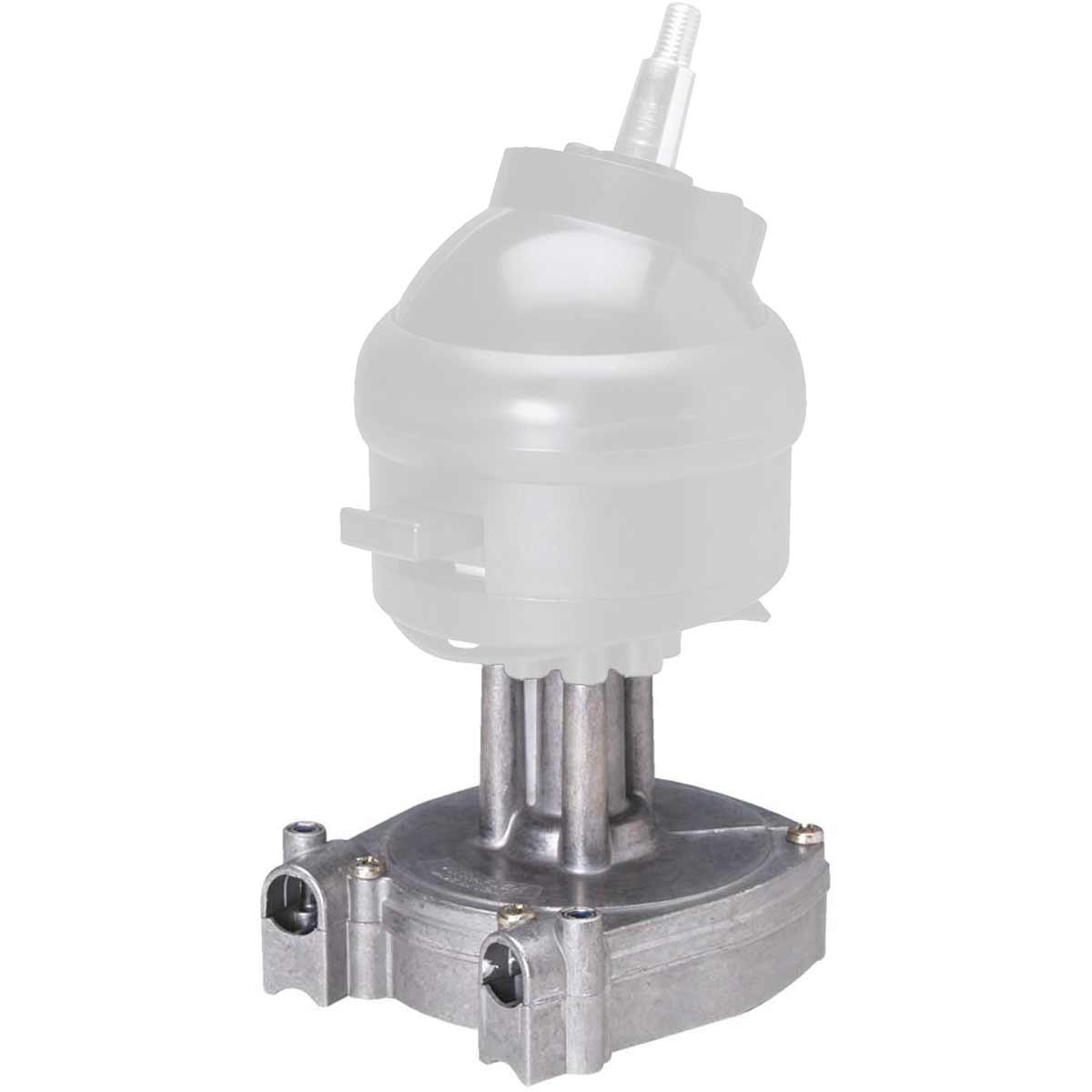

Ultraflex Fast Connect Non Return Tilt Steering Helm

Ultraflex Fast Connect Non Return Tilt Steering Helm

SKU: 4-T83NRFC MPN: 38959N
cancel Out of Stock
£153.60 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

Please note: this is the helm only, please order 4-X52 tilt mechanism separately.

Ultraflex fast connect non-return tilt steering helm features a Planetary gear design, with a tilt range of 48° and five locking positions. The tilt device eliminates under dash movement.

Ultraflex T-83NRFC non-reversible steering helm eliminates the continuous load on the operator caused by the propeller torque making steering easy and safe.

Ideal for outboards and surfacing propellers.

All stainless steel cable output ends as per ABYC safety standards.

Fast connect, simple installation.

Standard 3/4″ Tapered Shaft – Stainless steel

Corrosion resistant materials.

Lock-to-lock steering wheel turns: Approximately 3.8.

Stroke: 228mm (9″).

Maximum steering wheel diameter: 406mm (16″).

Minimum steering cable bend radius: 200mm (7.9″).

T83NRFC is not be used on boats equipped with engines that exceed the max horsepower rating of the boat.

For boats faster than 50mph hydraulic steering systems are recommended

Exceeds ABYC P17 & EN 28848 safety standards.

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Ultraflex Fast Connect Non Return Tilt Steering Helm
SKU: 4-T83NRFC

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

Please note: this is the helm only, please order 4-X52 tilt mechanism separately.

Ultraflex fast connect non-return tilt steering helm features a Planetary gear design, with a tilt range of 48° and five locking positions. The tilt device eliminates under dash movement.

Ultraflex T-83NRFC non-reversible steering helm eliminates the continuous load on the operator caused by the propeller torque making steering easy and safe.

Ideal for outboards and surfacing propellers.

All stainless steel cable output ends as per ABYC safety standards.

Fast connect, simple installation.

Standard 3/4″ Tapered Shaft – Stainless steel

Corrosion resistant materials.

Lock-to-lock steering wheel turns: Approximately 3.8.

Stroke: 228mm (9″).

Maximum steering wheel diameter: 406mm (16″).

Minimum steering cable bend radius: 200mm (7.9″).

T83NRFC is not be used on boats equipped with engines that exceed the max horsepower rating of the boat.

For boats faster than 50mph hydraulic steering systems are recommended

Exceeds ABYC P17 & EN 28848 safety standards.

Brand

Ultraflex
