Description

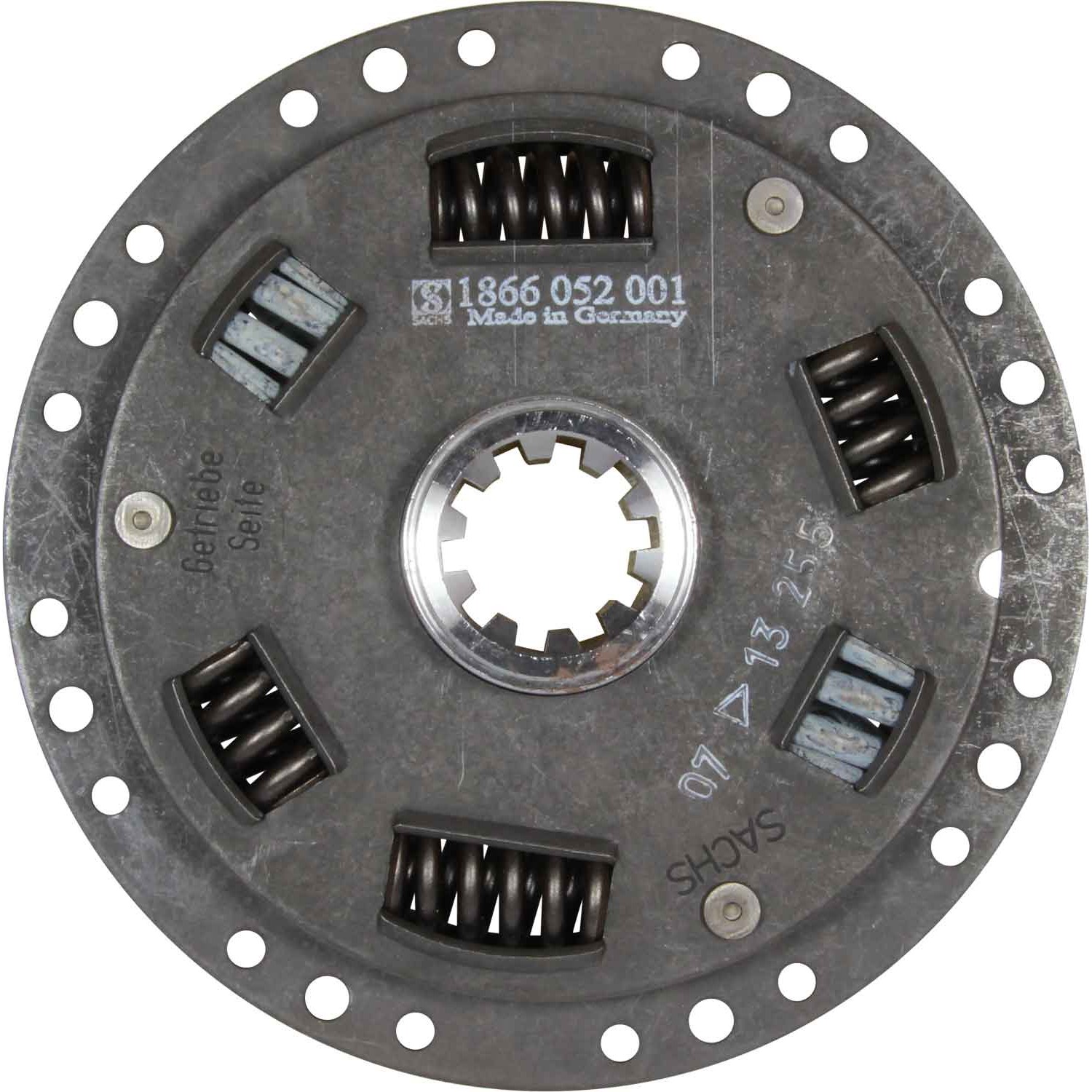

Replacement spring type drive plate for Hurth HBW, ZF and PRM Gearboxes.
The damper drive plate fits between the flywheel to the gearbox to drive the gearbox shaft. Also known as the drive plate, clutch plate, spring plate or gearbox plate. Typical applications for the DF254762 damper drive plate include Hurth HBW gearboxes such as HBW35, HBW50, HBW100 & HBW150, ZF gearboxes such as the ZF10 & ZF12. It also fits the PRM gearbox spline of the PRM80, PRM120 & PRM150 gearboxes, Borgwarner 500 gearbox and TMC 30 & 40 gearboxes.
DF254750 Drive plate technical details:
– Overall diameter of drive plate back plate: 151.5mm (5.96″)
– 10 teeth spline B10 x 23 x 29 DIN5464 (29.0mm diameter)
– Bolt hole details: 8 x 6.00mm (0.24″) holes on 140.0mm (5.51″) PCD and 16 x 5.1mm (0.20″) holes on 140.0mm (5.51″) PCD
– Overall drive plate thickness: 23.50mm (0.93″)
– 6 springs
Can replace the following drive plates:
– Hurth 254762
– ZF 3306.316.003
– Sachs 04.1866.052.001
– Borgwarner 23-01-650-001
If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
