Description

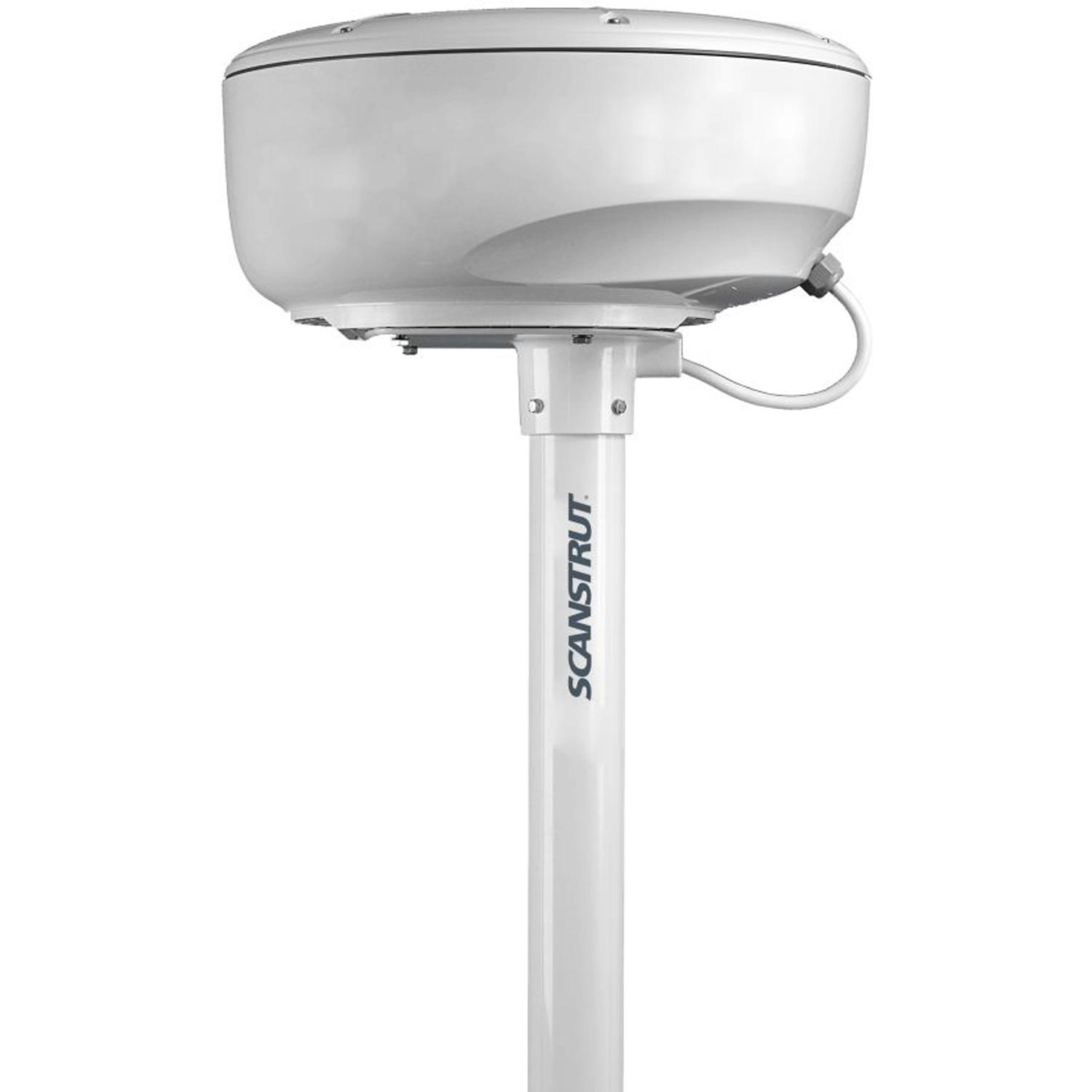

The Scanstrut SC104 radar pole mount is universal to install your radar onto the deck or transom (recommended) of your boat. This 2.5m (8.3′) pole mount is supplied as a complete kit, you will have everything you need for a quick and easy installation. Made from marine-grade aluminium and coated with Scanstrut’s unique 4-step marine paint system, making sure that your radar pole mount stays looking its best year-in year-out, whatever the oceans throw at it. Fits most up-to-date radars from Furuno, including:
Radar Radomes:
– Furuno 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS42DL, DRS42DL+, DRS4D, DRS4D-NXT, DRS4W, NavNet (18″) & NavNet (24″)
– Humminbird AS 21RD4KW
– Interphase Mini RE-1, RE-8 & RE-9
– JRC 1000, 1000mk2, 1066, 1500, 1500mk2, 1800, 2000, JMA 2343 & 5104 (Radome NKE-2042)
– Koden 2kW 12″ & 4kW RB715A
– Lorenz 2kW
– Lowrance LRA-1800, RB714A, DX42 & LRA-2400 HD
– Navman 8000 Series, 8084 / 8120 18″ & 24″
– Nobeltec 2kW (20″) & 4kW IR2-4D 25″
– Northstar M series, 8000i (18″ & 24″)
– Seiwa SWR-1, SWR-8 & SWR-9
– Simrad GB40, NX40/45, NSE8/12, RB712A, DX42S & DX64S
– Sitex MDS-1, MDS-8, MDS-9, MDS-12 & NKE-1066
– Techmarine T-72.01, T-72.02 & T-72.04
Satcoms:
– Furuno SC33 Sat Compass
– Glomex Pandora v8001, RHEA V8100, Urania V9331, V9000 & V9001 series
– Intellian FB150 in i2, FB250 in i2, FB250R in i2 & i1
– KVH TracVision M1 & TracVision TV1
– Majestic SATMAR32, SATMAR32D & SATMAR37D
– Raymarine 33STV
– 360° Adjustable Base: new look anodised aluminium base gives choice when deciding where you wish to install the pole mount. Base enables the pole to be installed on both sloping transoms and level decks.
– Unique Pole Extrusion: accommodates two cable channels with a cover strip to hold cables in place and out of view.
– Stable Installation: have confidence in your installation – you are supplied with two support modules which provide maximum fore/aft and sideways support.
– Easily Removed: Unscrew the base and remove pole for racing or winter storage, leaving just low profile base on deck.
– Choice of Height: 1.9m (6.4′) recommended for deck mounting (6-80582 / SC103) and 2.5m (8.3′) recommended for transom mounting.
– Marine Grade Materials: 6082 aluminium pole with a polyester powder coat for a durable and gloss white finish.
