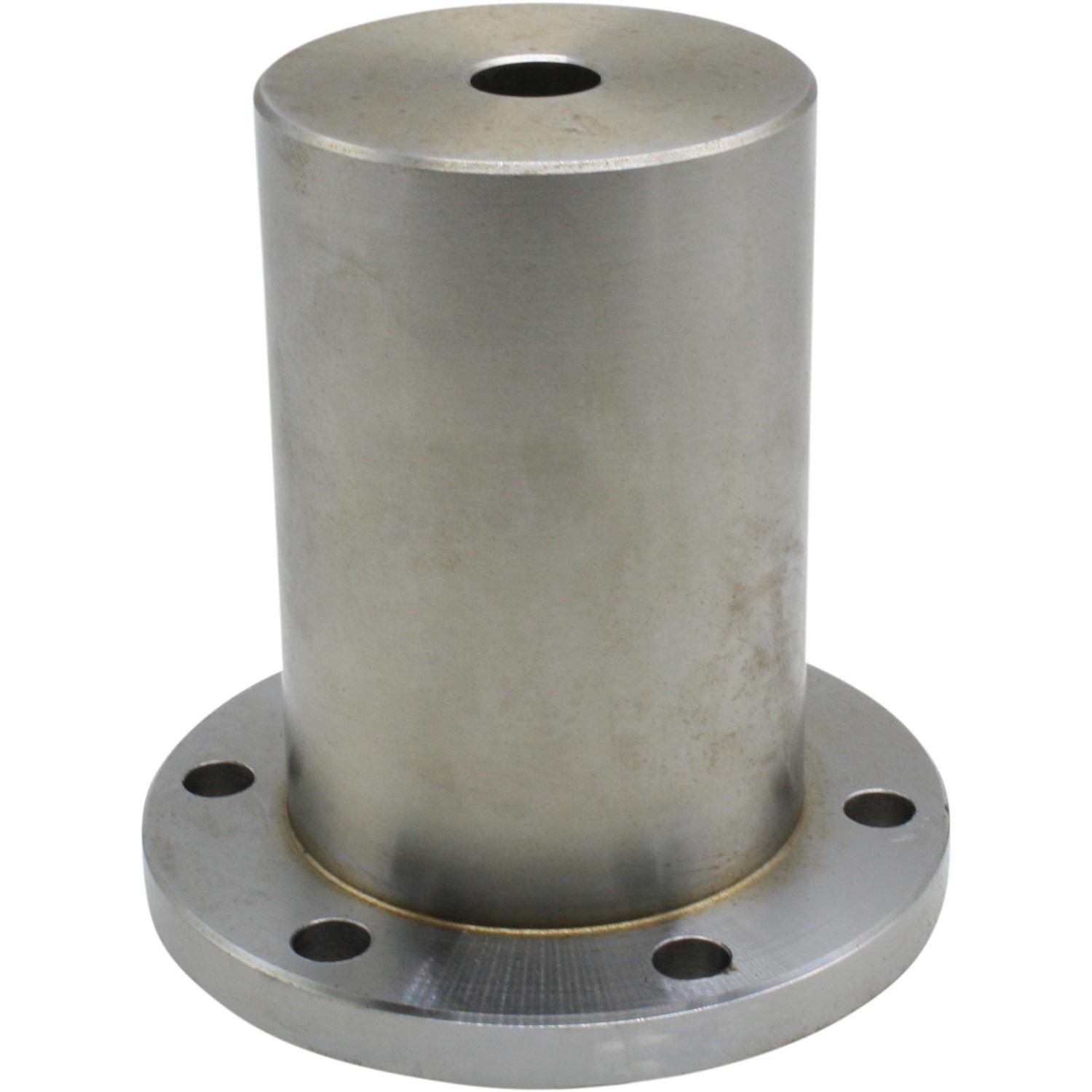

R&D Marine 6″ Long Solid Half Coupling Pilot Bored

Name: R&D Marine 6" Long Solid Half Coupling Pilot Bored - Marine Chandlery
SKU: 808602
Price: 277.45 GBP
Availability: OutOfStock

SKU: 808602 MPN: 202-054

cancel Out of Stock

£277.45 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

This solid half coupling is machined from solid steel and mates with the gearbox output coupling to connect a boat propeller shaft to the gearbox, usually via a flexible coupling. This solid shaft half coupling is pilot bored and needs to be machined to suit the boat propeller shaft diameter.

Typical applications include:

6″ nominal gearbox flanges of Newage PRM, Borgwarner Velvet Drive and ZF – Hurth gearboxes.

Coupling dimensions:

a – Flange outside diameter = 5.75″

b – Hole pitch circle = 4.75″

c – Number of holes = 6

d – Hole size = 0.50″

e – Register diameter = 3.00″ male

f – Coupling length = 5.87″

g – Coupling boss diameter = 3.65″

h – Pilot bore diameter: 21mm (for customer machining to parallel or taper as required.)

Solid Half Coupling Dimensions Diagram

R & D Marine Solid type shaft coupling number 202-054 Pilot Bored
