R&D Flexible Engine Mount

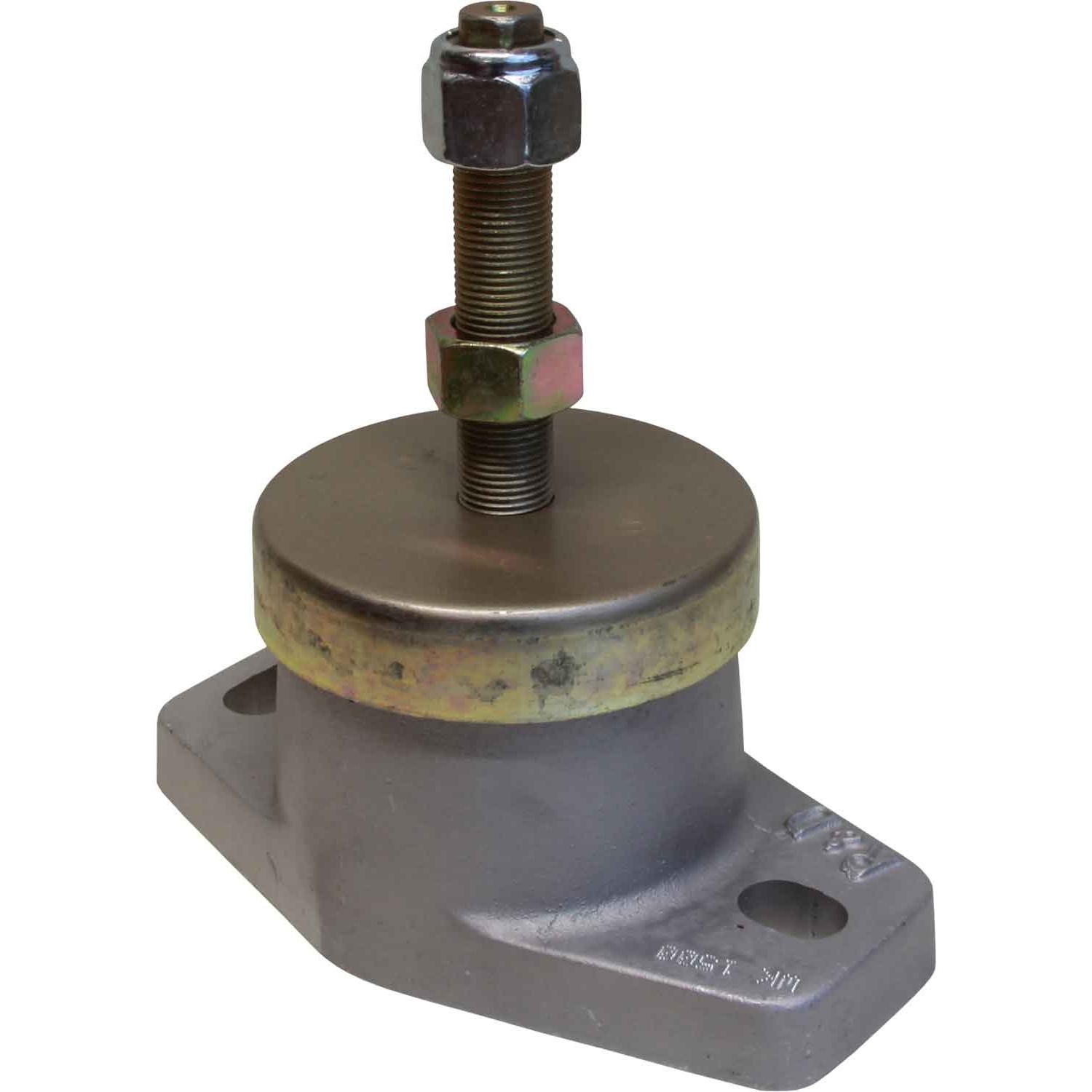

R&D Flexible Engine Mount (Shear Type / 650 – 1500LBS / 3/4″ Stud)

SKU: 207016 MPN: 800-016
cancel Out of Stock
£142.55 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

R&D 207016 flexible engine mountings have been designed and engineered for the rigours of marine engines.

The design of the 207016 flexible engine mount has added features of being fail-safe, working within controlled limits and able to withstand a roll-over test. The mount is soft vertically and at right angles to the crankshaft to isolate vibrations, as well as being able to cope with propeller thrust. It is fitted with an oil shield which is designed to protect the rubber.

Maximum clearance between the underside of the height adjusting nut and top washer must not be more than 10mm. If more height is required use a spacer under the mounting casting.

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: R&D Flexible Engine Mount (Shear Type / 650 - 1500LBS / 3/4" Stud)
SKU: 207016

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

R&D 207016 flexible engine mountings have been designed and engineered for the rigours of marine engines.

The design of the 207016 flexible engine mount has added features of being fail-safe, working within controlled limits and able to withstand a roll-over test. The mount is soft vertically and at right angles to the crankshaft to isolate vibrations, as well as being able to cope with propeller thrust. It is fitted with an oil shield which is designed to protect the rubber.

Maximum clearance between the underside of the height adjusting nut and top washer must not be more than 10mm. If more height is required use a spacer under the mounting casting.

Dimensions 17.463 × 101.6 × 183.51 cm
Maximum Load Description

296kg to 682kg (650lbs to 1500lbs)
Hole Centres

139.7mm (5.5")
Suitable For

6 Cylinder & Over Engines
Deflection

3mm to 6.4mm (0.12" to 0.25")
Mount Pre loaded

3mm (0.12")
Stud Size

3/4" UNF
Brand

R&D Marine
Application

6 Cylinder & Over Engines
Height Description

183.51mm (7.22"), Base: 86.62mm (3.41")
Width

Base: 101.6mm (4")
Length

Base: 174.63mm (6.88")
Dimensions

Height Adjusting Nut Thickness: 16mm (0.63")
Country of Origin

United Kingdom
