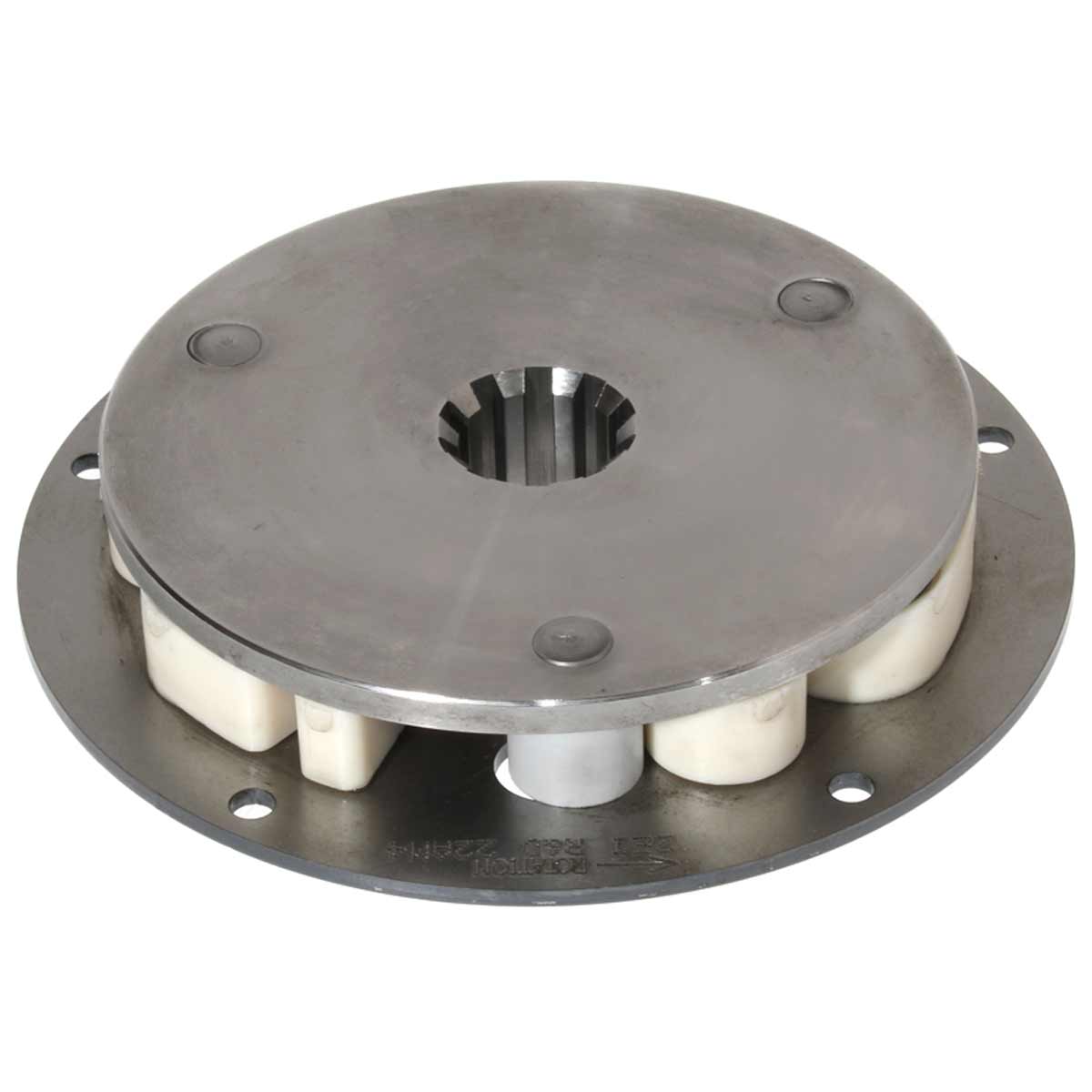

22AM4 Boat Engine Damper Drive Plate from R&D Marine
Fitted between the boat engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a ‘failsafe’ design.
Also called the Driven Plate, Damper Plate or Clutch Plate, the 22AM4 Damper Drive Plate is from the R and D High Deflection element range. Common applications for the 22AM4 drive plate include BMC, Ford and Perkins engines which have a flywheel with the 6.125″ diameter fixings aperture.
Drive plate 22AM4 can replace PRM drive plate MT4907 and R&D drive plate 22AA4.
Clutch plate technical details:
– Spline: 10 teeth B10 x 23 x 29 DIN 5464 (29mm diameter) for PRM 80, 120 & 150 gearboxes, Hurth ZF & HBW, Technodrive TMC 30, 40, 50, 60 gearboxes and the Borgwarner 500
– Diameter of drive plate back plate which bolts to the engine flywheel: 155.45mm (6.125″)
– Back plate fixing holes: The small back plate has 5 x 6.35mm holes (0.25″) on 142mm PCD (5.593). This was a very common fixing arrangement for BMC, Leyland, Thornycroft and Perkins engines
– Drive plate maximum thickness: 32mm (1.25″)
Fitted with the softer type AM high deflection ‘finger type’ element for 135Nm 100 ft lb torque, providing a maximum deflection up to 30 degrees. This type of drive plate is especially suited to workboats with slow speed applications & pleasure boats. Note that this type of damper drive plate can only be fitted to rotate in the standard direction of rotation (anti-clockwise when looking at the flywheel) with the drive plate element facing the gearbox. These damper plates are also failsafe.
