Description

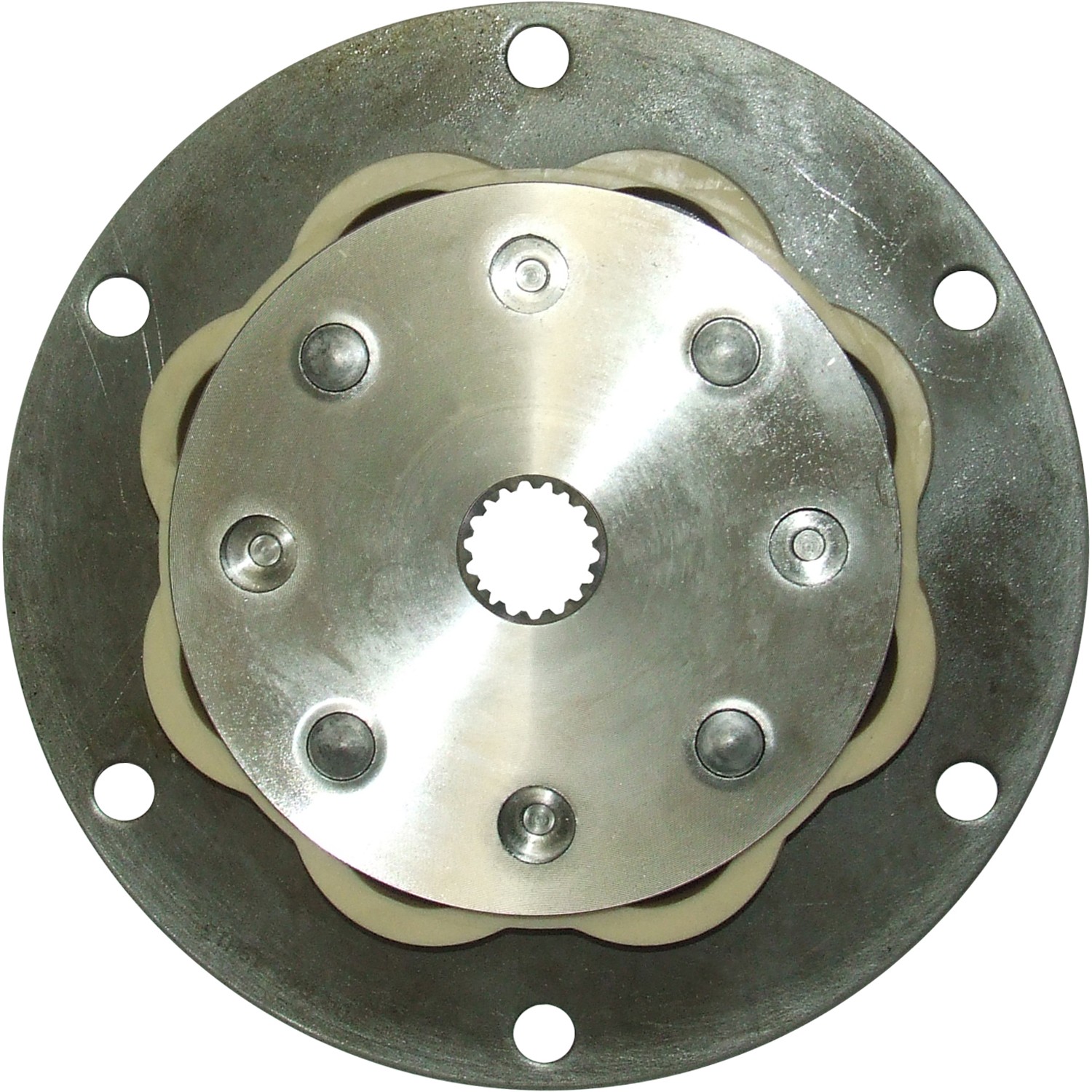

19H13 Boat Engine Gearbox Damper Drive Plate from R&D Marine
Fitted between the marine engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a ‘failsafe’ design.
Also called the Driven Plate, Damper Plate or Clutch Plate, the 19H13 Damper Drive Plate is from the R and D Loop element range. Common applications for the 19H13 drive plate include the Thornycroft 230 & 345 marine engines.
R&D 19H13 damper plate technical details:
– Spline: 17 teeth 16/32 DP (28.84mm diameter) for PRM 301, 302, 401, 402, 500 and PRM 750 gearboxes.
– Diameter of drive plate back plate which bolts to the engine flywheel: 234mm (9.212″)
– Back plate fixing holes: One single set of fixing holes, 6 x 13.1mm on 210mm PCD
– Drive plate maximum thickness: 36mm (1.41″)
Fitted with a type H robust, general purpose loop element for 360 Nm 270 ft lb torque, the 19H13 drive plate can be mounted either round on the flywheel and rotated in either direction. This drive plate element will provide linear stiffness up to 3 degrees of deflection and is failsafe.
If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
