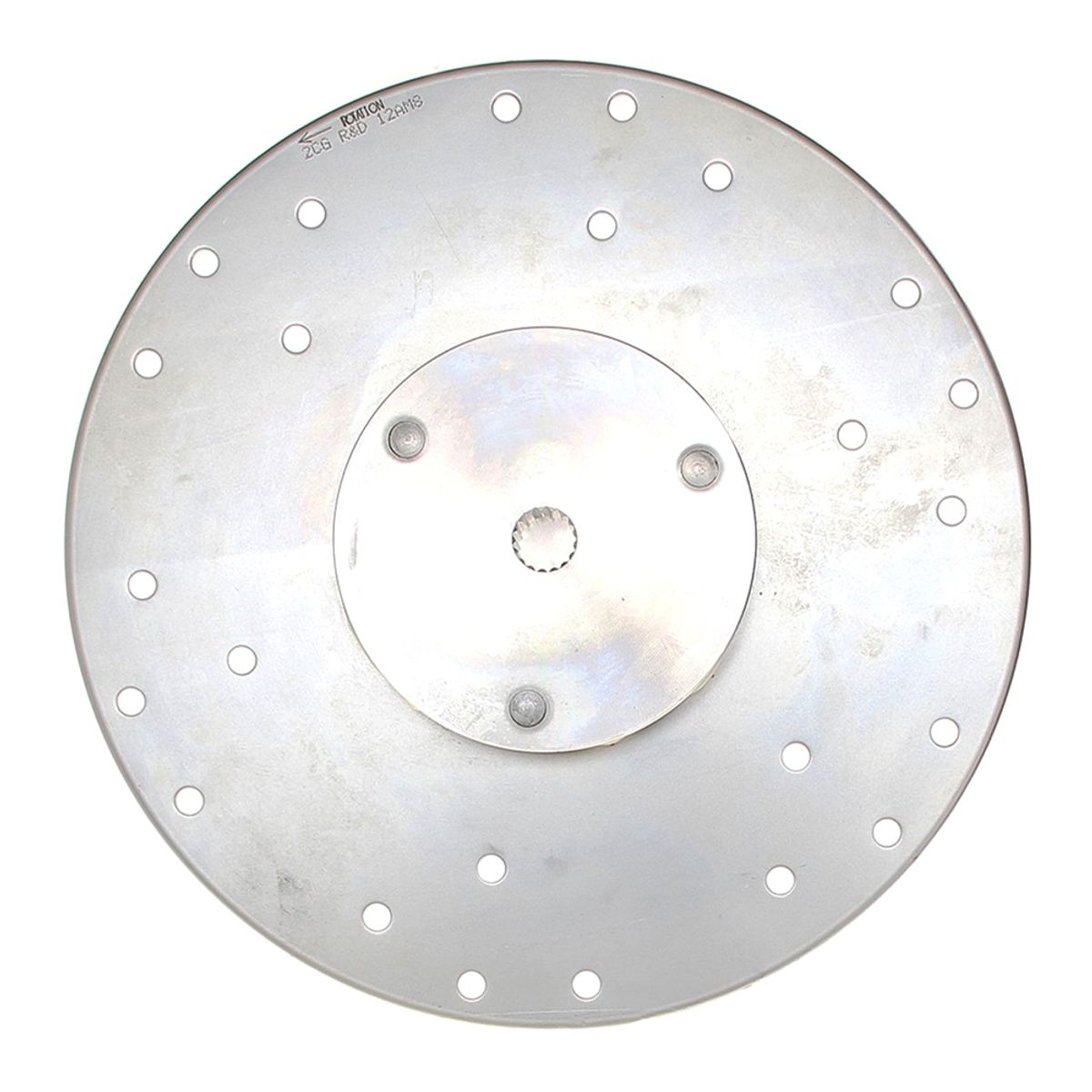

2AM8 R & D Marine Engine Damper Drive Plate
Fitted between the boat engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a ‘failsafe’ design.
Also called the Driven Plate, Damper Plate or Clutch Plate, the 2AM8 Damper Drive Plate is from the R and D High Deflection element range. Common applications for the 2AM8 drive plate include Ford or Mitsubishi engines mated to a Borg Warner, Paragon, PRM, Technodrive, TMP, Twin Disc, Volvo or Hurth gearbox subject to flywheel dimensions.
R & D 2AM8 drive plate technical details:
– Spline: 26 teeth 20/40DP (35.4mm diameter) for Borg Warner 71, 72, 73, 5000, Newage PRM inline 301, 302, 401, 402, 500, 750, Paragon P series, Technodrive TM93, 170, 260, 345, 485, 545, 880, TMP 1200, 1500, Twin Disc 502, 501, Volvo Penta MS3, 4, 5, HS1 Sail Drive 110, 110S, New 270-280 Leg, ZF Hurth HSW 125, 450, 630, 800, HBW 250, 360, IRM 220A gearboxes.
– Diameter of drive plate back plate which bolts to the engine flywheel: 298.5mm (11.75″)
– Back plate fixing holes (multi-hole fixing type): 6 x 8.1 on 200mm PCD, 6 x 8.1 on 250mm PCD, 6 x 8.1 on 269.9mm PCD and 6 x 8.1 on 273mm PCD
– Drive plate maximum thickness: 32mm (1.25″)
Fitted with the softer type AM high deflection element for 135Nm 100 ft lb torque, providing a maximum deflection up to 30 degrees. This type of drive plate is especially suited to workboats with slow speed applications & pleasure boats. Note that this type of damper drive plate can only be fitted to rotate in the standard direction of rotation (anti-clockwise when looking at the flywheel) with the drive plate element facing the gearbox. These damper plates are also failsafe.
If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
