Description

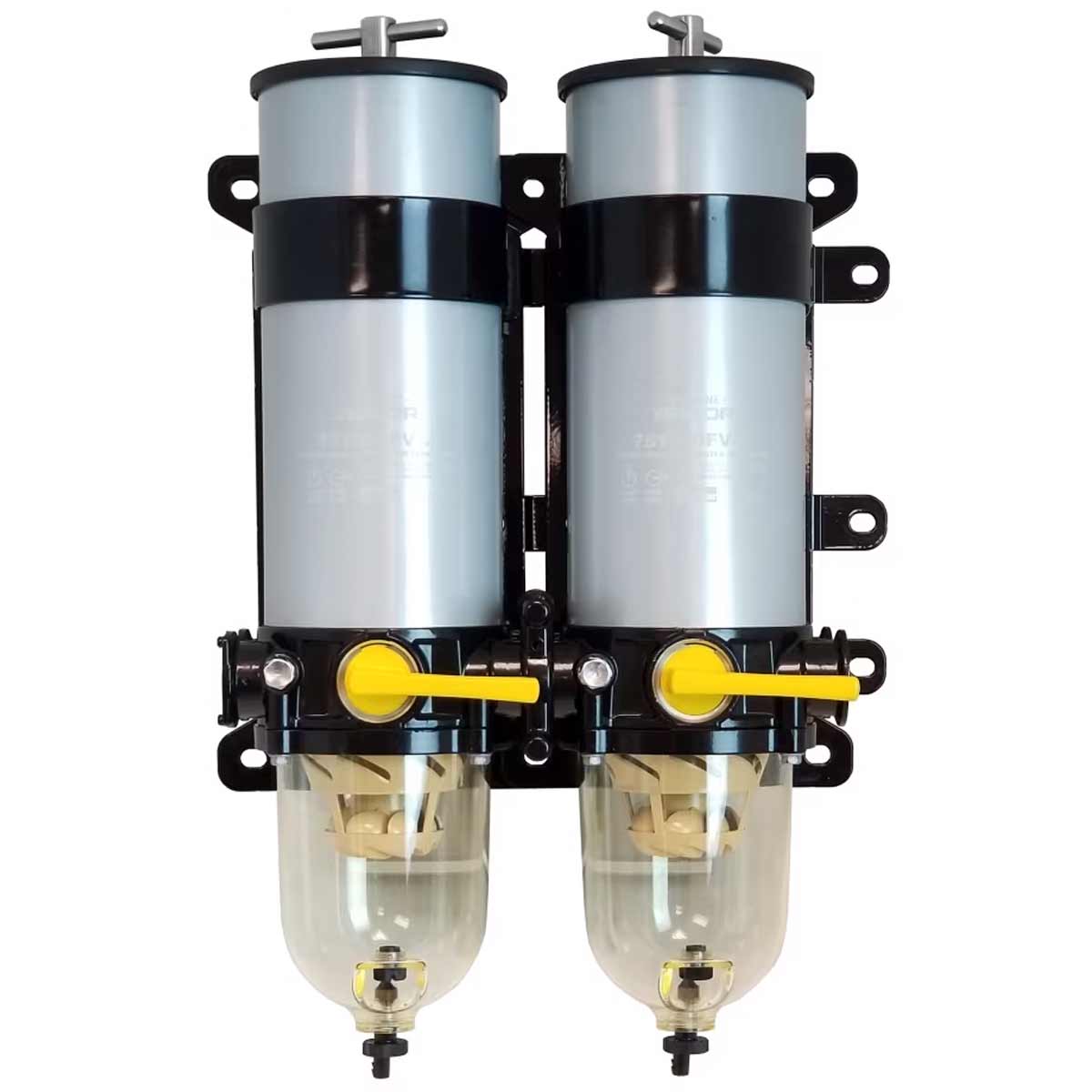

Racor 751000FV10 diesel turbine fuel filter is designed to protect your precious engine components from various contaminants such as dirt, rust, algae, asphaltenes, varnishes and water.
The Duplex multi-function valve allows filters to be used singularly or together, and allows servicing of one filter whilst the engine is running.
The Racor 75/1000FV diesel filter comes complete fitted with see-through bowls and a set of 10 micron elements. The turbine has a maximum flow rate of 1363 LPH through a port size of 7/8″-14 UNF.
Replacement Racor turbine elements (2020 series) are available to order with various micron ratings. Racor 2020 turbine elements measure 110mm diameter x 249mm high.
The Racor 75/1000FV marine turbine is designed to be fitted on the vacuum side of the fuel transfer pump for maximum efficiency. The Racor turbines work through a three stage process; Separation Coalescing & Filtration explained below.
– Stage One: Water Separation: As fuel enters into the filter assembly, it moves through the turbine centrifuge and spins off large solids and water droplets which fall to the bottom of the collection bowl.
– Stage Two: Coalescing: Small water droplets bead-up along the sides of the chamber and on the element, once heavy enough these too fall into the bottom of the collection bowl.
– Stage Three: Filtration: Algae, rust and dirt are then filtered from the fuel by the Aquabloc element, as the elements are waterproof they are much more effective and long lasting than water absorbing elements.
