Quick TMG 1000 Totem Capstan for Tender

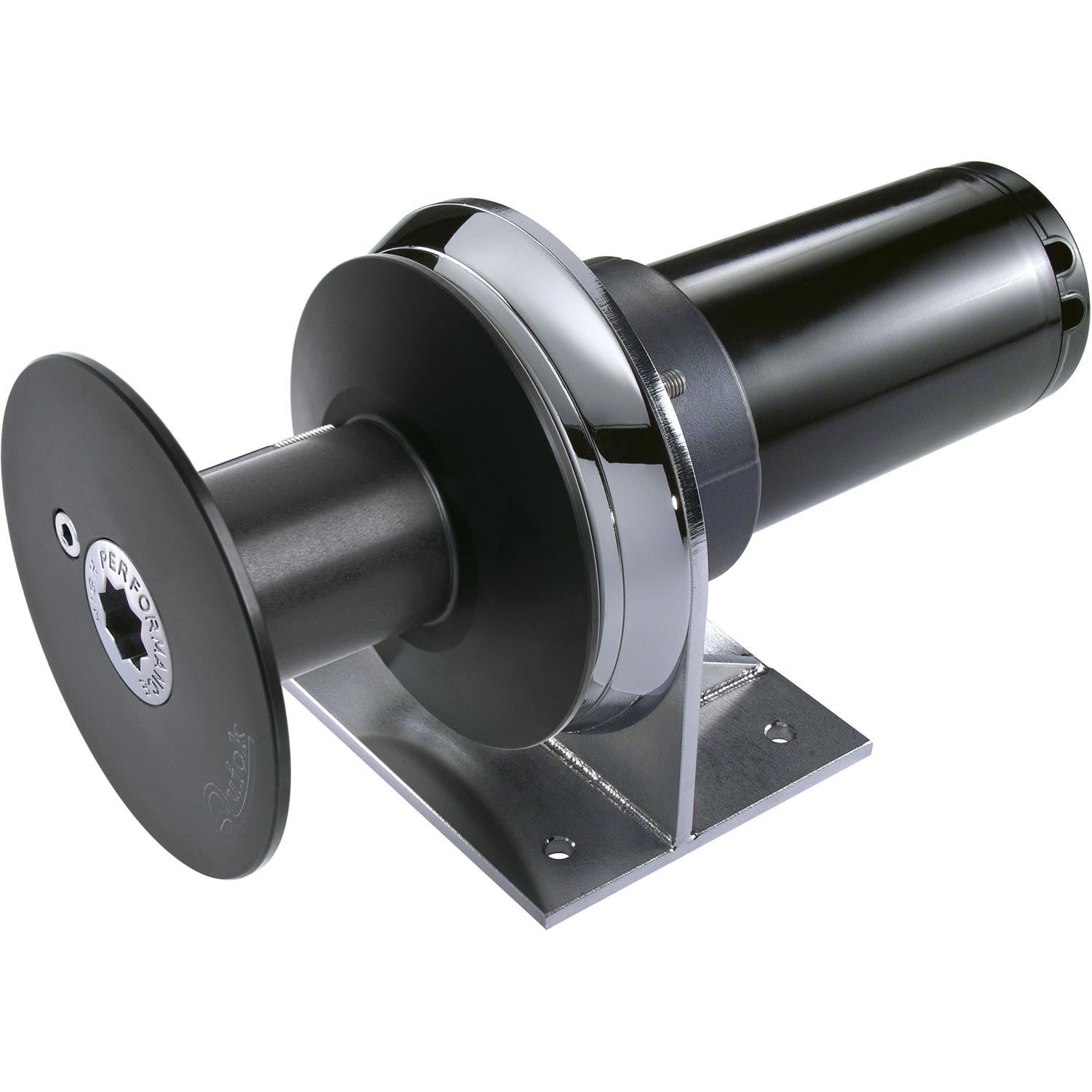

Quick TMG 1000 Totem Capstan for Tender (800W / 12V)

SKU: Q-TMG1517 MPN: FSTM1000G000A00
cancel Out of Stock
£1,742.64 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

The Quick TMG Totem G 1000 horizontal capstan winch is suitable for small boat tender. The capstan features a AISI 316 stainless steel base, making it well protected and durable. The TMG capstan features an anodised aluminium epicyclical gearbox, which provides much higher efficiency (+40%) when compared to an equivalent traditional gearbox. The Quick capstan winch features an 80mm (3-5/32″) diameter drum roller that is suitable for tender straps and rope.

Key Features

Capstan with roller for strap

AISI Stainless steel 316 base

IP66 motor watertight

Anodized aluminium epicyclical gearbox

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Quick TMG 1000 Totem Capstan for Tender (800W / 12V)
SKU: Q-TMG1517

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

The Quick TMG Totem G 1000 horizontal capstan winch is suitable for small boat tender. The capstan features a AISI 316 stainless steel base, making it well protected and durable. The TMG capstan features an anodised aluminium epicyclical gearbox, which provides much higher efficiency (+40%) when compared to an equivalent traditional gearbox. The Quick capstan winch features an 80mm (3-5/32″) diameter drum roller that is suitable for tender straps and rope.

Key Features

Capstan with roller for strap

AISI Stainless steel 316 base

IP66 motor watertight

Anodized aluminium epicyclical gearbox

Dimensions 171 × 332 × 160 cm
Material

Stainless Steel
Primary Construction

Stainless Steel
Brand

Quick
Series

Totem G TMG
Model

1000
Voltage Description

12V DC
Wattage

800W
Working Load

95kg (209.4 lb), Maximum: 290kg (639.3 lb)
Maximum Pull Load

820kg (1807.8 lb)
Maximum Chain Speed

25.8 m/min (84.6 ft/min), At Working Load: 16.8 m/min (55.1 ft/min)
Amps Description

80A at 95kg
Fuse

80A Protection Circuit Breaker
Contents

Capstan, Handle, Contactor Unit, Bolts and Screws, Drill Template, User Manual
Approvals

CE
Height Description

160mm (6-5/16")
Width

Overall: 332mm (13-3/32"), Drum Side: 129mm (5-1/16"), Non-Drum Side: 203mm (8")
Depth

171mm (6-3/4")
Diameter Description

Drum: 80mm (3-5/32"), Mounting Holes: 4x 9mm (23/64")
Thickness

Deck: 20 – 40mm (25/32" – 1-9/16")
Dimensions

Mounting Plate: 160mm x 125mm (6-5/16" x 4-15/16"), Distance Between Mounting Holes: 120mm x 85mm (4-23/32" x 3-11/32")
Size

Motor Cable: 25mm2 (AWG3)
