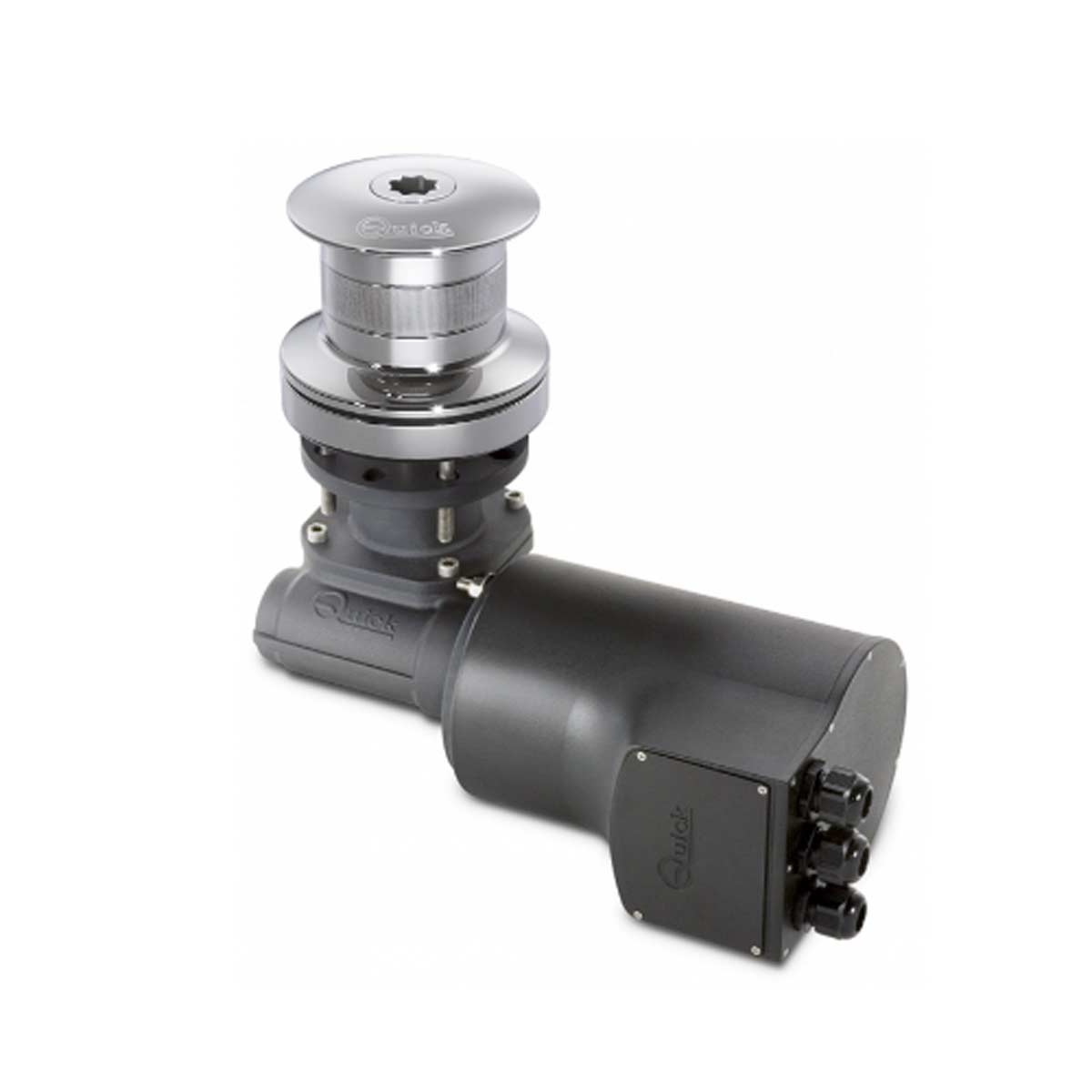

Quick TB4 Tumbler 1012 Horizontal Capstan Winch

Quick TB4 Tumbler 1012 Horizontal Capstan Winch

SKU: Q2TB41917 MPN: FSTB1024L000A00
cancel Out of Stock
£1,577.12 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

The Quick TB4 Tumbler 1012 horizontal capstan winch is suitable for boats from 14m to 18m (45 to 59ft). The capstan features a AISI 316 stainless steel base and drum (INOX steel) with an anodised aluminium gearbox and an IP67 watertight motor, making it well protected and durable. Supplied with a nylon handle control, anchoring has never been easier. The Quick capstan winch features a 142mm (5″ – 19/32) diameter drum which is suitable for rope. This unit comes equipped with an IP67 watertight motor.

Key Features

Warping Winch

AISI Stainless steel 316 base and drum

IP67 Motor watertight

Anodised aluminium gearbox

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Quick TB4 Tumbler 1012 Horizontal Capstan Winch
SKU: Q2TB41917

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

The Quick TB4 Tumbler 1012 horizontal capstan winch is suitable for boats from 14m to 18m (45 to 59ft). The capstan features a AISI 316 stainless steel base and drum (INOX steel) with an anodised aluminium gearbox and an IP67 watertight motor, making it well protected and durable. Supplied with a nylon handle control, anchoring has never been easier. The Quick capstan winch features a 142mm (5″ – 19/32) diameter drum which is suitable for rope. This unit comes equipped with an IP67 watertight motor.

Key Features

Warping Winch

AISI Stainless steel 316 base and drum

IP67 Motor watertight

Anodised aluminium gearbox

Weight 17.3 kg
Dimensions 290.4 × 161.5 × 385 cm
Material

Stainless Steel
Primary Construction

Stainless Steel
Brand

Quick
Model

The Quick TB4 Tumbler 1012
Colour

Black and Silver
Voltage Description

12V DC
Wattage

1000W
Working Load

370kg / 816lb
Maximum Pull Load

1000kg (2205 lb)
Maximum Chain Speed

25m/min (82ft/min), At working load: 17.5m/min (57ft/min)
Amps Description

140A
Contents

Capstan, Handle, Contactor Unit, Bolts and Screws, Drill Template, User Manual
Height Description

385mm (15 – 5/32)
Width

161.5mm (6 – 23/64)
Depth

290.4mm (6 – 45/64)
Weight

17.3kg / 38.1lb
Diameter Description

Drum: 142mm / 5" 19/32
Thickness

25 – 50mm (31/32" – 1" 31/32)
Mounting Description

Horizontal mount
