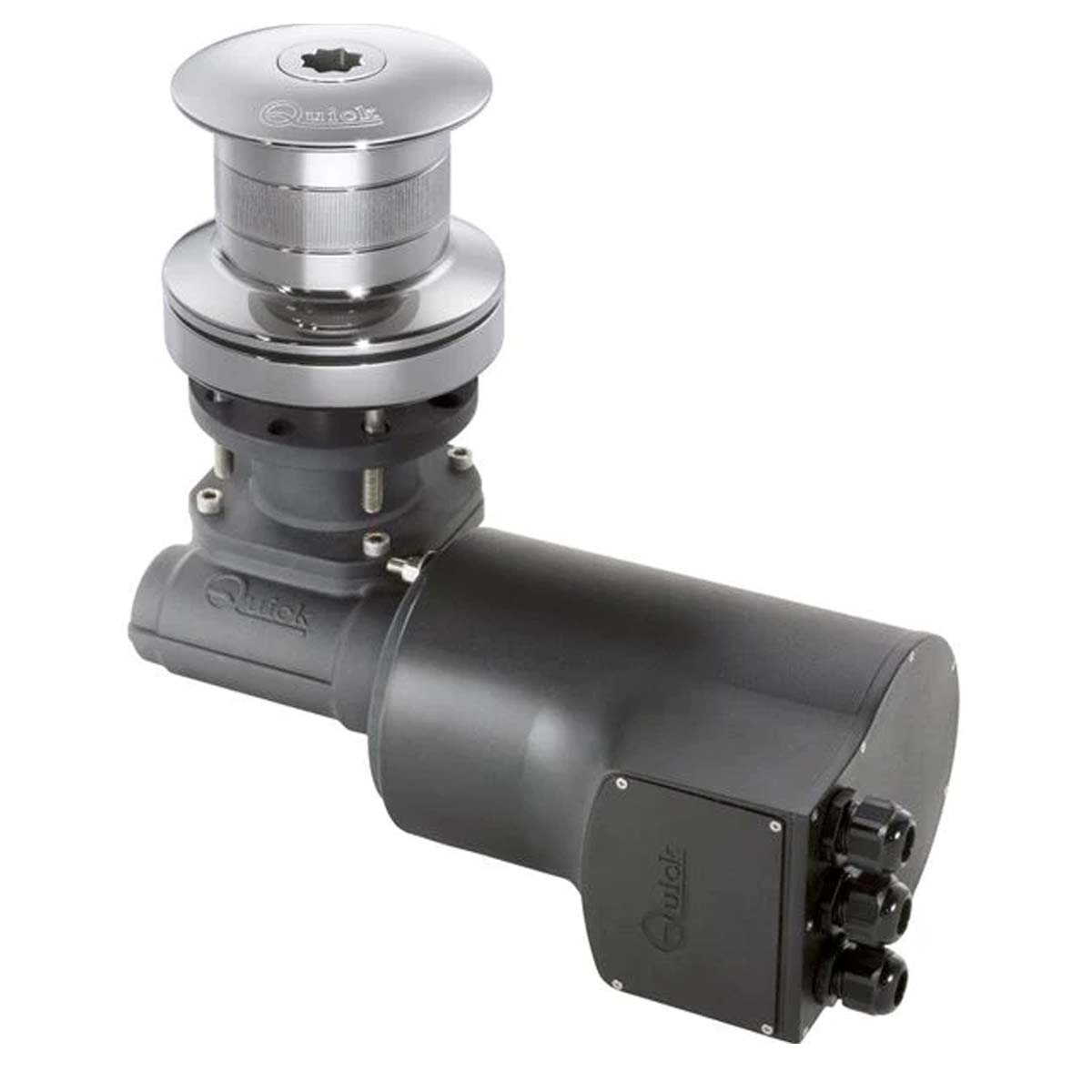

Quick TB3 Tumbler 1012 Vertical Capstan Winch

Quick TB3 Tumbler 1012 Vertical Capstan Winch

SKU: Q2TB31917 MPN: FSTB1012L000A00
cancel Out of Stock
£1,550.04 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

The Quick TB3 Tumbler 1012 vertical capstan winch is suitable for boats from 10m to 13m (32 to 42ft). The capstan features a AISI 316 stainless steel base and drum (INOX steel) with an anodised aluminium gearbox, making it well protected and durable. Supplied with a nylon handle control, anchoring has never been easier. The Quick capstan winch features a 130mm (5 – 1/8″) diameter drum which is suitable for rope.

Key Features

Warping Winch

AISI Stainless steel 316 base and drum

IP67 Motor watertight

Anodised aluminium gearbox

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Quick TB3 Tumbler 1012 Vertical Capstan Winch
SKU: Q2TB31917

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

The Quick TB3 Tumbler 1012 vertical capstan winch is suitable for boats from 10m to 13m (32 to 42ft). The capstan features a AISI 316 stainless steel base and drum (INOX steel) with an anodised aluminium gearbox, making it well protected and durable. Supplied with a nylon handle control, anchoring has never been easier. The Quick capstan winch features a 130mm (5 – 1/8″) diameter drum which is suitable for rope.

Key Features

Warping Winch

AISI Stainless steel 316 base and drum

IP67 Motor watertight

Anodised aluminium gearbox

Dimensions 206.5 × 350 × 268.4 cm
Material

Stainless Steel
Primary Construction

Stainless Steel
Brand

Quick
Model

Quick TB3 Tumbler 1012
Colour

Black and Silver
Voltage Description

12V DC
Wattage

1000W
Working Load

120kg (265lb), Maximum: 370kg (816lb)
Maximum Pull Load

1000kg (2205 lb)
Maximum Chain Speed

25m/min (82ft/min), At Working Load: 16.5m/min (54ft/min)
Amps Description

140A at 120kg
Fuse

80A Protection Circuit Breaker
Contents

Capstan, Handle, Contactor Unit, Bolts and Screws, Drill Template, User Manual
Height Description

Overall: 268.4mm (10 – 37/64"), Above Deck: 113mm (4 – 29/64"), Below Deck: 155.4mm (6 – 1/8")
Width

350mm (13 – 25/32")
Depth

206.5mm (8 – 1/8")
Diameter Description

Drum: 130mm (5 – 1/8"), Cut Out: 65mm (2 – 35/64"), Mounting Holes: 4 x 9mm (23/64")
Thickness

25mm – 50mm (31/32" – 1-31/32")
Size

Motor Cable: 35mm2 (AWG2)
Mounting Description

Vertical Mount
