Quick PTG350 Capstan

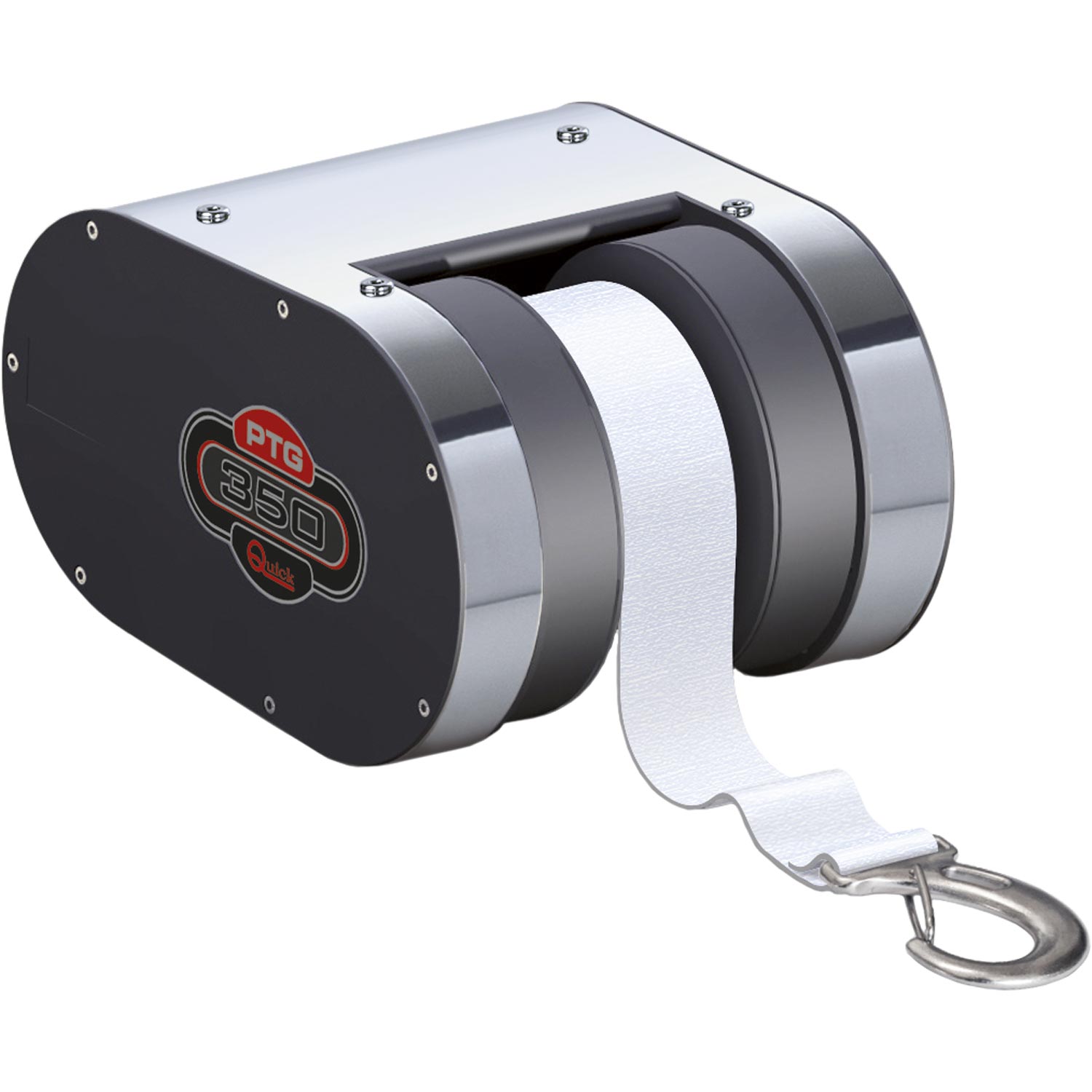

Quick PTG350 Capstan with Strap Roller (Horizontal / 150W / 12V)

SKU: Q-PTG0117 MPN: FSPT0350G000A00
cancel Out of Stock
£1,633.88 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

The Quick PT Pontoon 350G horizontal capstan winch is suitable for weighing anchor onboard pontoon or boats where space is limited, as well as being used as a fishing capstan or to lift the tender onboard a yacht. The capstan features an AISI 316 stainless steel and anodised aluminium construction, making it well protected and durable. The PT 350g capstan is easy to install above or below the deck and can retrieve a strap measuring 48mm wide by 7.5 metres long.

Key Features

Capstan with roller for strap

AISI 316 stainless steel and anodized aluminium

Multi-purpose capstan

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Quick PTG350 Capstan with Strap Roller (Horizontal / 150W / 12V)
SKU: Q-PTG0117

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

The Quick PT Pontoon 350G horizontal capstan winch is suitable for weighing anchor onboard pontoon or boats where space is limited, as well as being used as a fishing capstan or to lift the tender onboard a yacht. The capstan features an AISI 316 stainless steel and anodised aluminium construction, making it well protected and durable. The PT 350g capstan is easy to install above or below the deck and can retrieve a strap measuring 48mm wide by 7.5 metres long.

Key Features

Capstan with roller for strap

AISI 316 stainless steel and anodized aluminium

Multi-purpose capstan

Dimensions 294 × 220 × 173 cm
Material

Stainless Steel
Primary Construction

Stainless Steel
Brand

Quick
Series

Pontoon – PT
Model

350 G
Voltage Description

12V DC
Wattage

150W
Working Load

40kg (88 lb), Maximum: 100kg (220 lb)
Maximum Pull Load

260kg (573 lb)
Maximum Chain Speed

20.8 m/min (68.2 ft/min), At Working Load: 19.3 m/min (63.3 ft/min)
Amps Description

12A at 40kg
Fuse

15A Protection Circuit Breaker
Contents

Capstan, Contactor Unit, Bolts and Screws, Drill Template, User Manual
Approvals

CE
Height Description

173mm (6-13/16")
Width

220mm (8-43/64")
Depth

294mm (11-37/64")
Diameter Description

Mounting Holes: 4x 9mm (23/64")
Thickness

Deck: 20mm – 40mm (3/4" – 1-9/16")
Dimensions

Distance Between Mounting Holes: 160mm x 105.5mm (6-19/64" x 4-5/32")
Size

Motor Cable: 10mm2 (AWG7)
