Description

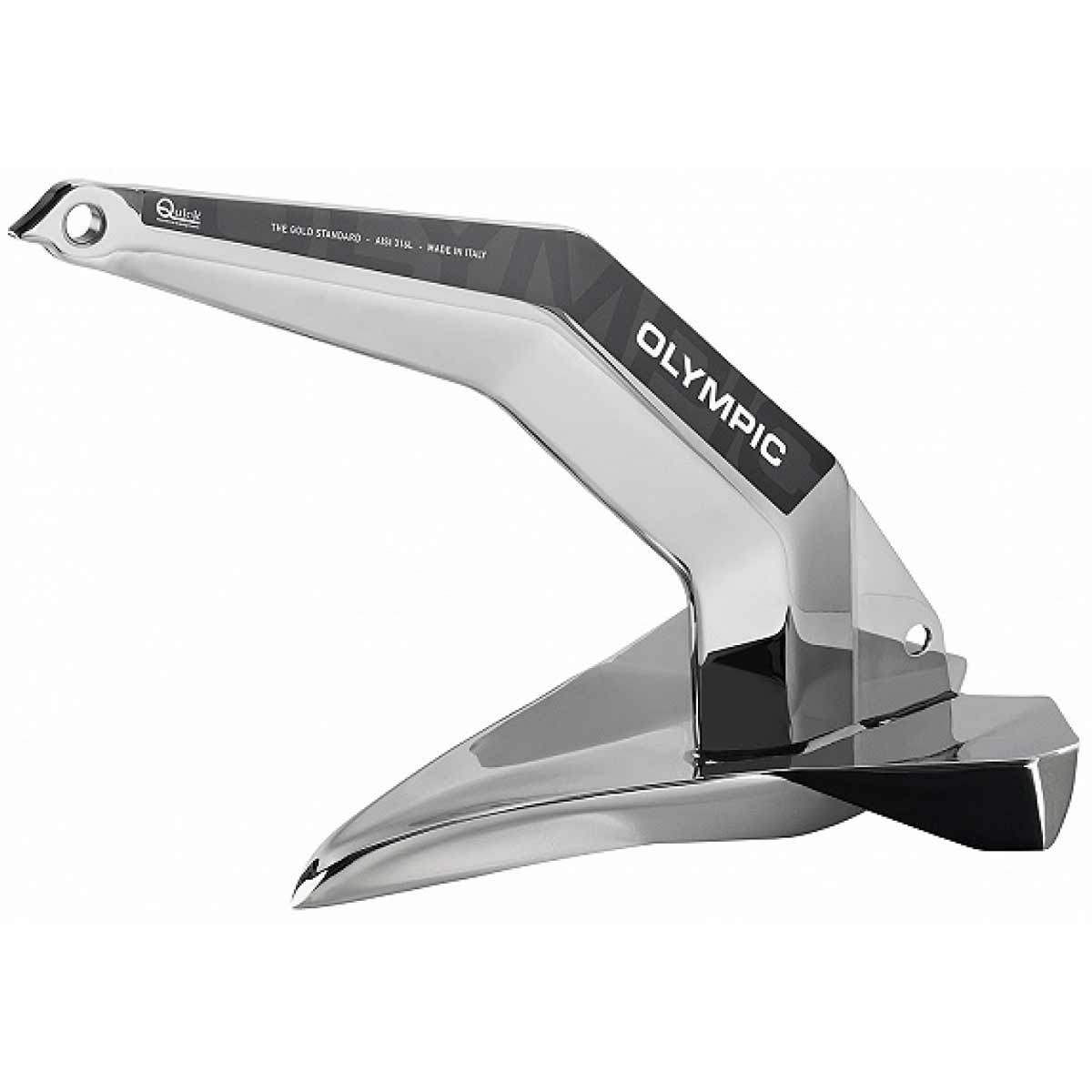

Quick Olympic anchor 7kg in polished stainless steel with a plough-shaped arm.
Anchor Specs:
• Weight: 7kg (20 lb)
• Recommended chain size: 6mm (1/4″)
• Boat length*: 6 meters (20 ft)
• Boat weight*: 1.8 tons (2 US tons)
• Material: AISI 316 Stainless steel with a polished finish
*NOTE: The indication may vary according to the boat type and the anchor-rode type.
Dimensions (see image for reference):
A: 302mm (11-57/64″)
B: 504mm (19-27/32″)
C: 15mm (19/32″)
D: 12mm (15/32″)
E: 410mm (16-9/64″)
F: 355mm (13-31/32″)
G: 205mm (8-5/64″)
H: 172mm (6-49/36″)
I: 234mm (9-7/32″)
The Quick Olympic swivel is available as an optional extra, see part number: Q-OS10S.
Key Features
Detailed engineering & production process
Sheet metal forming, subsequently soldered
Polished AISI 316 Stainless steel
