Quick Olympic Plow Anchor

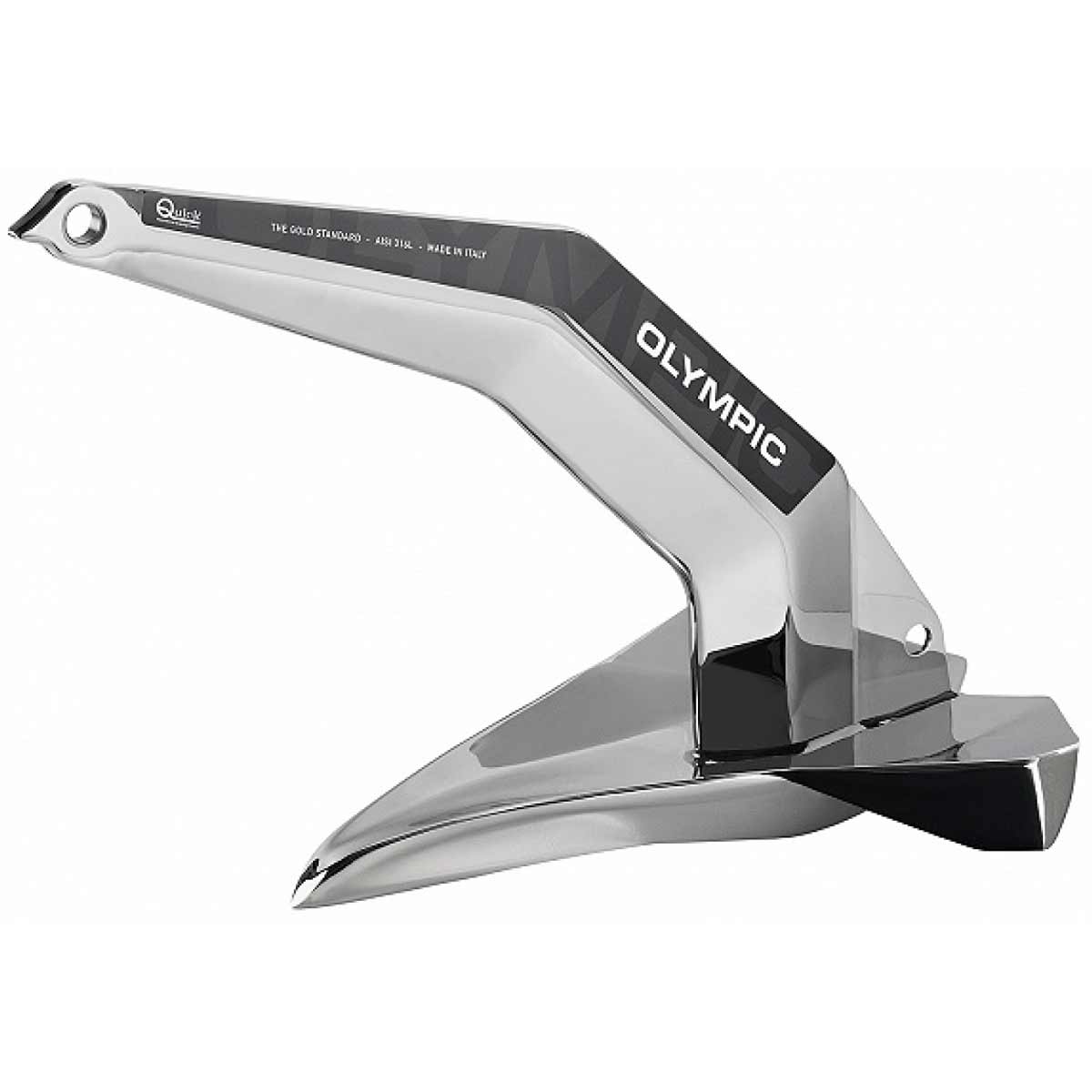

Quick Olympic Plow Anchor (34kg / Polished Stainless Steel AISI 316)

SKU: Q-ANCOLY34S MPN: FYANLY034XP0A00
cancel Out of Stock
£2,990.65 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

Quick Olympic anchor 34kg in polished stainless steel with a plough-shaped arm.

Anchor Specs:

• Weight: 34kg (75 lb)

• Recommended chain size: 10mm (3/8″)

• Boat length*: 15 meters (49 ft)

• Boat weight*: 21 tons (23.1 US tons)

• Material: AISI 316 Stainless steel with a polished finish

*NOTE: The indication may vary according to the boat type and the anchor-rode type.

Dimensions (see image for reference):

A: 491mm (19-21/64″)

B: 827mm (32-9/16″)

C: 20mm (25/32″)

D: 23mm (29/32″)

E: 669mm (26-11/32″)

F: 578.3mm (22-49/64″)

G: 340mm (13-25/64″)

H: 284mm (11-3/16″)

I: 384mm (15-1/8″)

The Quick Olympic swivel is available as an optional extra, see part number: Q-OS34S.

Key Features

Detailed engineering & production process

Sheet metal forming, subsequently soldered

Polished AISI 316 Stainless steel

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Quick Olympic Plow Anchor (34kg / Polished Stainless Steel AISI 316)
SKU: Q-ANCOLY34S

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

Quick Olympic anchor 34kg in polished stainless steel with a plough-shaped arm.

Anchor Specs:

• Weight: 34kg (75 lb)

• Recommended chain size: 10mm (3/8″)

• Boat length*: 15 meters (49 ft)

• Boat weight*: 21 tons (23.1 US tons)

• Material: AISI 316 Stainless steel with a polished finish

*NOTE: The indication may vary according to the boat type and the anchor-rode type.

Dimensions (see image for reference):

A: 491mm (19-21/64″)

B: 827mm (32-9/16″)

C: 20mm (25/32″)

D: 23mm (29/32″)

E: 669mm (26-11/32″)

F: 578.3mm (22-49/64″)

G: 340mm (13-25/64″)

H: 284mm (11-3/16″)

I: 384mm (15-1/8″)

The Quick Olympic swivel is available as an optional extra, see part number: Q-OS34S.

Key Features

Detailed engineering & production process

Sheet metal forming, subsequently soldered

Polished AISI 316 Stainless steel

Weight 34 kg
Material

Polished Stainless Steel AISI 316
Primary Construction

Stainless Steel 316
Boat Size

Up to 15 metres in length
Brand

Quick
Weight

34kg
Country of Origin

Italy
