Quick HC3 712A Aluminium Windlass

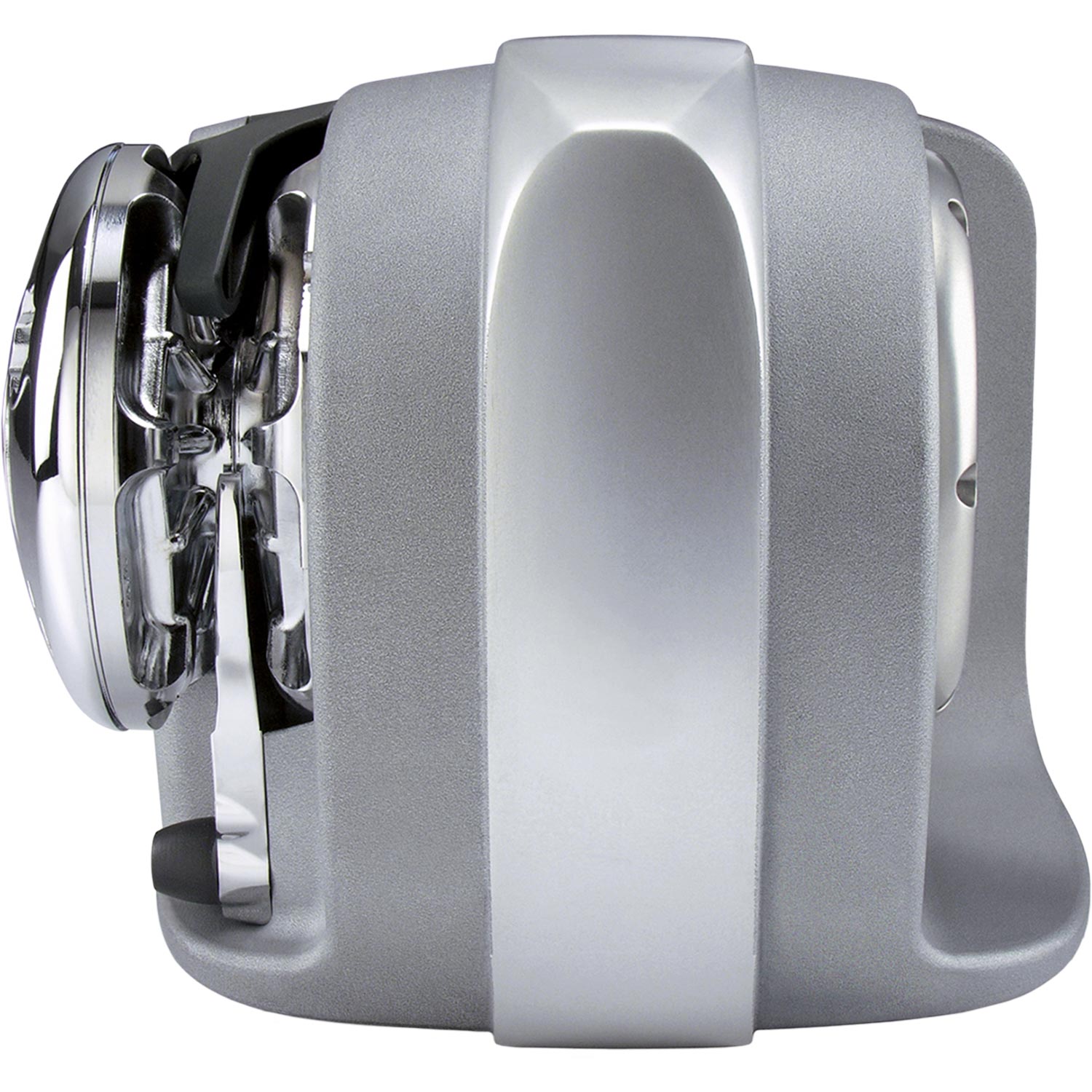

Quick HC3 712A Aluminium Windlass Gypsy Only (700W / 12V / 10mm)

SKU: Q-HC3A131104 MPN: FSHC07120010B00
cancel Out of Stock
£1,901.78 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

The Quick HC3 Hector 712A horizontal windlass is suitable for boats from 7m to 10m (23 to 33ft). The on-deck windlass is easy to install with an anodised Aluminium base and jacket, making it well protected and durable. Supplied with pressure lever control and a built-in manual emergency recovery system, anchoring has never been easier. The Quick windlass features a 10mm (3/8″) gypsy which is suitable for 10mm ISO and 3/8″ G4 chain, as well as 5/8″ (15.8mm) rope.

Key Features

Horizontal on-deck windlass

Jacket in aluminium anodised in hard oxide

Rope and chain on a single gypsy

Integrated sensor and magnet for chain counter

Supplied with pressure lever

Integrated solenoids unit

Emergency manual lift system

Manual Free-Fall system

IP66 watertight motor

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Quick HC3 712A Aluminium Windlass Gypsy Only (700W / 12V / 10mm)
SKU: Q-HC3A131104

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

The Quick HC3 Hector 712A horizontal windlass is suitable for boats from 7m to 10m (23 to 33ft). The on-deck windlass is easy to install with an anodised Aluminium base and jacket, making it well protected and durable. Supplied with pressure lever control and a built-in manual emergency recovery system, anchoring has never been easier. The Quick windlass features a 10mm (3/8″) gypsy which is suitable for 10mm ISO and 3/8″ G4 chain, as well as 5/8″ (15.8mm) rope.

Key Features

Horizontal on-deck windlass

Jacket in aluminium anodised in hard oxide

Rope and chain on a single gypsy

Integrated sensor and magnet for chain counter

Supplied with pressure lever

Integrated solenoids unit

Emergency manual lift system

Manual Free-Fall system

IP66 watertight motor

Dimensions 373 × 250 × 213 cm
Material

Aluminium
Primary Construction

Aluminium
Suitable For

Chain and Rope
Boat Size

7 to 10 metres in length
Gypsy Size

10mm
Brand

Quick
Series

Hector HC3
Model

712A
Voltage Description

12V DC
Wattage

700W
Working Load

100kg (220.5 lb), Maximum: 300kg (661.4 lb)
Maximum Pull Load

1100kg (2425 lb)
Maximum Chain Speed

27.4 m/min (89.9 ft/min), At Working Load: 14.0 m/min (45.9 ft/min)
Amps Description

90A at 100kg
Fuse

60A Protection Circuit Breaker
Contents

Windlass, Handle, Bolts and Screws, Drill Template, User Manual
Approvals

CE
Height Description

213mm (8-3/8")
Width

250mm (9-27/32")
Depth

373mm (14-11/16")
Diameter Description

Mounting Holes: 11mm (7/16")
Thickness

Deck: 20mm – 60mm (25/32" – 2-11/32")
Size

Motor Cable: 25mm2 (AWG3)
