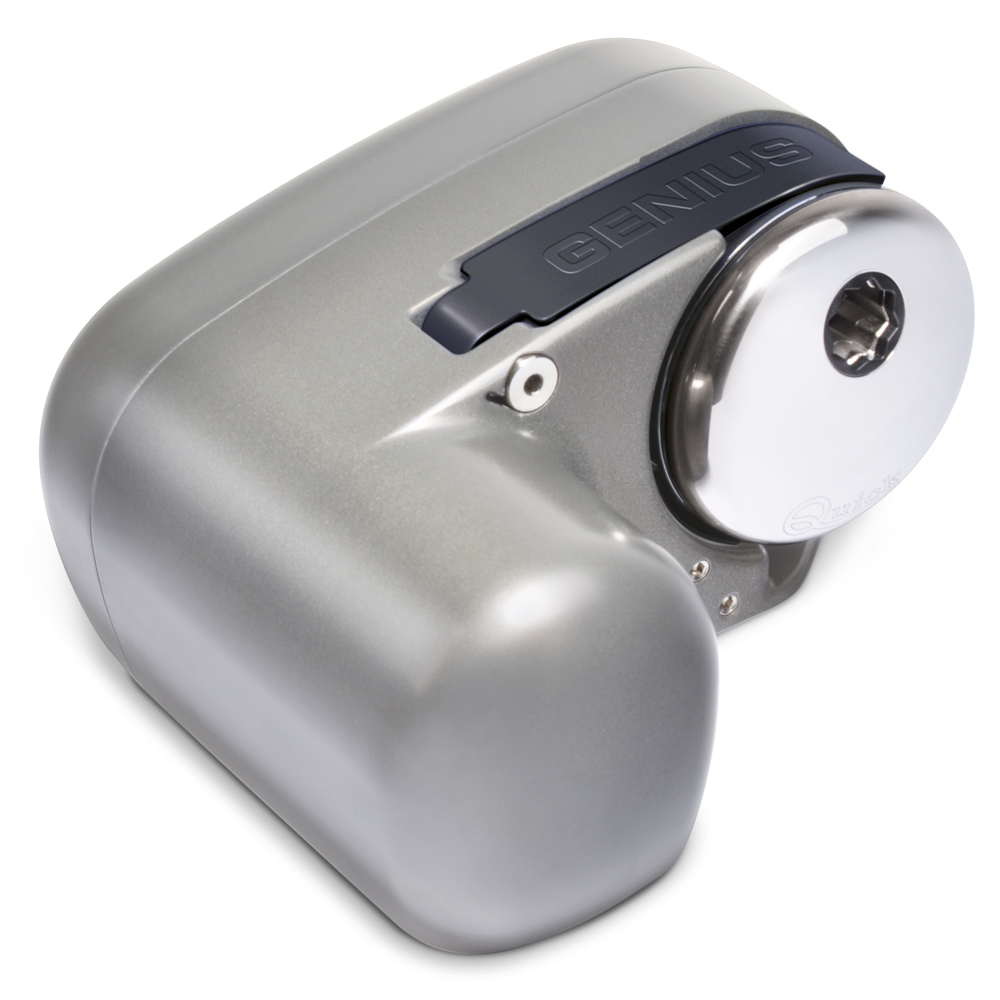

Quick GP2 500 Windlass

Quick GP2 500 Windlass Gypsy Only (150W / 12V / 8mm)

SKU: Q-GP2011103 MPN: FSGM01500008A00
cancel Out of Stock
£931.19 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

The Quick GP2 500 horizontal on-deck windlass is suitable for boats from 6-8 meters (20 -26 ft) and is supplied with a 12V T6411-12 contactor unit and a lever for the windlass as standard.

This particular model has a white composite material base and features an 8mm gypsy which is suitable for 8mm DIN 766, 8mm ISO and 5/16″ G4 chain, as well as 1/2″ (12.7mm) rope. (PLEASE NOTE these values refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system).

Product contents include the windlass (on deck unit and motor gearbox), contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user’s manual and conditions of warranty.

Key Features

Horizontal on-deck windlass

White composite material base

Rope and chain on a single gypsy

Integrated sensor and magnet for chain counter

Supplied with pressure lever

IP66 watertight motor

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Quick GP2 500 Windlass Gypsy Only (150W / 12V / 8mm)
SKU: Q-GP2011103

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

The Quick GP2 500 horizontal on-deck windlass is suitable for boats from 6-8 meters (20 -26 ft) and is supplied with a 12V T6411-12 contactor unit and a lever for the windlass as standard.

This particular model has a white composite material base and features an 8mm gypsy which is suitable for 8mm DIN 766, 8mm ISO and 5/16″ G4 chain, as well as 1/2″ (12.7mm) rope. (PLEASE NOTE these values refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system).

Product contents include the windlass (on deck unit and motor gearbox), contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user’s manual and conditions of warranty.

Key Features

Horizontal on-deck windlass

White composite material base

Rope and chain on a single gypsy

Integrated sensor and magnet for chain counter

Supplied with pressure lever

IP66 watertight motor

Weight 6 kg
Dimensions 213 × 184 × 129 cm
Material

Composite
Primary Construction

Composite
Suitable For

Chain and Rope
Boat Size

6 to 8 metres in length
Gypsy Size

8mm
Brand

Quick
Series

Genius
Model

GP2 500
Voltage Description

12V DC
Wattage

150W
Working Load

35kg (77 lb)
Maximum Pull Load

220kg (485 lb)
Maximum Chain Speed

38.9mm (83.7 ft/min) At Working Load: 28.5mm (33.8 ft/min)
Amps Description

29A at 35kg
Fuse

40A Protection Circuit Breaker
Contents

Windlass, reversing contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user’s manual and conditions of warranty.
Approvals

CE
Height Description

129mm (5-3/32")
Width

184mm (7-17/64")
Depth

213mm (8-23/64)
Weight

6kg (22.4 lb)
Diameter Description

Mounting Holes: 9mm (3/8")
Thickness

Deck: 20mm – 40 mm (3/4” – 1” 9/16)
Size

Motor Cable: 4mm2 (AWG 12)
