Quick GP2 2000 Windlass

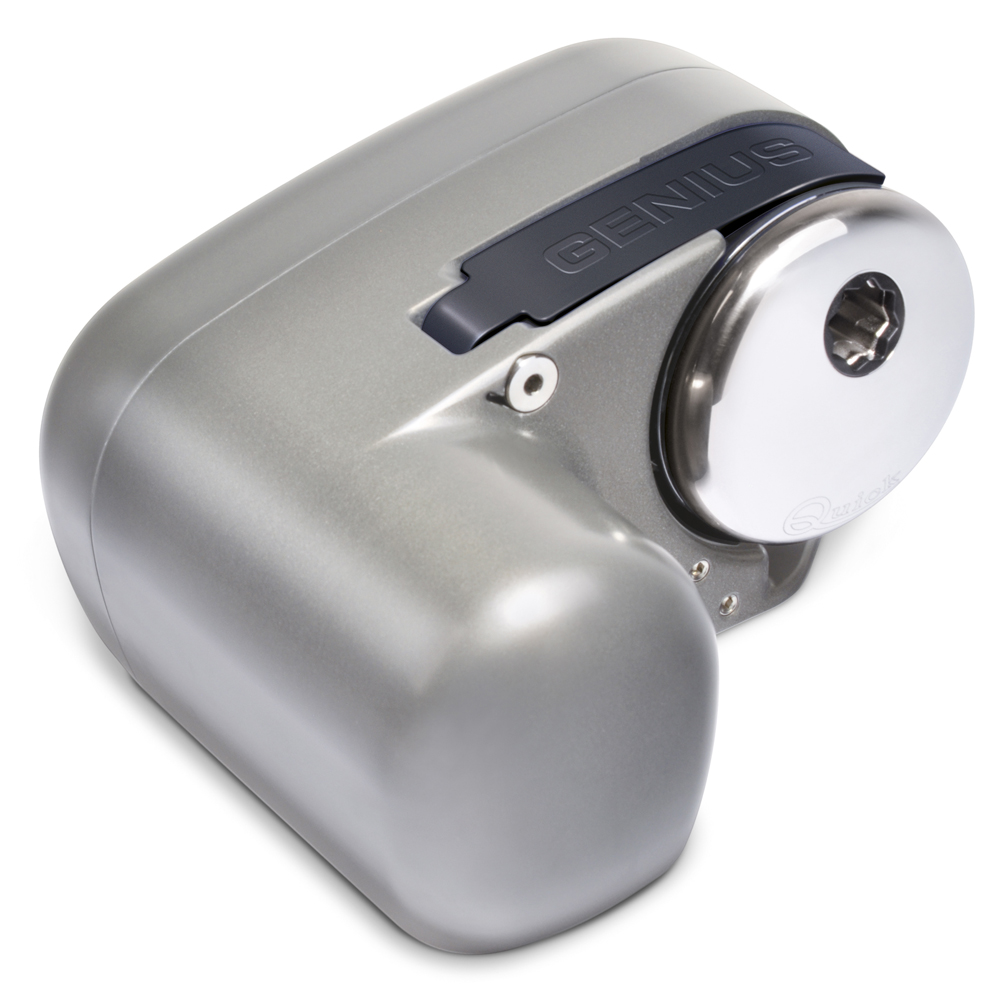

Quick GP2 2000 Windlass Gypsy Only (800W / 24V / 6mm)

SKU: Q-GP2153101 MPN: FSGP22024006A00
cancel Out of Stock
£1,434.23 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

The Quick GP2 2000 horizontal on-deck windlass is suitable for boats from 8-13 meters (26-43 ft) and is supplied with a 24V T6415-24 contactor unit and a lever for the windlass as standard. To ensure durability and top performance, the windlass has an anodized aluminium in hard oxide base and an epicyclical gearbox that provides much higher efficiency (+40% compared to equivalent traditional gearboxes).

This windlass has a 6mm gypsy which is suitable for 6mm DIN 766 and 6mm ISO chain, as well as 1/2″ (12.7mm) rope. (PLEASE NOTE these values refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system).

Product contents include the windlass (on deck unit and motor gearbox), contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user’s manual and conditions of warranty.

Key Features

Horizontal on-deck windlass

Anodized alluminium in hard oxide base

Rope and chain on a single gypsy

Integrated sensor and magnet for chain counter

Supplied with pressure lever

IP66 watertight motor

Epicyclical gearbox

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Quick GP2 2000 Windlass Gypsy Only (800W / 24V / 6mm)
SKU: Q-GP2153101

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

The Quick GP2 2000 horizontal on-deck windlass is suitable for boats from 8-13 meters (26-43 ft) and is supplied with a 24V T6415-24 contactor unit and a lever for the windlass as standard. To ensure durability and top performance, the windlass has an anodized aluminium in hard oxide base and an epicyclical gearbox that provides much higher efficiency (+40% compared to equivalent traditional gearboxes).

This windlass has a 6mm gypsy which is suitable for 6mm DIN 766 and 6mm ISO chain, as well as 1/2″ (12.7mm) rope. (PLEASE NOTE these values refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system).

Product contents include the windlass (on deck unit and motor gearbox), contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user’s manual and conditions of warranty.

Key Features

Horizontal on-deck windlass

Anodized alluminium in hard oxide base

Rope and chain on a single gypsy

Integrated sensor and magnet for chain counter

Supplied with pressure lever

IP66 watertight motor

Epicyclical gearbox

Weight 10.2 kg
Dimensions 249 × 217 × 135 cm
Material

Aluminium
Primary Construction

Aluminium
Suitable For

Chain and Rope
Boat Size

8 to 13 metres in length
Gypsy Size

6mm
Brand

Quick
Series

Genius
Model

GP2 2000
Voltage Description

24V DC
Wattage

800W
Working Load

120kg (265 lb)
Maximum Pull Load

900kg (1984 lb)
Maximum Chain Speed

29.6mm (97.1 ft/min) At Working Load: 20.1mm (65.9 ft/min)
Amps Description

50A at 120kg
Fuse

40A Protection Circuit Breaker
Contents

Windlass, reversing contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user’s manual and conditions of warranty.
Approvals

CE
Height Description

135mm (5-5/16")
Width

217mm (7-31/32")
Depth

249mm (9-25/32)
Weight

10.2kg (22.4 lb)
Thickness

Deck: 20mm – 40 mm (3/4” – 1” 9/16)
Size

Motor Cable: 10mm2 (AWG 7)
