Quick DP3 1524 Windlass Kit

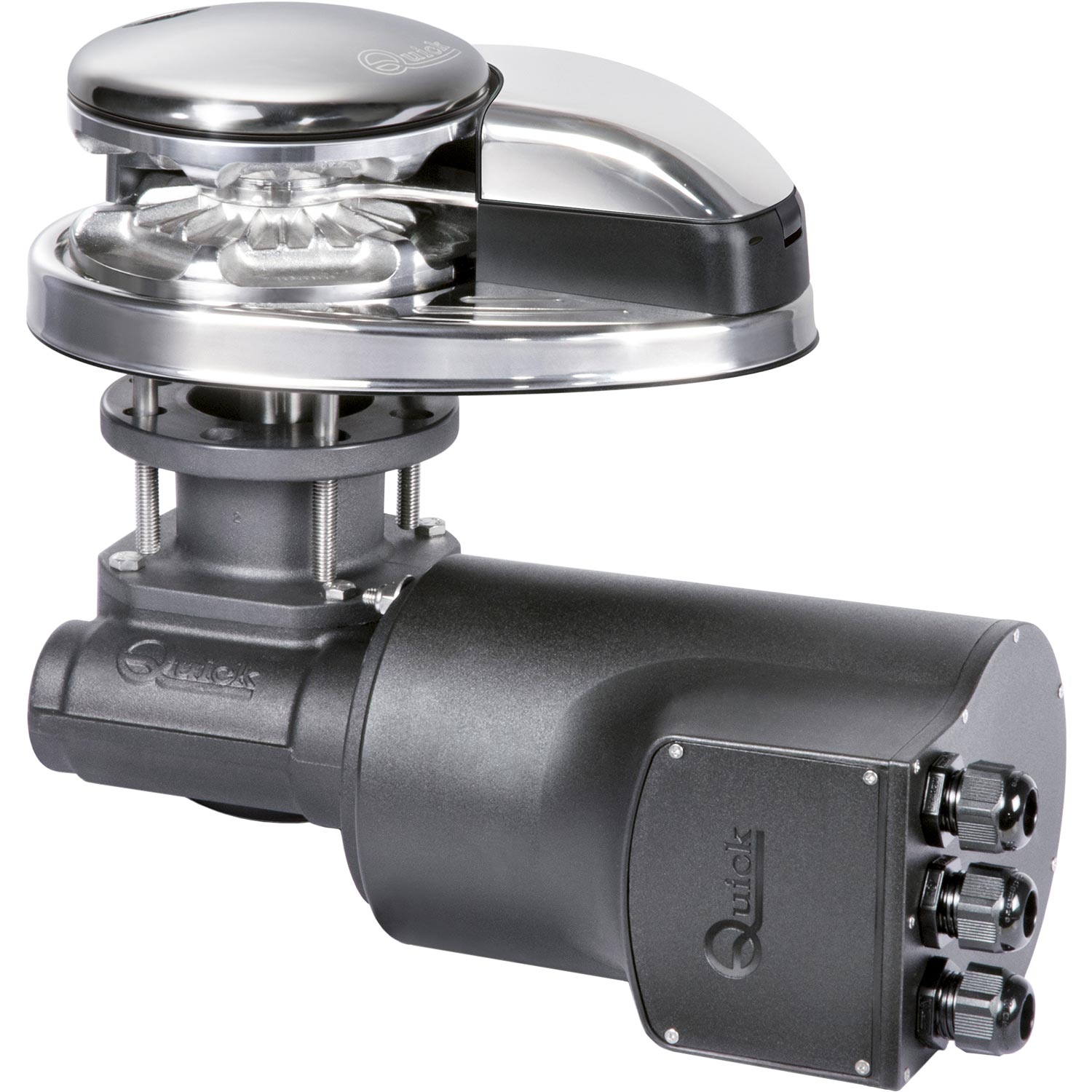

Quick DP3 1524 Windlass Kit (10mm / 24V)

SKU: Q-DP3253104K MPN: FSDP31524010A05
check_circle In Stock - Ready to Ship
£1,367.51 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

The Quick DP3 Prince 1524 vertical windlass is suitable for boats from 10m to 14m (33 to 46ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 10mm (3/8″) gypsy which is suitable for 10mm ISO chain and a 5/8″ rope. This is the kit version of the 1524, this kit includes a contactor unit, nylon handle, foot switch and a hydraulic magnetic circuit breaker.

Read Full Description arrow_downward
anchor

1 in stock

Need more? Request a custom quote for larger quantities

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

The Quick DP3 Prince 1524 vertical windlass is suitable for boats from 10m to 14m (33 to 46ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 10mm (3/8″) gypsy which is suitable for 10mm ISO chain and a 5/8″ rope. This is the kit version of the 1524, this kit includes a contactor unit, nylon handle, foot switch and a hydraulic magnetic circuit breaker.

Dimensions 253.5 × 385 × 269.4 cm
Material

Stainless Steel
Primary Construction

Stainless Steel
Suitable For

Chain and Rope
Boat Size

10 to 14 metres in length
Gypsy Size

10mm
Brand

Quick
Series

Prince DP3
Model

1524
Voltage Description

24V DC
Wattage

Motor Power: 1500W
Working Load

180kg (397 lb), Maximum: 540kg (1190 lb)
Maximum Pull Load

1100kg (2425 lb)
Maximum Chain Speed

29.7 m/min (97.4 ft/min), At Working Load: 19.0 m/min (62.3 ft/min)
Amps Description

Current Absorbtion At Working Load: 85A
Fuse

50A Protection Circuit Breaker
Contents

Contactor Units, Nylon Handle, Foot Switch, Hydraulic Magnetic Circuit Breaker, Drilling Template, User Manual
Height Description

269.4mm (10-39/64")
Width

385mm (15-5/32")
Depth

253.5mm (9-63/64")
Size

Motor Cable: 25mm2 (AWG3)
