Prices exclude VAT. Trade pricing available on request.

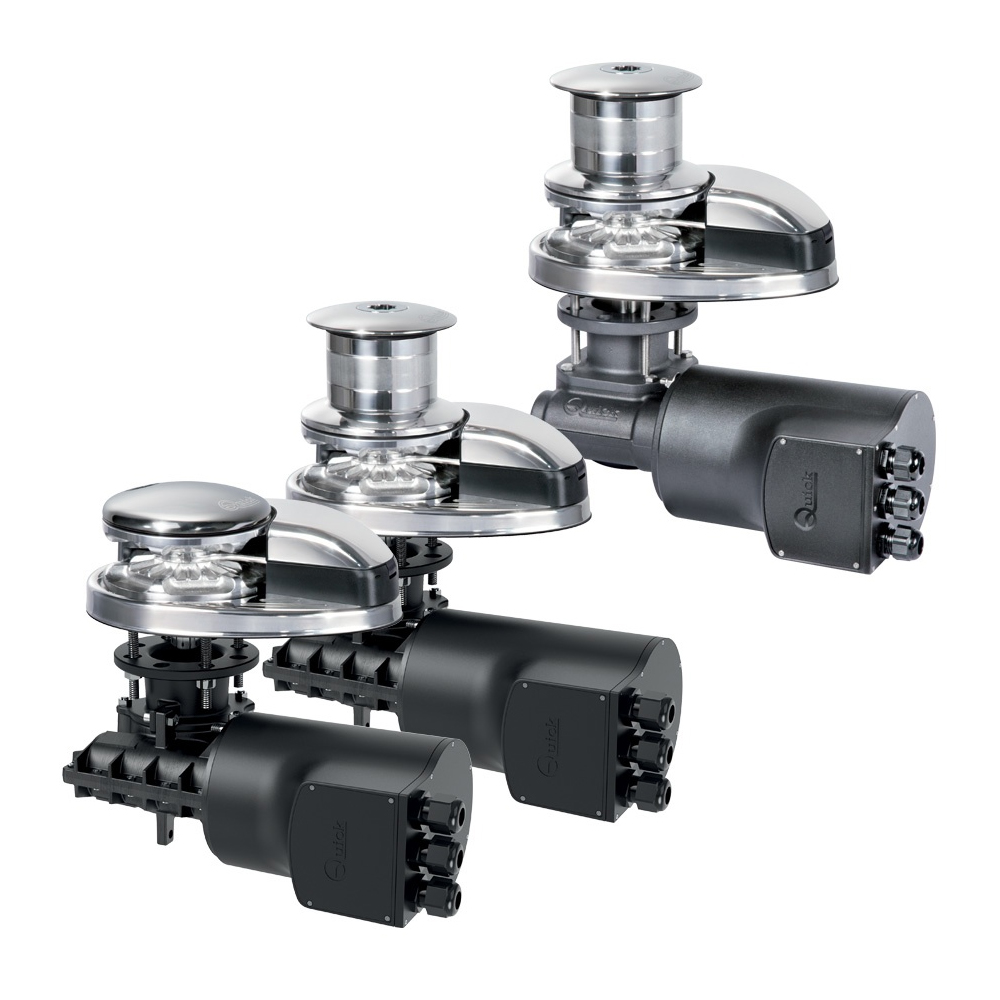

The Quick DP3 Prince 1024 vertical windlass is suitable for boats from 10m to 14m (33 to 46ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 10mm (3/8″) gypsy which is suitable for 10mm ISO chain and a 5/8″ rope.
1 in stock
Need more? Request a custom quote for larger quantities
The Quick DP3 Prince 1024 vertical windlass is suitable for boats from 10m to 14m (33 to 46ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 10mm (3/8″) gypsy which is suitable for 10mm ISO chain and a 5/8″ rope.
| Weight | 19.4 kg |
|---|---|
| Dimensions | 233.5 × 254.4 cm |
| Material | Stainless Steel |
| Primary Construction | Stainless Steel |
| Suitable For | Chain and Rope |
| Replaces | Quick FSDP31024010A00 |
| Boat Size | 10 to 14 metres in length |
| Gypsy Size | 10mm |
| Brand | Quick |
| Series | Prince DP3 |
| Model | 1024 Mk2 |
| Voltage Description | 24V DC |
| Wattage | Motor Power: 1000W |
| Working Load | 150kg (331 lb), Maximum: 450kg (992 lb) |
| Maximum Pull Load | 1000kg (2205 lb) |
| Maximum Chain Speed | 40.9 m/min (134.2 ft/min), At Working Load: 21.4 m/min (70.2 ft/min) |
| Amps Description | Current Absorbtion At Working Load: 80A |
| Fuse | 50A Protection Circuit Breaker |
| Contents | Contactor Units, Nylon Handle, Drilling Template, User Manual |
| Height Description | 254.4mm (10-1/64") |
| Depth | 233.5mm (9-3/16") |
| Weight | 19.4kg (42lb) |
| Size | Motor Cable: 16mm2 (AWG5) |
