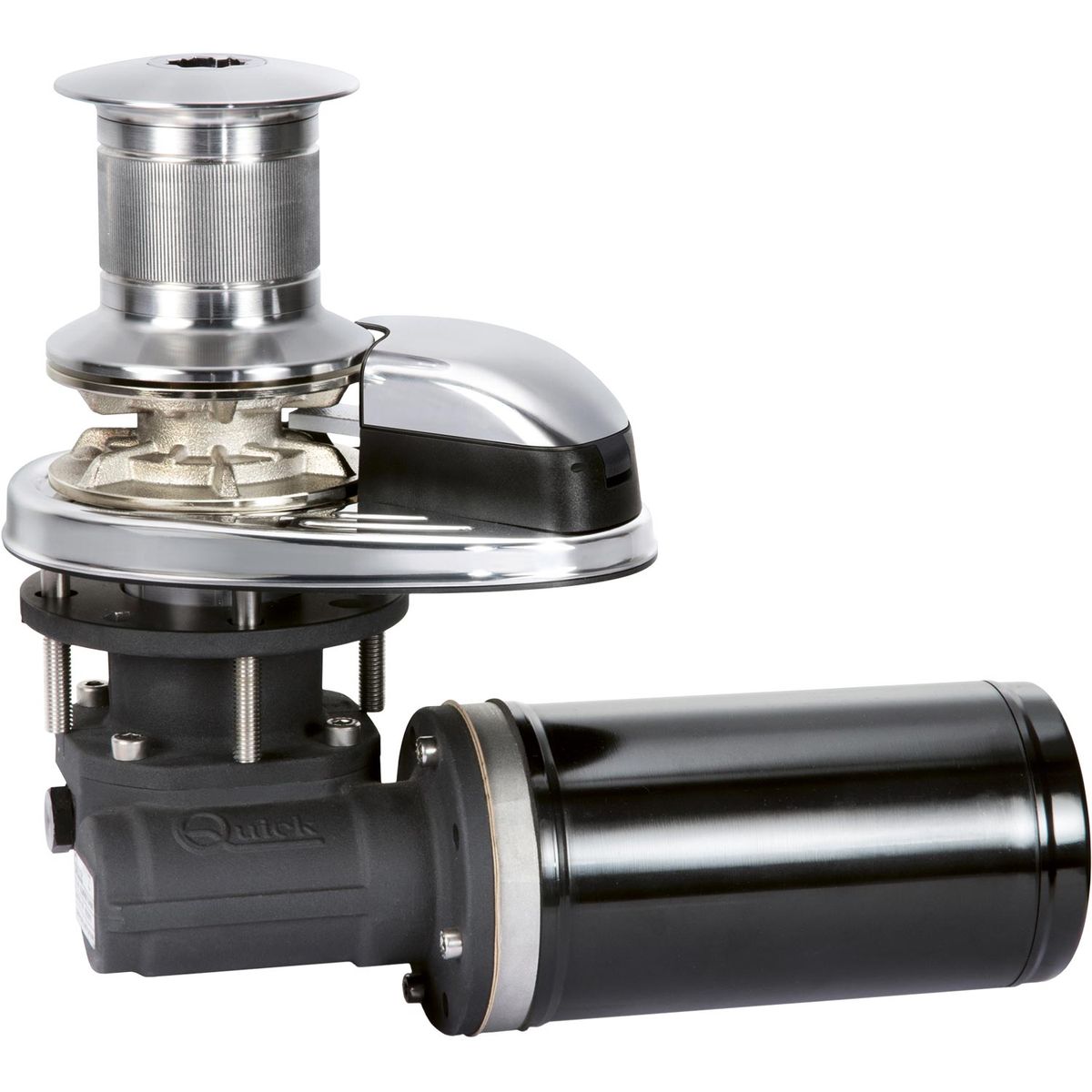

The Quick DP2 Prince 712D vertical windlass is suitable for boats from 7m to 12m (23 to 40ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16″) gypsy which is suitable for 8mm ISO chain and a 1/2″ rope. This version also comes with a drum attached.
Out of stock
This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.
The Quick DP2 Prince 712D vertical windlass is suitable for boats from 7m to 12m (23 to 40ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16″) gypsy which is suitable for 8mm ISO chain and a 1/2″ rope. This version also comes with a drum attached.
| Dimensions | 219.5 × 332.5 × 294.4 cm |
|---|---|
| Material | Stainless Steel |
| Primary Construction | Stainless Steel |
| Suitable For | Chain and Rope |
| Boat Size | 7 to 12 metres in length |
| Gypsy Size | 8mm |
| Brand | Quick |
| Series | Prince DP2 |
| Model | 712D |
| Voltage Description | 12V DC |
| Wattage | Motor Power: 700W |
| Working Load | 100kg (220 lb), Maximum: 300kg (661 lb) |
| Maximum Pull Load | 680kg (1499 lb) |
| Maximum Chain Speed | 22.6 m/min (74.1 ft/min), At Working Load: 11.6 m/min (39.1 ft/min) |
| Amps Description | Current Absorbtion At Working Load: 95A |
| Contents | Contactor Units, Nylon Handle, Drilling Template, User Manual |
| Height Description | 294.4mm (11-19/32") |
| Width | 332.5mm (13-3/32") |
| Depth | 219.5mm (8-41/64") |
