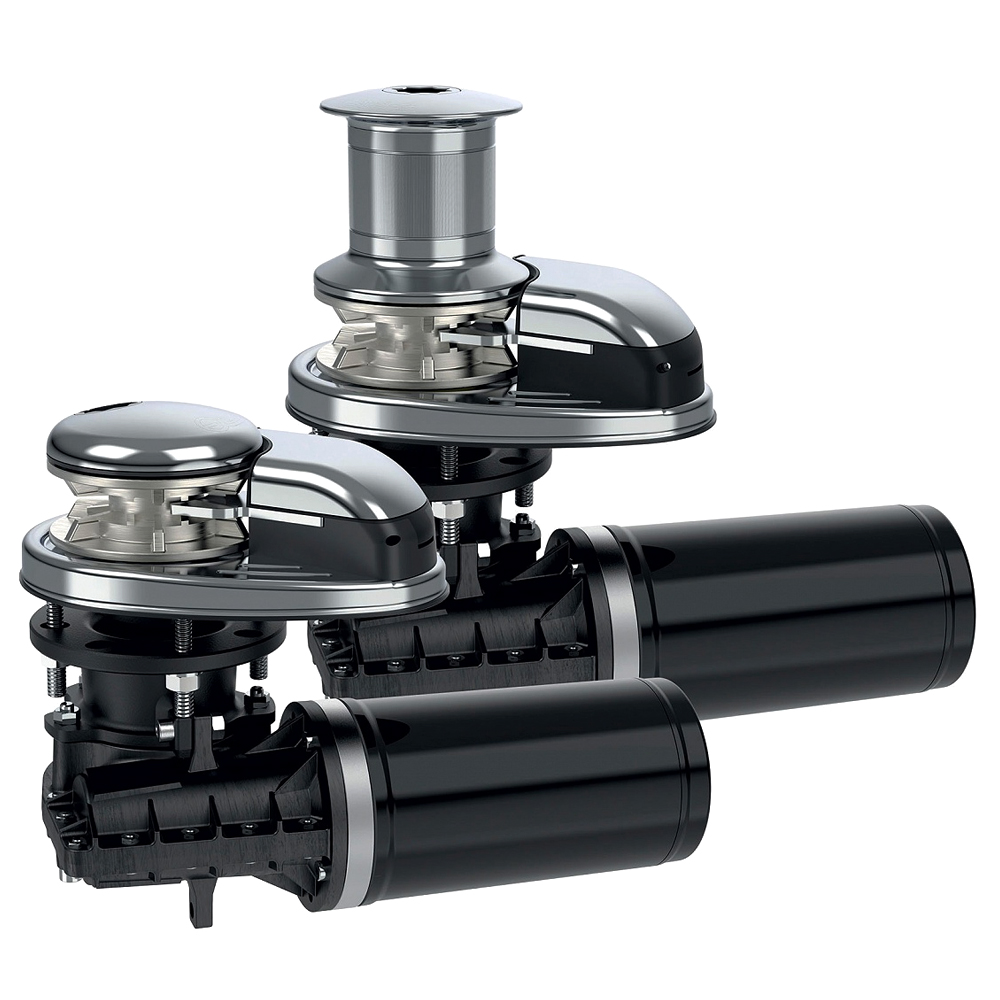

The Quick DP2 Prince 1012D vertical windlass is suitable for boats from 8m to 13m (26 to 43ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 6mm (1/4″) gypsy which is suitable for 6mm ISO chain and a 1/2″ rope. This version also comes with a drum attached.
Out of stock
This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.
The Quick DP2 Prince 1012D vertical windlass is suitable for boats from 8m to 13m (26 to 43ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 6mm (1/4″) gypsy which is suitable for 6mm ISO chain and a 1/2″ rope. This version also comes with a drum attached.
| Weight | 15.1 kg |
|---|---|
| Dimensions | 219.5 × 294.4 cm |
| Material | Stainless Steel |
| Primary Construction | Stainless Steel |
| Suitable For | Chain and Rope |
| Replaces | Quick FSDP21012D06A00 |
| Boat Size | 8 to 13 metres in length |
| Gypsy Size | 6mm |
| Brand | Quick |
| Series | Prince DP2 |
| Model | 1012D Mk2 |
| Voltage Description | 12V DC |
| Wattage | Motor Power: 1000W |
| Working Load | 140kg (309 lb), Maximum: 420kg (926 lb) |
| Maximum Pull Load | 930kg (2050 lb) |
| Maximum Chain Speed | 31.2 m/min (102.4 ft/min), At Working Load: 16.5 m/min (54.1 ft/min) |
| Amps Description | Current Absorbtion At Working Load: 130A |
| Contents | Contactor Units, Nylon Handle, Drilling Template, User Manual |
| Height Description | 294.4mm (11-19/32") |
| Depth | 219.5mm (8-41/64") |
| Weight | 15.1kg (33lb) without drum |
