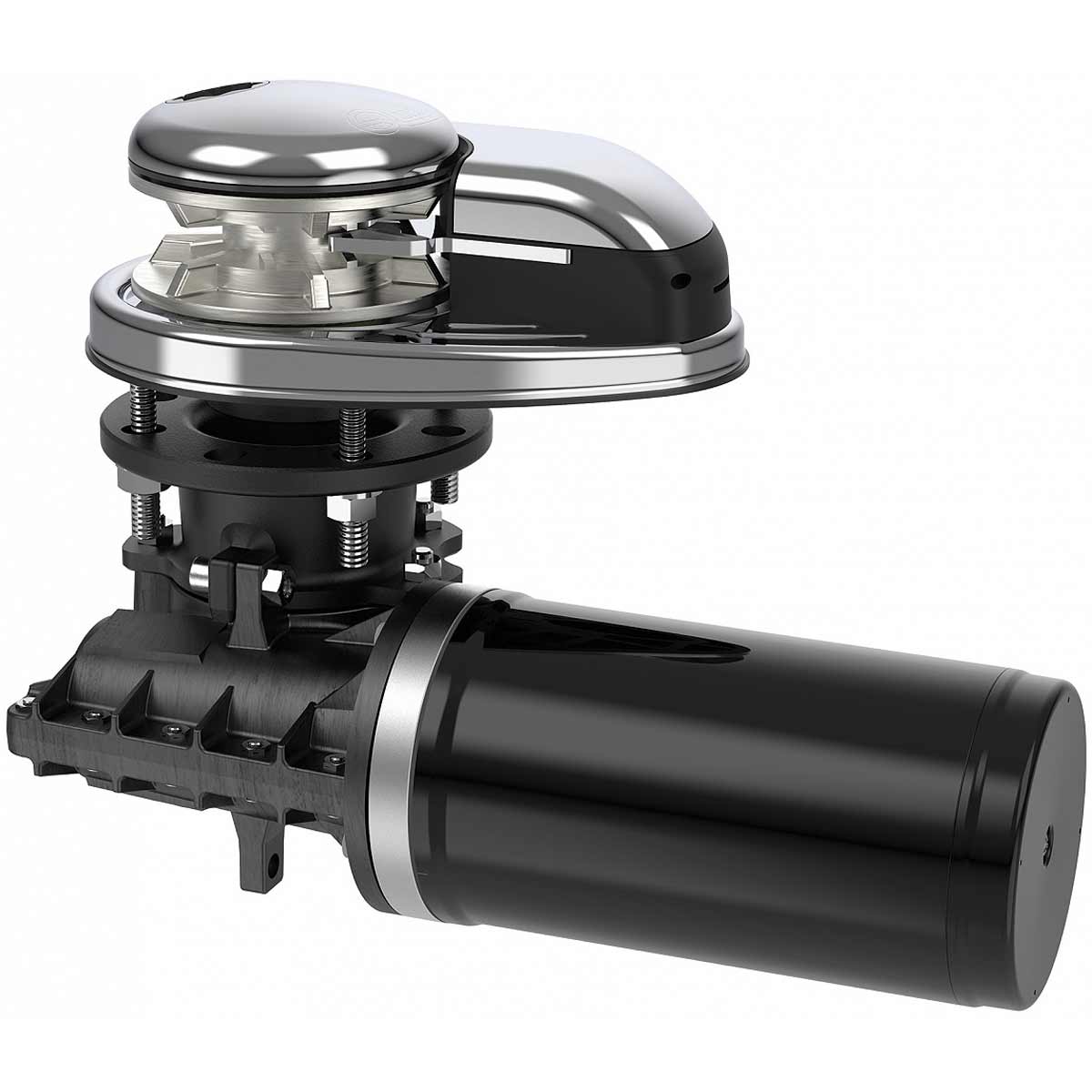

The Quick DP1 Prince 524 vertical windlass is suitable for boats from 5m to 7.8m (16 to 28ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 6mm (1/4″) gypsy which is suitable for 6mm ISO chain.
Out of stock
This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.
The Quick DP1 Prince 524 vertical windlass is suitable for boats from 5m to 7.8m (16 to 28ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 6mm (1/4″) gypsy which is suitable for 6mm ISO chain.
| Weight | 9.3 kg |
|---|---|
| Dimensions | 154 × 227.4 cm |
| Material | Stainless Steel |
| Primary Construction | Stainless Steel |
| Suitable For | Chain |
| Boat Size | 5 to 8.5 metres in length |
| Gypsy Size | 6mm |
| Brand | Quick |
| Series | Prince DP1 |
| Model | 524 |
| Voltage Description | 24V DC |
| Wattage | Motor Power: 500W |
| Working Load | 70kg (154 lb), Maximum: 220kg (485 lb) |
| Maximum Pull Load | 660kg (1455 lb) |
| Maximum Chain Speed | 25.2 m/min (82.7 ft/min), At Working Load: 19.3 m/min (63.3 ft/min) |
| Amps Description | Current Absorbtion At Working Load: 40A |
| Fuse | 40A Protection Circuit Breaker |
| Contents | Contactor Units, Nylon Handle, Drilling Template, User Manual |
| Height Description | 227.4mm (8-61/64") |
| Depth | 154mm (6-1/16") |
| Weight | 9.3kg (20lb) |
| Size | Motor Cable: 10mm2 (AWG7) |
