Quick DH4 1512 Windlass

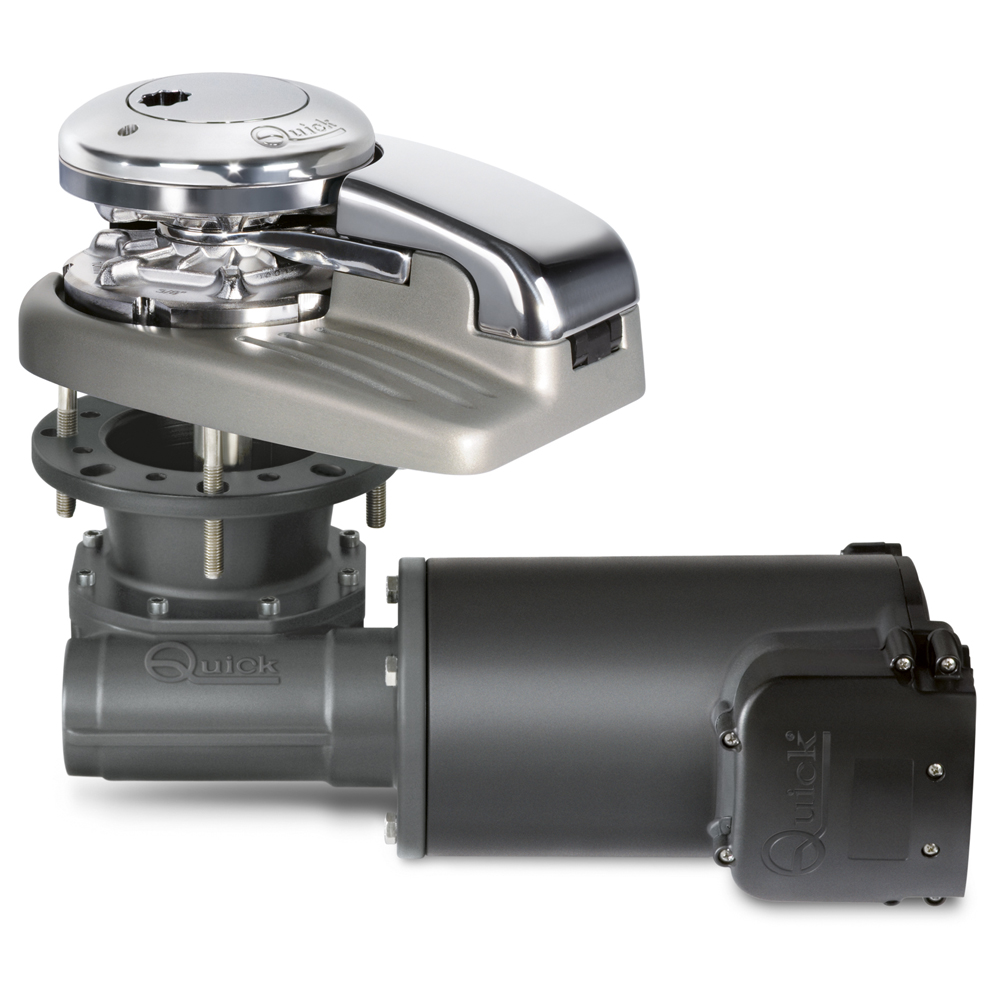

Quick DH4 1512 Windlass Gypsy Only (1500W / 12V / 10mm)

SKU: Q-DH4251104 MPN: FSDH15120010A00
cancel Out of Stock
£2,298.41 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

The Quick DH4 1512 vertical windlass is suitable for boats from 10-16 meters (33 – 53 ft) and is supplied with a contactor unit and aluminium handle as standard. Its base is constructed in anodized aluminium in hard oxide, making it extremely durable.

This windlass features a 10mm (3/8″) gypsy which is suitable for 10mm DIN 766, 10mm ISO and 3/8″ G4 chain, as well as 5/8″ (15.8mm) – 3/4″ (19mm) rope (PLEASE NOTE these values refer to a three-strand polyester rope with a rope/chain splice manufactured with the ‘Slim Splice Quick®’).

This product consists of windlass (on deck unit and motor gearbox), contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user’s manual and conditions of warranty.

Key Features

Vertical windlass

Base in Anodised aluminium in hard oxide

Rope and chain on a single gypsy

Integrated sensor and magnet for chain counter

Manual Free-Fall system

Emergency manual lift system

Supplied with pressure lever

Inspection lid

IP67 watertight motor

Anodised aluminium gearbox

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Quick DH4 1512 Windlass Gypsy Only (1500W / 12V / 10mm)
SKU: Q-DH4251104

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

The Quick DH4 1512 vertical windlass is suitable for boats from 10-16 meters (33 – 53 ft) and is supplied with a contactor unit and aluminium handle as standard. Its base is constructed in anodized aluminium in hard oxide, making it extremely durable.

This windlass features a 10mm (3/8″) gypsy which is suitable for 10mm DIN 766, 10mm ISO and 3/8″ G4 chain, as well as 5/8″ (15.8mm) – 3/4″ (19mm) rope (PLEASE NOTE these values refer to a three-strand polyester rope with a rope/chain splice manufactured with the ‘Slim Splice Quick®’).

This product consists of windlass (on deck unit and motor gearbox), contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user’s manual and conditions of warranty.

Key Features

Vertical windlass

Base in Anodised aluminium in hard oxide

Rope and chain on a single gypsy

Integrated sensor and magnet for chain counter

Manual Free-Fall system

Emergency manual lift system

Supplied with pressure lever

Inspection lid

IP67 watertight motor

Anodised aluminium gearbox

Weight 23.2 kg
Dimensions 267 × 375 × 285 cm
Material

Aluminium
Primary Construction

Aluminium
Suitable For

Chain and Rope
Boat Size

10 to 16 metres in length
Gypsy Size

10mm
Brand

Quick
Series

Dylan H
Model

DH4 1512
Voltage Description

12V DC
Wattage

1500W
Working Load

135kg (298 lb)
Maximum Pull Load

1100kg (2425 lb)
Maximum Chain Speed

35.2 m/min (115.5 ft/min) At Working Load: 19.0 m/min (62.3 ft/min)
Amps Description

150A at 135kg
Fuse

100A Protection Circuit Breaker
Contents

Windlass (on deck unit and motorgearbox), contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user’s manual and conditions of warranty.
Approvals

CE
Height Description

285mm
Width

375mm
Depth

267mm
Weight

23.2kg (51.1 lb)
Diameter Description

Mounting Holes: 11mm (7/16")
Thickness

Deck: 25mm – 50mm (31/32" – 1” 31/32)
Size

Motor Cable: 50mm2 (AWG0)
