Quick BTH300 Thruster 400KGF Hydraulic 24.0kW 300mm Twin C/R Props

Name: Quick BTH300 Thruster 400KGF Hydraulic 24.0kW 300mm Twin C/R Props - Marine Chandlery
SKU: Q-BTHY3004009
Price: 5625.53 GBP
Availability: OutOfStock

SKU: Q-BTHY3004009 MPN: FGBT300HY400A00

cancel Out of Stock

£5,625.53 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

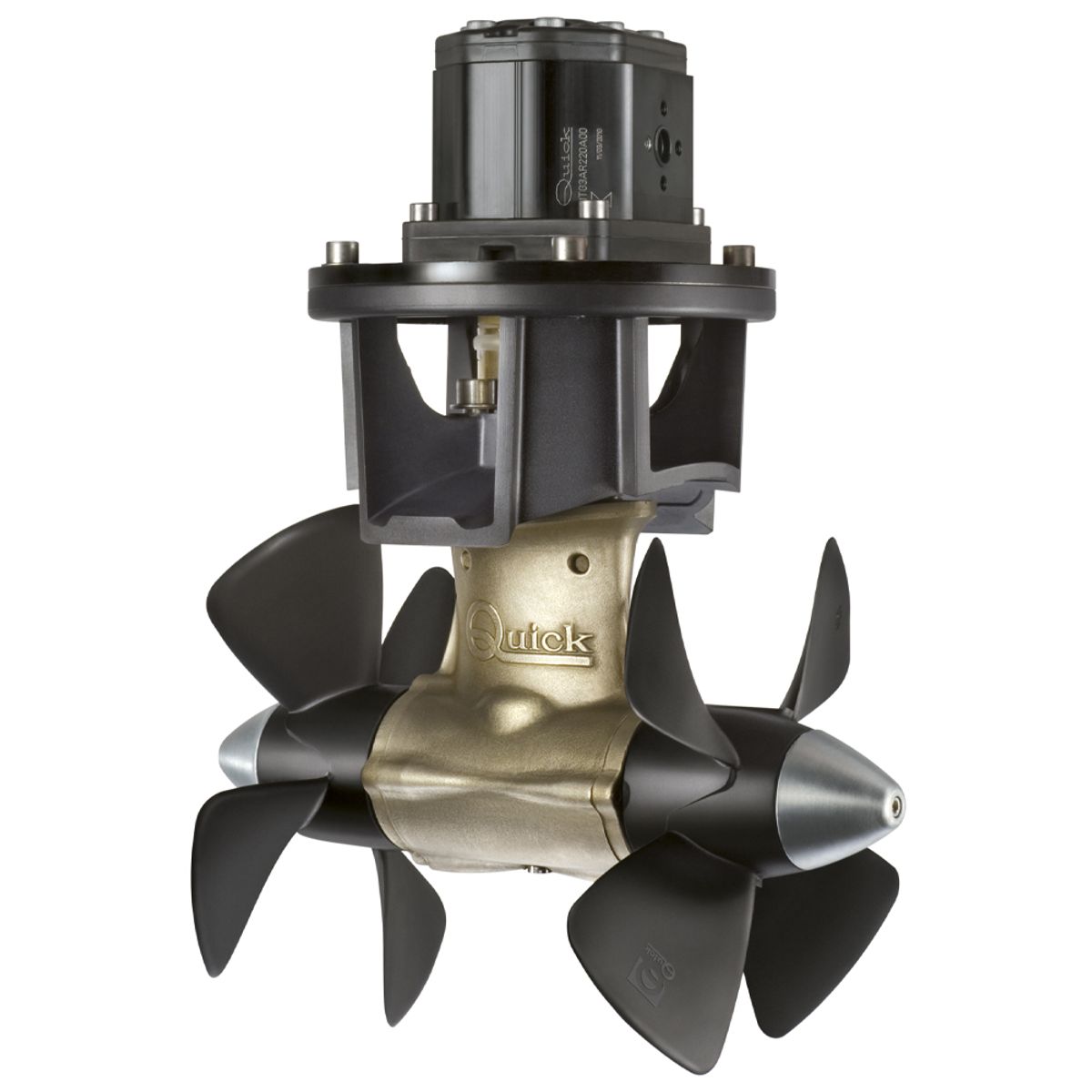

Quick BTH 300-400 hydraulic thruster recommended for boats 22 to 36 meters (72-118 ft) in length. This model has a double propeller made in sturdy composite material (BTH 300-400 NIBRAL) and a bronze gearbox. It is equipped with an elastic coupling and has a zinc anode independent from the gearbox – making it easily replaceable.

Specs:

• Model: BTH 300-400

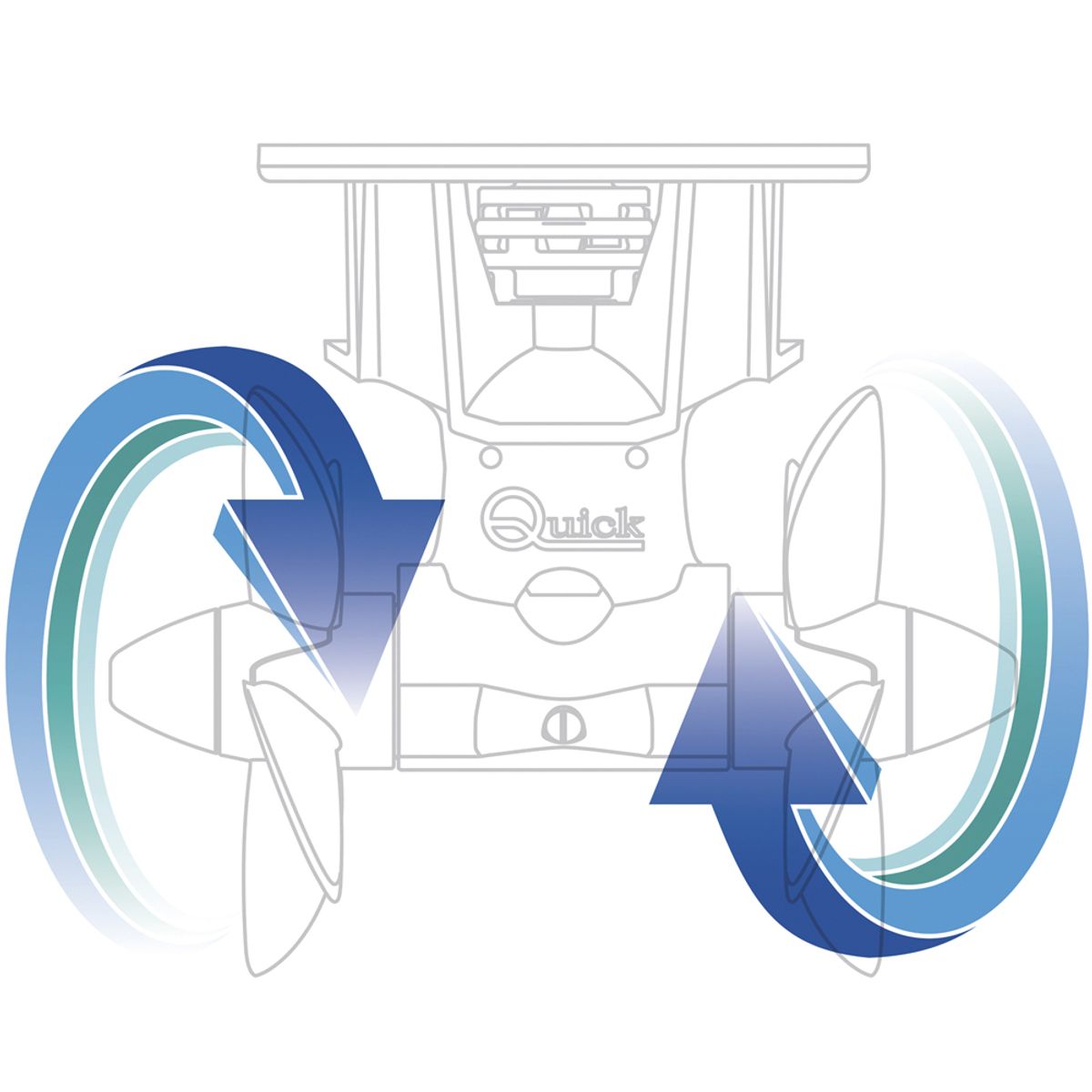

• Number of propellers: Double propellers (nibral)

• Tunnel diameter: 300mm (11-13/16″)

• Motor type: Piston motor

• Motor power: 32 cc (1.95″³)

• Weight: 40.8kg (89.94lb)

• Flow rate: 70.0 Iitres/minute (18.25 US GPM)

• Pression: 230 bar (3335 psi)

• Hydraulic power absorbed: 24 kw (32.18 hp)

• Thrust: 400 Kgf (882 lbs)

Product contents:

• Hydraulic thruster

• Drill template

• O-ring (for assembly)

• User’s manual

• Conditions of warranty
