Quick AL3P 1012D Windlass

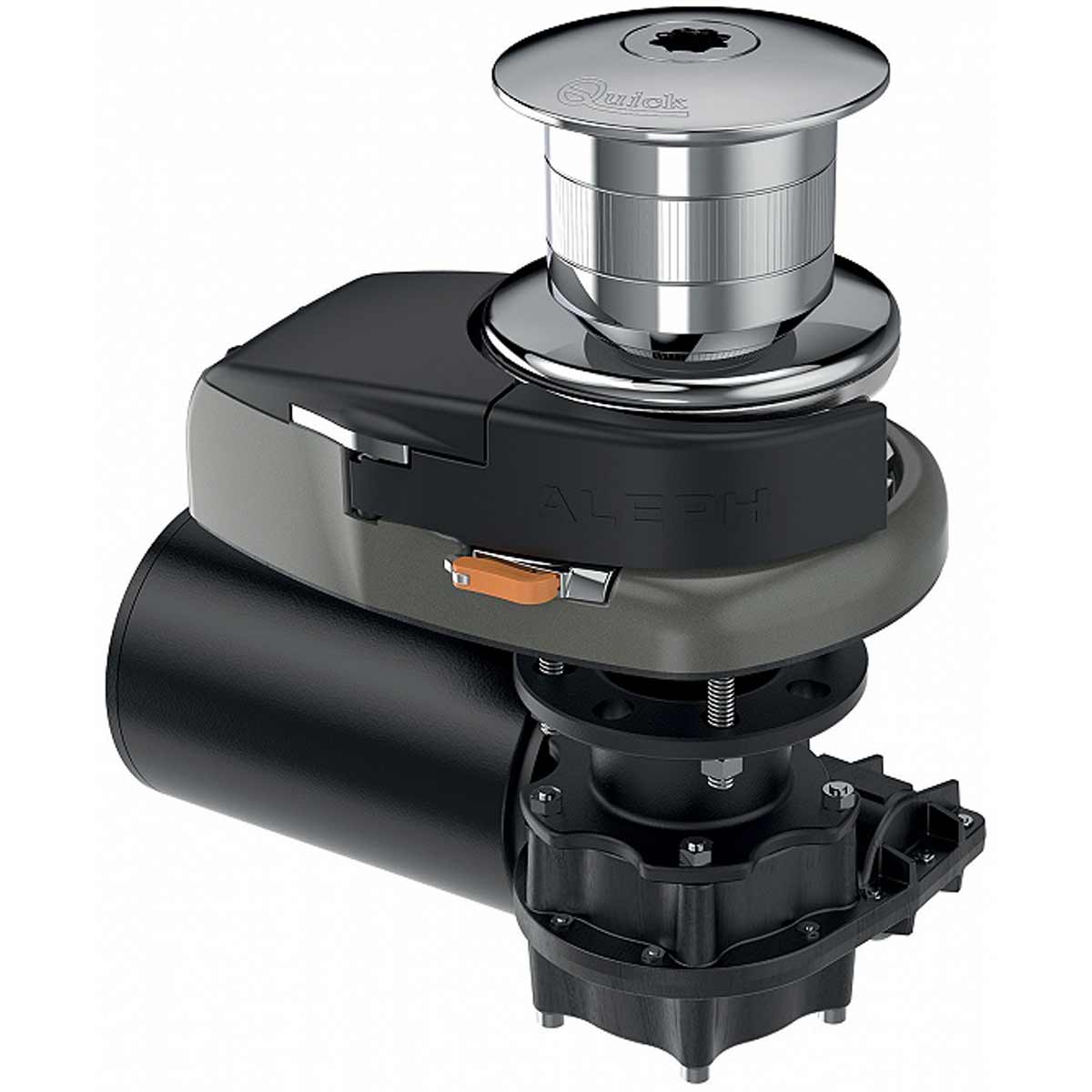

Quick AL3P 1012D Windlass Gypsy & Drum (1000W / 12V / 10mm)

SKU: Q-FSAL1012D010B00 MPN: FSAL1012D010B00
cancel Out of Stock
£1,643.11 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

The Quick AL3P Aleph 1012D vertical windlass is suitable for boats from 10m to 14m (33 to 46ft). The vertical mount windlass is easy to install with an anodised aluminium base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 10mm (3/8″) gypsy which is suitable for 10mm ISO chain and a 5/8″ rope. This version also comes with a drum attached.

Key Features

Vertical windlass

Base in anodised aluminium in hard oxide

With drum

Rope & chain on a single gypsy

Integrated sensor & magnet for chain counter

Manual Free-Fall system

Emergency manual lift system

Supplied with pressure lever

Inspection lid

IP67 watertight motor

Technopolymer gearbox (1000W)

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Quick AL3P 1012D Windlass Gypsy & Drum (1000W / 12V / 10mm)
SKU: Q-FSAL1012D010B00

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

The Quick AL3P Aleph 1012D vertical windlass is suitable for boats from 10m to 14m (33 to 46ft). The vertical mount windlass is easy to install with an anodised aluminium base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 10mm (3/8″) gypsy which is suitable for 10mm ISO chain and a 5/8″ rope. This version also comes with a drum attached.

Key Features

Vertical windlass

Base in anodised aluminium in hard oxide

With drum

Rope & chain on a single gypsy

Integrated sensor & magnet for chain counter

Manual Free-Fall system

Emergency manual lift system

Supplied with pressure lever

Inspection lid

IP67 watertight motor

Technopolymer gearbox (1000W)

Weight 19.7 kg
Dimensions 239 × 179 × 169 cm
Material

Aluminium
Primary Construction

Aluminium
Suitable For

Chain and Rope
IP Rating

IP67
Boat Size

10 to 14 metres in length
Gypsy Size

10mm
Brand

Quick
Series

Aleph AL3P
Model

1012D
Voltage Description

12V DC
Wattage

Motor Power: 1000W
Working Load

120kg (264 lb), Maximum: 370kg (816 lb)
Maximum Chain Speed

39.6 m/min (129.2 ft/min), At Working Load: 20.4 m/min 66.9 ft/min)
Amps Description

Current Absorbtion At Working Load: 140A
Fuse

80A Protection Circuit Breaker
Contents

Contactor Unit, Technopolymer Handle, Drilling Template, User Manual
Approvals

CE
Height Description

Above Surface: 169mm (6-21/32"), Below Surface: 155.4mm (6-1/8")
Width

179mm (7-1/16")
Depth

239mm (9-13/32")
Weight

19.7kg (43lb) with drum
Thickness

Deck: 25mm to 50mm (63/64" – 1-31/32")
Size

Motor Cable: 35mm2 (AWG2)
