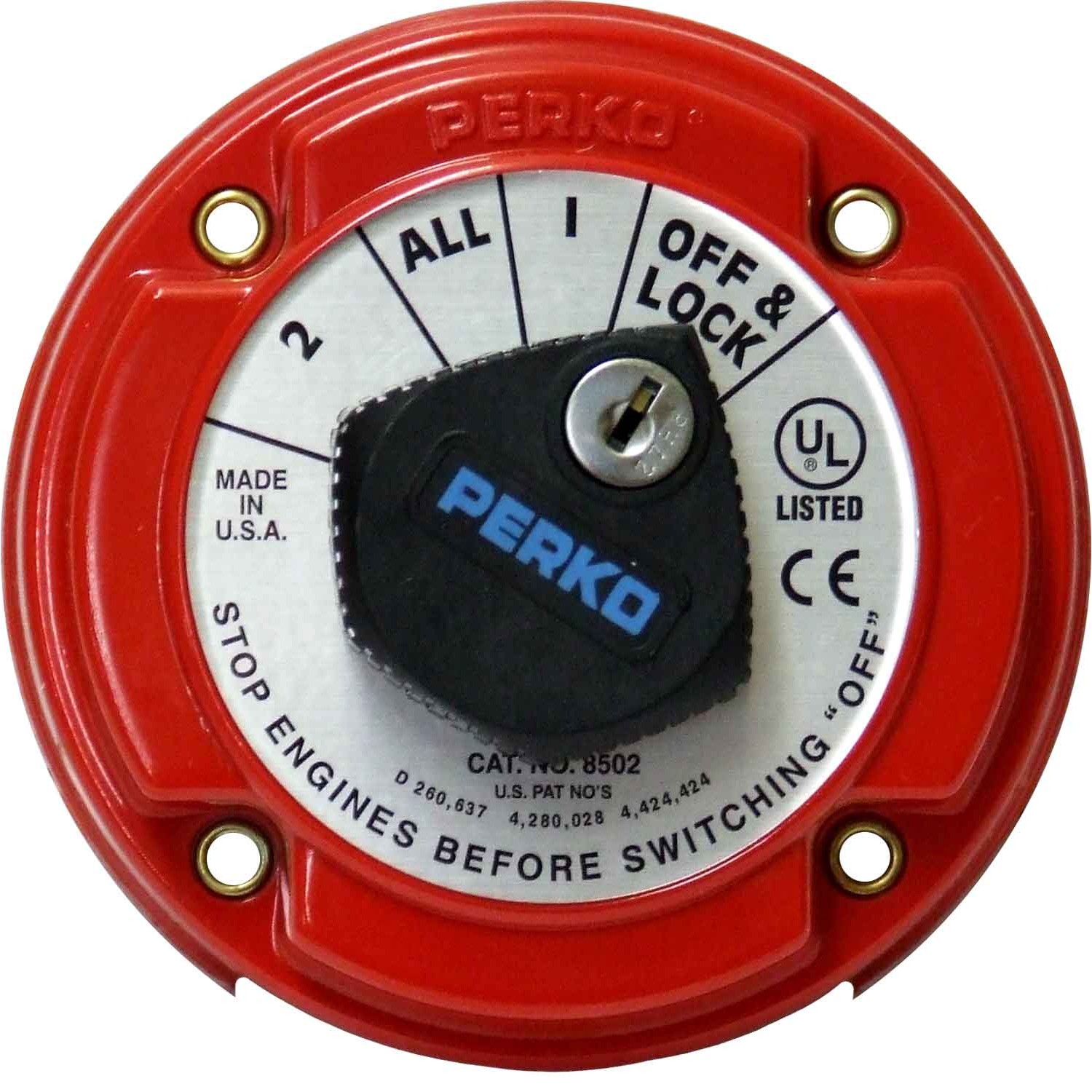

Perko Part Number: 8502DP
The Perko 8502DP standard battery isolator selector switch allows the operator to select the use of either battery 1, battery 2 or both batteries in the system from one single switch. This four-way battery selector switch features the following positions: Off & Lock / 1 / All / 2.
The Perko battery isolator change over switch rates 360 amps intermittent and 250 amps continuous, suitable for 12 volt, 24 volt or 32 volt marine electrical systems.
1 in stock
Need more? Request a custom quote for larger quantities
Perko Part Number: 8502DP
The Perko 8502DP standard battery isolator selector switch allows the operator to select the use of either battery 1, battery 2 or both batteries in the system from one single switch. This four-way battery selector switch features the following positions: Off & Lock / 1 / All / 2.
The Perko battery isolator change over switch rates 360 amps intermittent and 250 amps continuous, suitable for 12 volt, 24 volt or 32 volt marine electrical systems.
| Dimensions | 67 × 13.4 cm |
|---|---|
| Battery Isolator Switch Selector | 4-Way |
| Alternator Field Disconnect | No |
| Contact Studs | 10mm (3/8") |
| Ignition Protected | Yes |
| Key Lock | Yes |
| Brand | Perko |
| Model | 8502DP |
| Voltage Description | 12V DC, 24V DC, 32V DC |
| Amps Description | Continuous: 250A, Intermittent: 360A |
| Approvals | UL Listed Std. 1107 & CE |
| Depth | 67mm (2-5/8") |
| Diameter Description | 134mm (5-1/4") |
