Perko Part Number: 9602DP

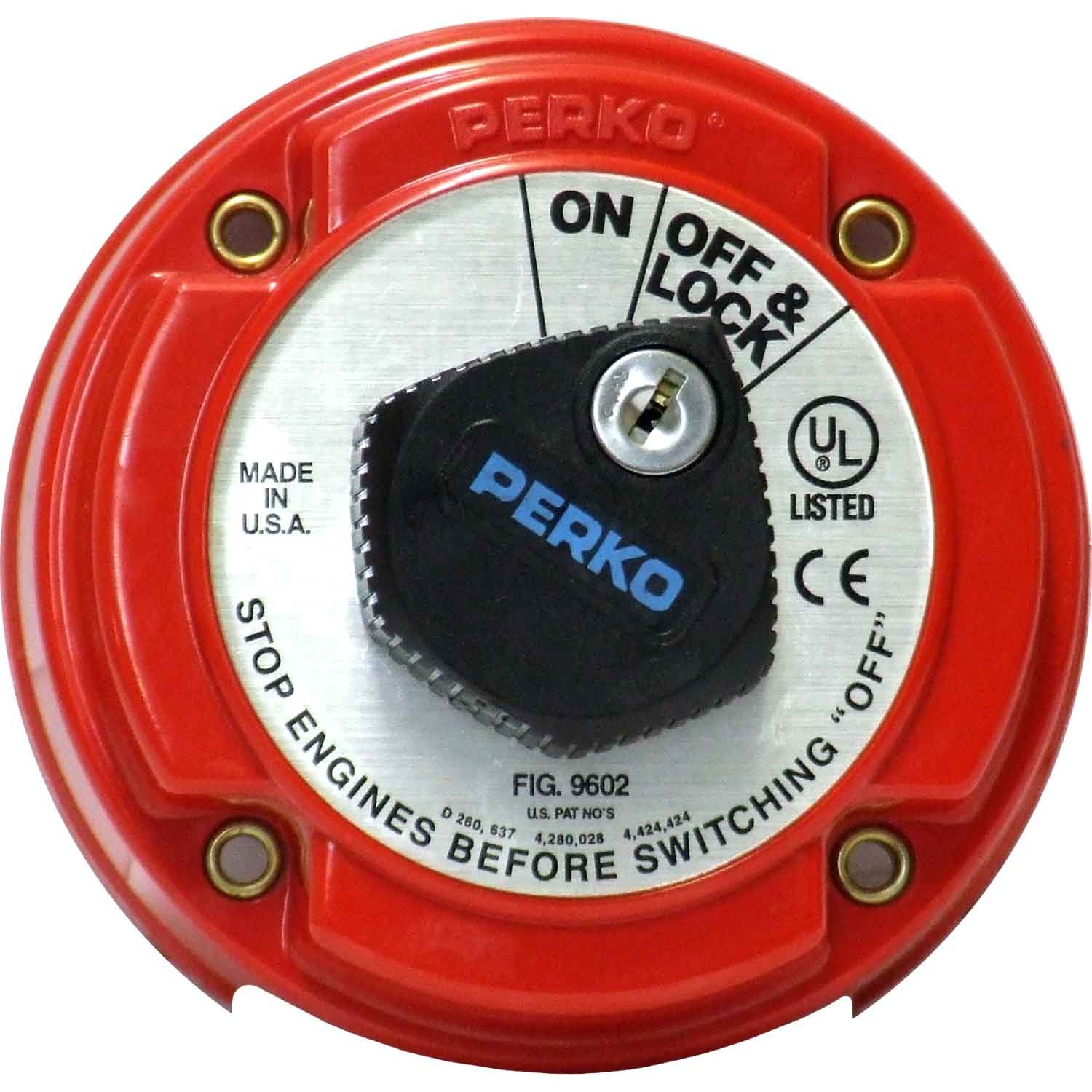

The Perko 9602DP standard battery isolator switch allows the operator to turn the battery to the off position when not in use and back on when required by a single switch. This compact two way selector switch features the following switch positions: On / Off.
The Perko battery isolator switch rates 360 amps intermittent and 250 amps continuous, suitable for 12 volt, 24 volt or 32 volt marine electrical systems.
Out of stock
This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.
Perko Part Number: 9602DP
The Perko 9602DP standard battery isolator switch allows the operator to turn the battery to the off position when not in use and back on when required by a single switch. This compact two way selector switch features the following switch positions: On / Off.
The Perko battery isolator switch rates 360 amps intermittent and 250 amps continuous, suitable for 12 volt, 24 volt or 32 volt marine electrical systems.
| Dimensions | 67 × 13.4 cm |
|---|---|
| Battery Isolator Switch Selector | 2-Way |
| Alternator Field Disconnect | No |
| Contact Studs | 10mm (3/8") |
| Ignition Protected | Yes |
| Key Lock | Yes |
| Brand | Perko |
| Model | 9602 |
| Voltage Description | 12V DC, 24V DC, 32V DC |
| Amps Description | Continuous: 250A, Intermittent: 360A |
| Approvals | UL Listed Std. 1107 and CE |
| Depth | 67mm (2-5/8") |
| Diameter Description | 134mm (5-1/4") |
