Perko Part Number: 9611DP

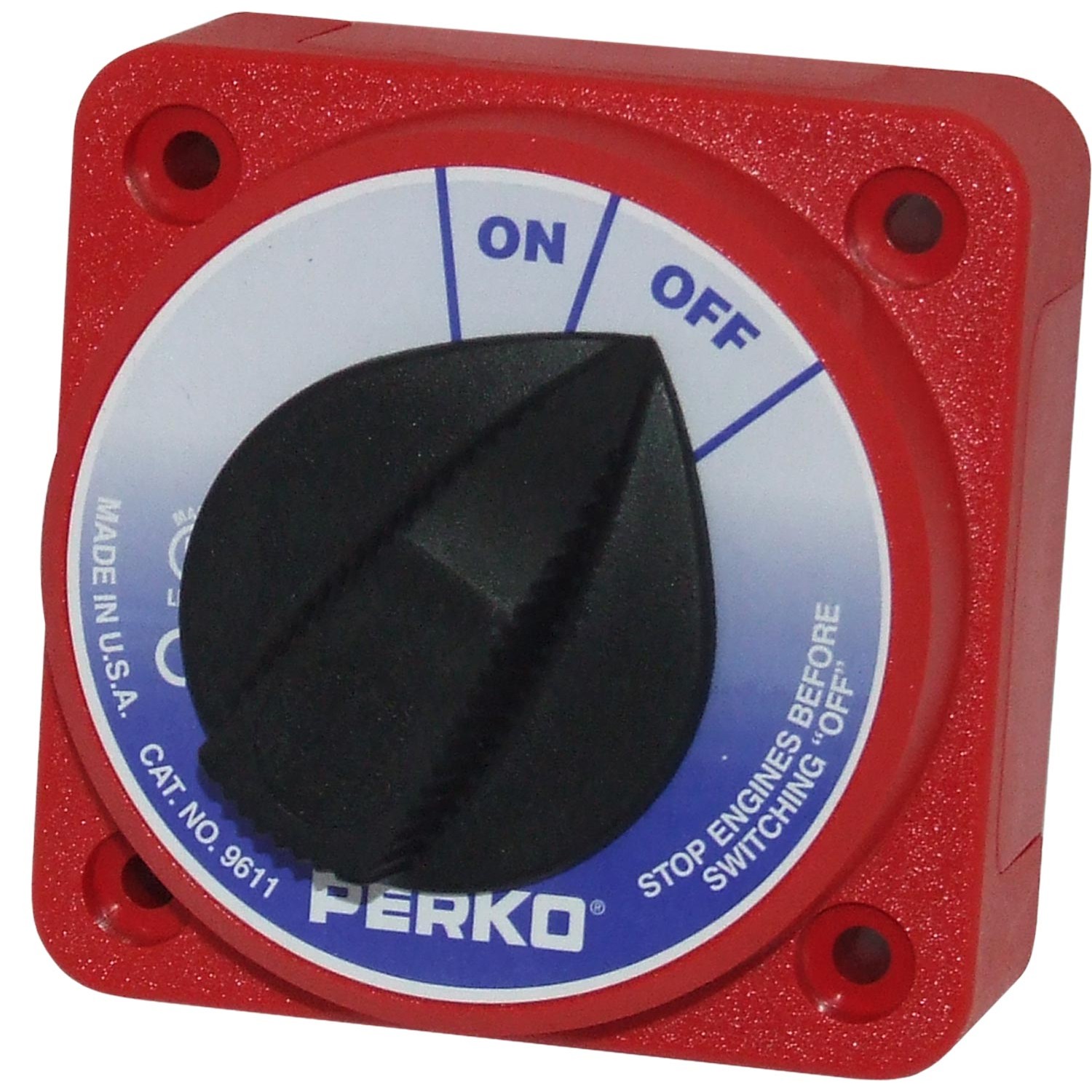

The Perko 9611DP compact battery isolator switch allows the operator to turn the battery to the off position when not in use and back on when required by a single switch. This compact two way selector switch features the following switch positions: On / Off.
The Perko battery isolator switch rates 450 amps intermittent and 315 amps continuous, suitable for 12 volt, 24 volt or 32 volt marine electrical systems.
3 in stock
Need more? Request a custom quote for larger quantities
Perko Part Number: 9611DP
The Perko 9611DP compact battery isolator switch allows the operator to turn the battery to the off position when not in use and back on when required by a single switch. This compact two way selector switch features the following switch positions: On / Off.
The Perko battery isolator switch rates 450 amps intermittent and 315 amps continuous, suitable for 12 volt, 24 volt or 32 volt marine electrical systems.
| Dimensions | 47 × 10.2 cm |
|---|---|
| Battery Isolator Switch Selector | 2-Way |
| Alternator Field Disconnect | No |
| Contact Studs | 10mm (3/8") |
| Ignition Protected | Yes |
| Key Lock | No |
| Brand | Perko |
| Model | 9611 |
| Voltage Description | 12V DC, 24V DC, 32V DC |
| Amps Description | Continuous: 315A, Intermittent: 450A |
| Approvals | UL Listed Std. 1107 and CE |
| Depth | 47mm (1-7/8") |
| Diameter Description | 102mm (4-3/4") |
| Dimensions | Hole Centre Dimensions: 77mm x 77mm |
