Perko Part Number: 8511DP

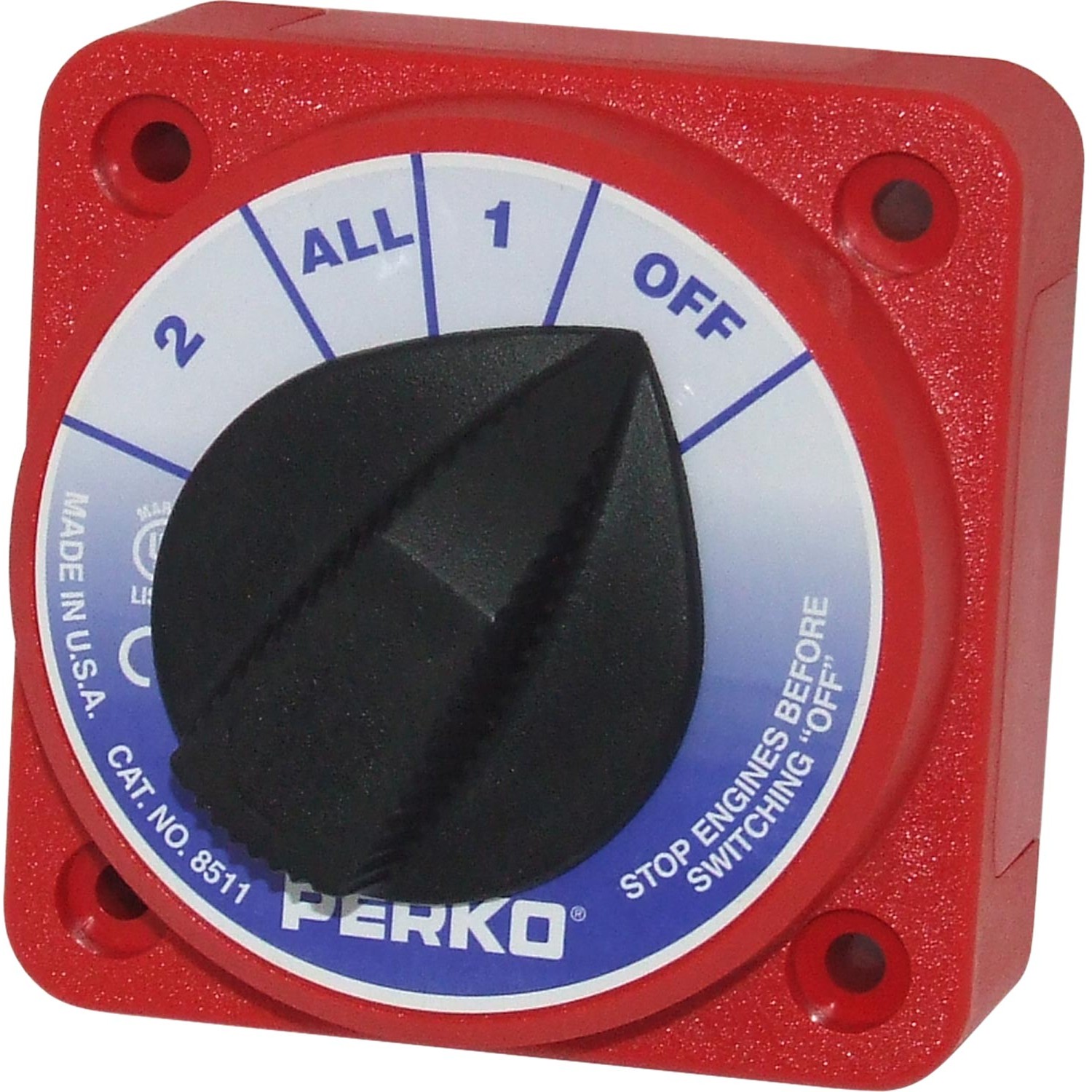

The Perko 8511DP compact battery isolator selector switch allows the operator to select the use of either battery 1, battery 2 or both batteries in the system from one single switch. This four way selector switch has the following switch positions: Off / 1 / All / 2.
The Perko battery isolator change over switch rates 450 amps intermittent and 315 amps continuous, suitable for 12 volt, 24 volt or 32 volt marine electrical systems.
1 in stock
Need more? Request a custom quote for larger quantities
Perko Part Number: 8511DP
The Perko 8511DP compact battery isolator selector switch allows the operator to select the use of either battery 1, battery 2 or both batteries in the system from one single switch. This four way selector switch has the following switch positions: Off / 1 / All / 2.
The Perko battery isolator change over switch rates 450 amps intermittent and 315 amps continuous, suitable for 12 volt, 24 volt or 32 volt marine electrical systems.
| Dimensions | 47 × 10.2 cm |
|---|---|
| Battery Isolator Switch Selector | 4-Way |
| Alternator Field Disconnect | No |
| Contact Studs | 10mm (3/8") |
| Ignition Protected | Yes |
| Key Lock | No |
| Brand | Perko |
| Model | 8511DP |
| Voltage Description | 12V DC, 24V DC, 32V DC |
| Amps Description | Continuous: 315A, Intermittent: 450A |
| Approvals | UL Listed Std. 1107 & CE |
| Depth | 47mm (1-7/8") |
| Diameter Description | 102mm (4-3/4") |
| Dimensions | Hole Centres: 77mm x 77mm |
