Mastervolt CZone Waterproof Keypad

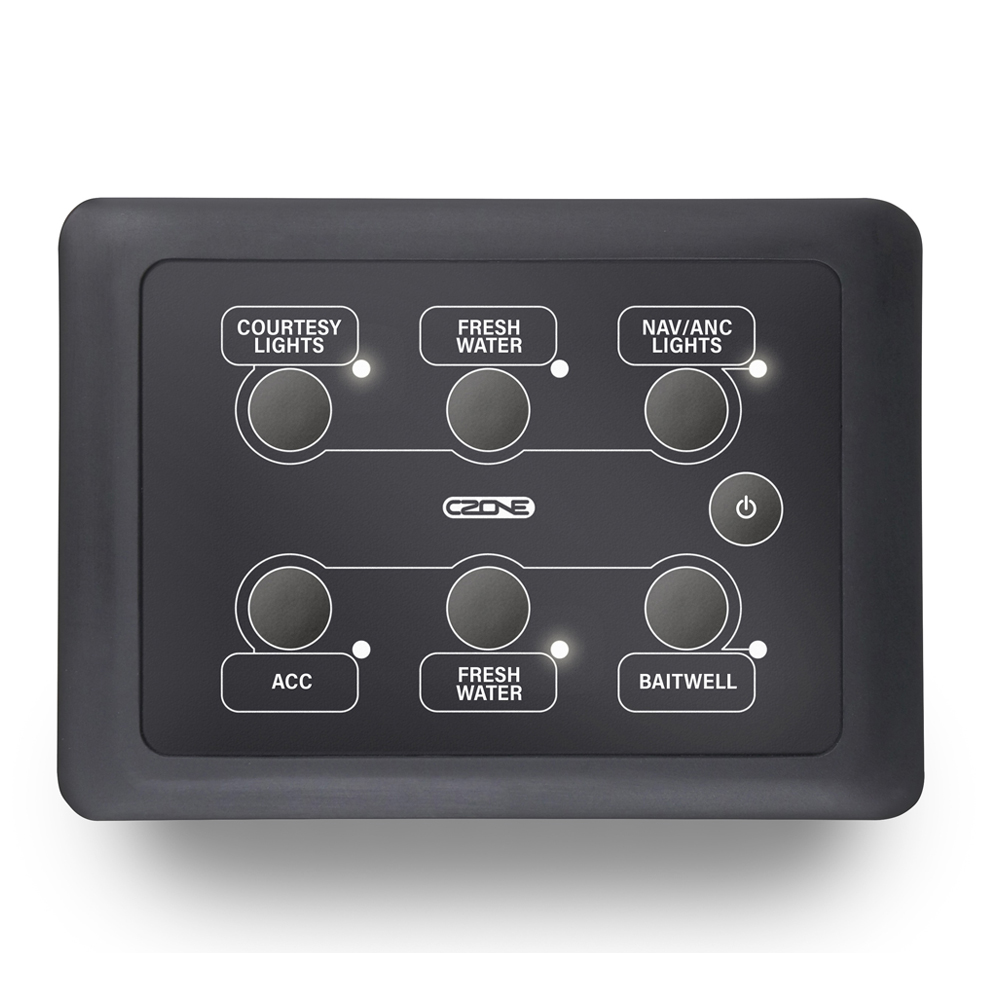

Mastervolt CZone Waterproof Keypad (6-Way / Landscape)

SKU: 8-94285 MPN: 80-911-0162-00
cancel Out of Stock
£293.08 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

This CZone Waterproof Keypad from Mastervolt features dimmable RGB circuit backlighting in a robust IPx7 waterproof enclosure.

The landscape keypad is designed for front mount installation with a single 52mm (2.05 inch) hole saw, or rear mount to achieve a flat mount glass dash style look.

This keypad is delivered with a standard label sheet for personalised circuit labelling.

Product contents:

– Landscape keypad

– Bezel

– 4 x Screws

– Gasket

Key Features

IPx7 submersible

Circuit in operation LEDs with blown fuse fault indication

Dimmable RGB circuit backlighting

Low profile with 3 mounting options – front, rear and flush mount

Easy hole saw installation with single plug connection

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Mastervolt CZone Waterproof Keypad (6-Way / Landscape)
SKU: 8-94285

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

This CZone Waterproof Keypad from Mastervolt features dimmable RGB circuit backlighting in a robust IPx7 waterproof enclosure.

The landscape keypad is designed for front mount installation with a single 52mm (2.05 inch) hole saw, or rear mount to achieve a flat mount glass dash style look.

This keypad is delivered with a standard label sheet for personalised circuit labelling.

Product contents:

– Landscape keypad

– Bezel

– 4 x Screws

– Gasket

Key Features

IPx7 submersible

Circuit in operation LEDs with blown fuse fault indication

Dimmable RGB circuit backlighting

Low profile with 3 mounting options – front, rear and flush mount

Easy hole saw installation with single plug connection

Weight 0.115 kg
Dimensions 32 × 107 × 77 cm
IP Rating

IPX7
Connections Description

NMEA 2000 connectivity: 1 x CAN Micro-C port
Brand

CZone
Voltage Description

9 – 16V via CAN
Contents

Landscape keypad, Bezel, 4 x Screws, Gasket
Approvals

CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected
Height Description

77mm (3.0")
Width

107mm (4.2")
Depth

32mm (1.3")
Weight

0.115kg
Consumption

Max.: 56 mA / Standby: 1.8 mA
Temperature Range

Ambient: -15°C to 55°C / Storage (non operating): -40°C to 85°C
Mounting Description

Front and rear mount
