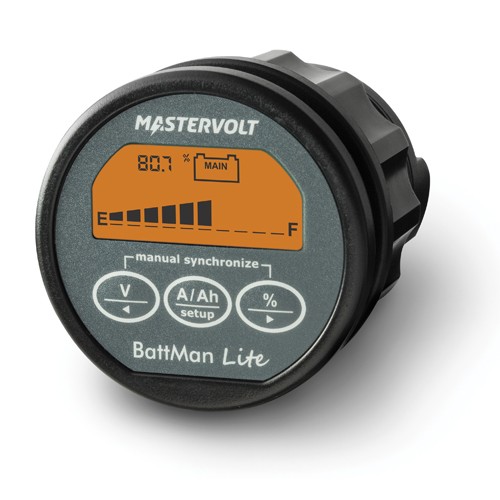

Mastervolt Battman Lite Battery Monitor

Mastervolt Battman Lite Battery Monitor (12V / 24V)

SKU: M70405060 MPN: 70405060
cancel Out of Stock
£172.74 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

The Masterlink Batman Lite battery monitor provides an accurate indication of the voltage, current, amp-hours and remaining battery capacity displayed as a percentage.

General specifications

Number of battery outlets: 2; service (fully), starter (voltage)

Display/read-out: voltage, current, amp-hours, battery capacity in %

Languages on display: universal

Built-in depth: 72.5 mm (2.9 inch)

Dimensions: Ø 64 mm, depth 79 mm

Dimensions shunt, hxwxd: 87 x 45 x 35 mm (3.4 x 1.8 x 1.4 inch)

Weight: 0.15 kg (0.3 lb)

Technical specifications

Max. Ah capacity: 9999 Ah

Supply voltage: 9-35 V

Voltage range: 0-35 V

Current consumption (backlight off): 8 mA/12 V, 6 mA/24 V

Current consumption (backlight on): 30 mA/12 V, 18 mA/24 V

Voltage resolution: 0.1 V

Voltage accuracy: ± 0.3%

Shunt specification: 500 A/50 mV (service set)

Current measurement range: 0-500 A

Current accuracy: ± 0.4 %

Battery alarm contact: yes, potential free

Remaining time indication: no

Historical data: no

MasterBus compatible: no

Connection cable (6-wire) necessary: yes

Modular cable necessary: no

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Mastervolt Battman Lite Battery Monitor (12V / 24V)
SKU: M70405060

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

The Masterlink Batman Lite battery monitor provides an accurate indication of the voltage, current, amp-hours and remaining battery capacity displayed as a percentage.

General specifications

Number of battery outlets: 2; service (fully), starter (voltage)

Display/read-out: voltage, current, amp-hours, battery capacity in %

Languages on display: universal

Built-in depth: 72.5 mm (2.9 inch)

Dimensions: Ø 64 mm, depth 79 mm

Dimensions shunt, hxwxd: 87 x 45 x 35 mm (3.4 x 1.8 x 1.4 inch)

Weight: 0.15 kg (0.3 lb)

Technical specifications

Max. Ah capacity: 9999 Ah

Supply voltage: 9-35 V

Voltage range: 0-35 V

Current consumption (backlight off): 8 mA/12 V, 6 mA/24 V

Current consumption (backlight on): 30 mA/12 V, 18 mA/24 V

Voltage resolution: 0.1 V

Voltage accuracy: ± 0.3%

Shunt specification: 500 A/50 mV (service set)

Current measurement range: 0-500 A

Current accuracy: ± 0.4 %

Battery alarm contact: yes, potential free

Remaining time indication: no

Historical data: no

MasterBus compatible: no

Connection cable (6-wire) necessary: yes

Modular cable necessary: no

Brand

Mastervolt
Voltage Description

12V / 24V DC
