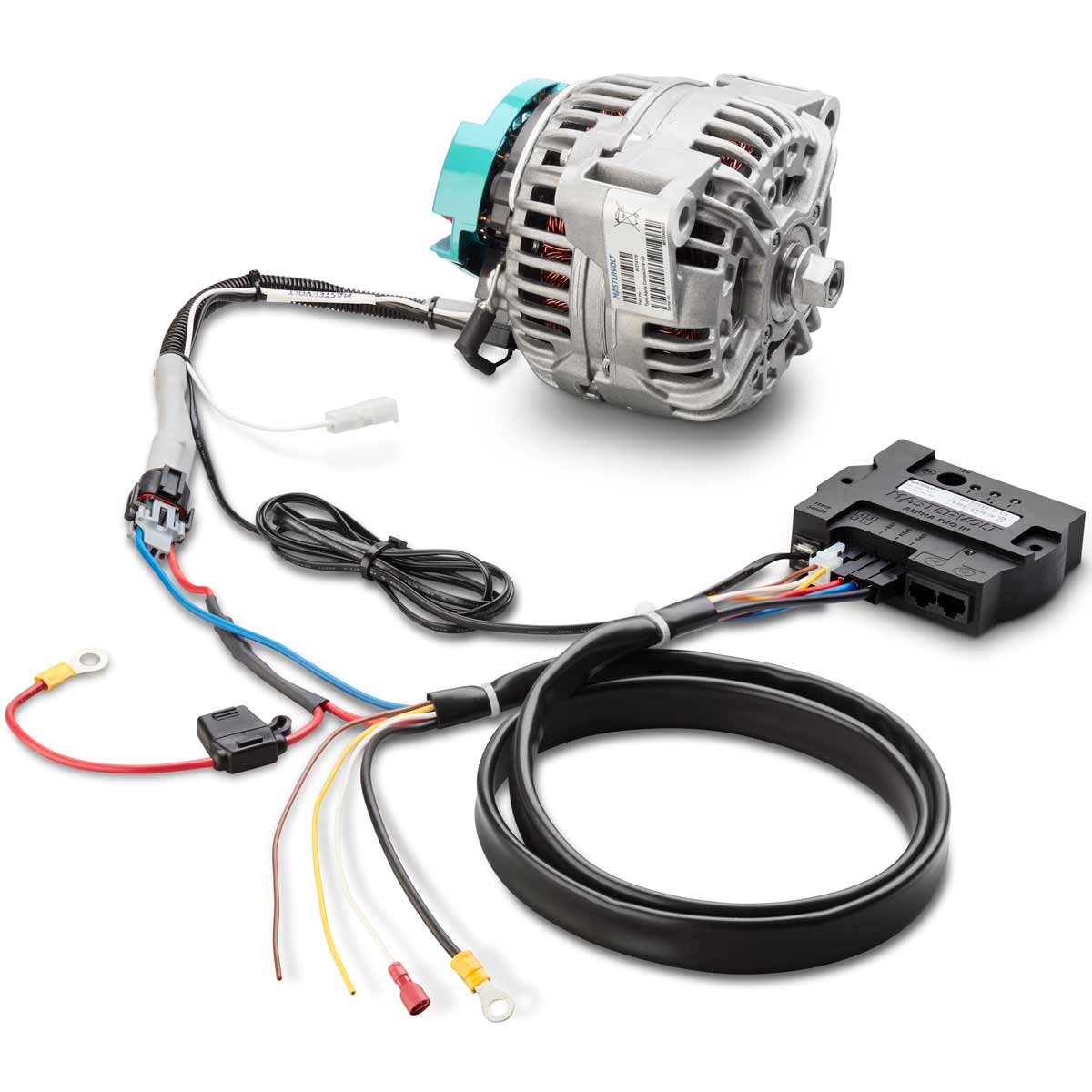

Mastervolt Alpha Compact 14/120 for Merc N62 with Alpha Pro III (12V)

Description

Alpha Compact 14/120 for Mercedes Benz N62 engines.

Alpha Compact alternators are optimised to deliver continuous high power output in energy storage applications. Combined with Mastervolt Alpha Pro regulators, they create a high performance, plug-and-play charging solution. This combination is suitable for all battery types, including Lithium Ion.

These automotive style alternators offer many advantages. Most manufacturers offer a second alternator option, better known as PTO or Power Take Off option. This provides a straight-forward way to add an Alpha Compact as a second alternator. Alternatively, the stock alternator can be replaced with an Alpha Compact to obtain a powerful, MasterBus enabled 3-step charger.

Compared to conventional alternators, Alpha Compact offers lower weight, smaller dimensions and reduced fuel consumption. This is made possible by its open construction with double internal fans. An integrated temperature sensor controls the operating temperature.

The Alpha Compact 14/120 comes without a pulley.

Applications: Worldwide use in marine, mobile, infrastructure and industrial applications.

General specifications:

Charge regulation: an Alpha Pro III charge regulator comes standard with all models

Isolated operation: yes, with optional isolation bushings

Rotational direction: clockwise

Galvanic isolation: non-isolated

Cooling: integrated dual fan

Mounting: swivel arm

Pulley included: no

Weight: 6.7 kg (14.8 lb)

Technical specifications:

System voltage: 12V DC

Nominal current (at 6000 rpm, 25°C): 120A

Charge current (at 1800 rpm, 25°C): 70A

Cut-in speed: 1300 rpm

Max. rotational speed: 20.000 rpm

Power Take Off: 3.4 kW (4.5 hp)

Max. operating temperature: 120°C (248°F)

Connections: positive output stud = 2x M8; W (rpm) signal connection = isolated fast-on; field current connection = Mastervolt plug

Temperature sensor: integrated, RJ12 connection
