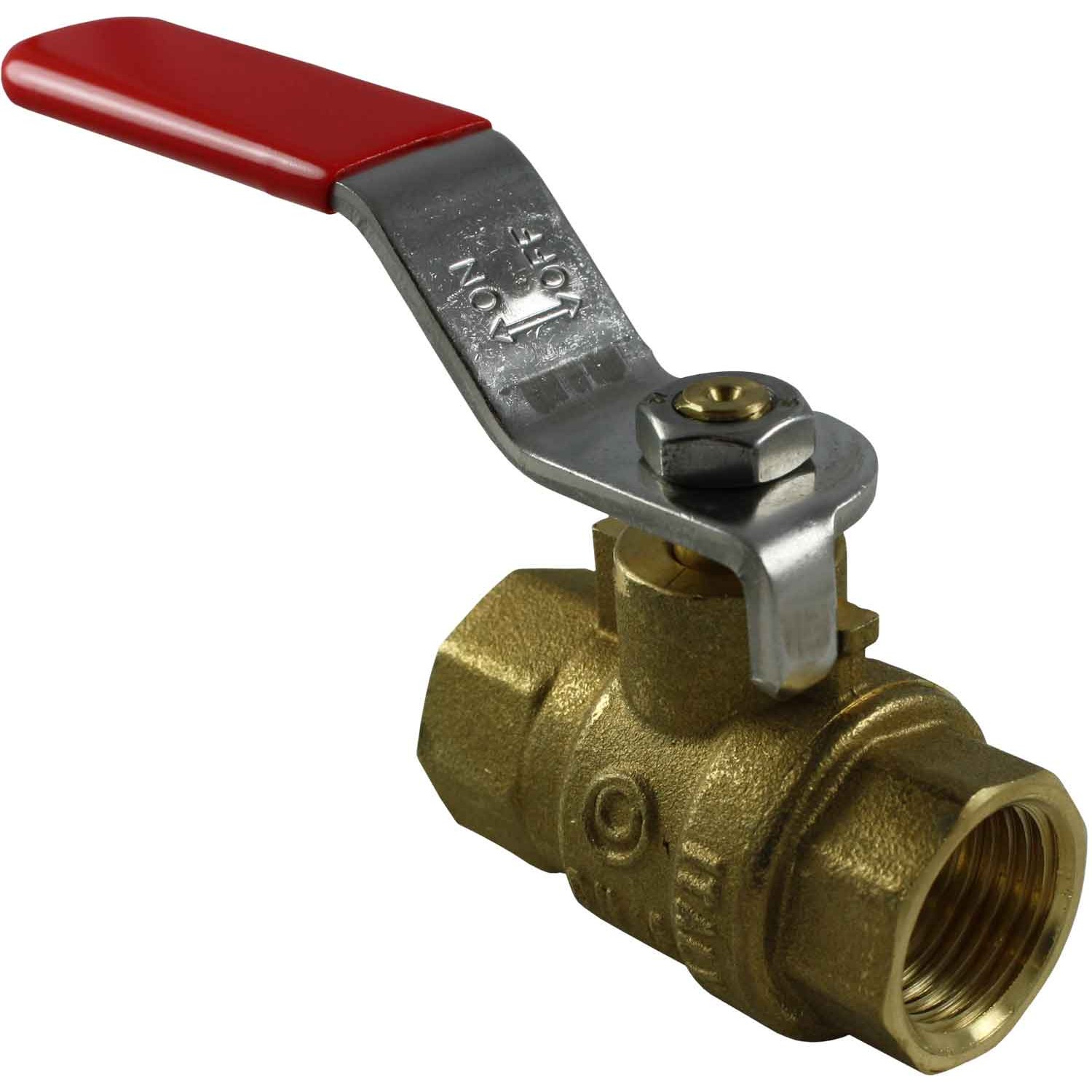

Maestrini DZR CR Ball Valve (1/2″ BSP Female)

SKU: 405703 MPN: 5140D
check_circle In Stock - Ready to Ship
£13.60 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

Maestrini ball valve constructed from de-zincification resistant CW602N CR brass. This ball valve is suitable for hot or cold water, steam, gasoline, fuel, oil, gas oil, kerosene and compressed air and can be used for sea water inlets and outlets. These ball valves are threaded 1/2″ BSP Female each end and have a lever handle on top which requires a 1/4 turn for on/off action. DZR CR ball valves are full bore meaning no restriction to flow when fully opened.

This ball valve features a CW602N DZR CR brass body and ball, as well as a stainless steel lever handle.

IMPORTANT: It is extremely important to check the material suitability and bonding requirements for below waterline components. Action must be taken to prevent Galvanisedanic action. If in doubt, please contact a qualified and competent marine engineer.

anchor

39 in stock

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

Maestrini ball valve constructed from de-zincification resistant CW602N CR brass. This ball valve is suitable for hot or cold water, steam, gasoline, fuel, oil, gas oil, kerosene and compressed air and can be used for sea water inlets and outlets. These ball valves are threaded 1/2″ BSP Female each end and have a lever handle on top which requires a 1/4 turn for on/off action. DZR CR ball valves are full bore meaning no restriction to flow when fully opened.

This ball valve features a CW602N DZR CR brass body and ball, as well as a stainless steel lever handle.

IMPORTANT: It is extremely important to check the material suitability and bonding requirements for below waterline components. Action must be taken to prevent Galvanisedanic action. If in doubt, please contact a qualified and competent marine engineer.

Material

DZR Brass Body (CW602N UNI EN 12165/98), Chrome Plated DZR Ball (CW602N UNI EN 12165/98), Stainless Steel 430 Handle & Nut, PTFE Ball Seat, NBR Ball Stem O-Ring & HNBR Handle Stem O-Ring

Primary Construction

DZR / CR Brass

Thread Connection

BSP

Thread Size

1/2"

Thread Gender

Female

Valve Design

Ball Valve

Maximum Pressure

25 bar

Thread Size Description

1/2" BSP Female (UNI ISO 228/1)

Brand

Maestrini

Temperature Range

-10°C to +100°C

Country of Origin

Italy
