Maestrini DZR Brass Anti-Siphon Device Kit

Maestrini DZR Brass Anti-Siphon Device Kit (32mm Hose / 10mm Vent)

SKU: 410095 MPN: MAKE AT ASAP
cancel Out of Stock
£119.99 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

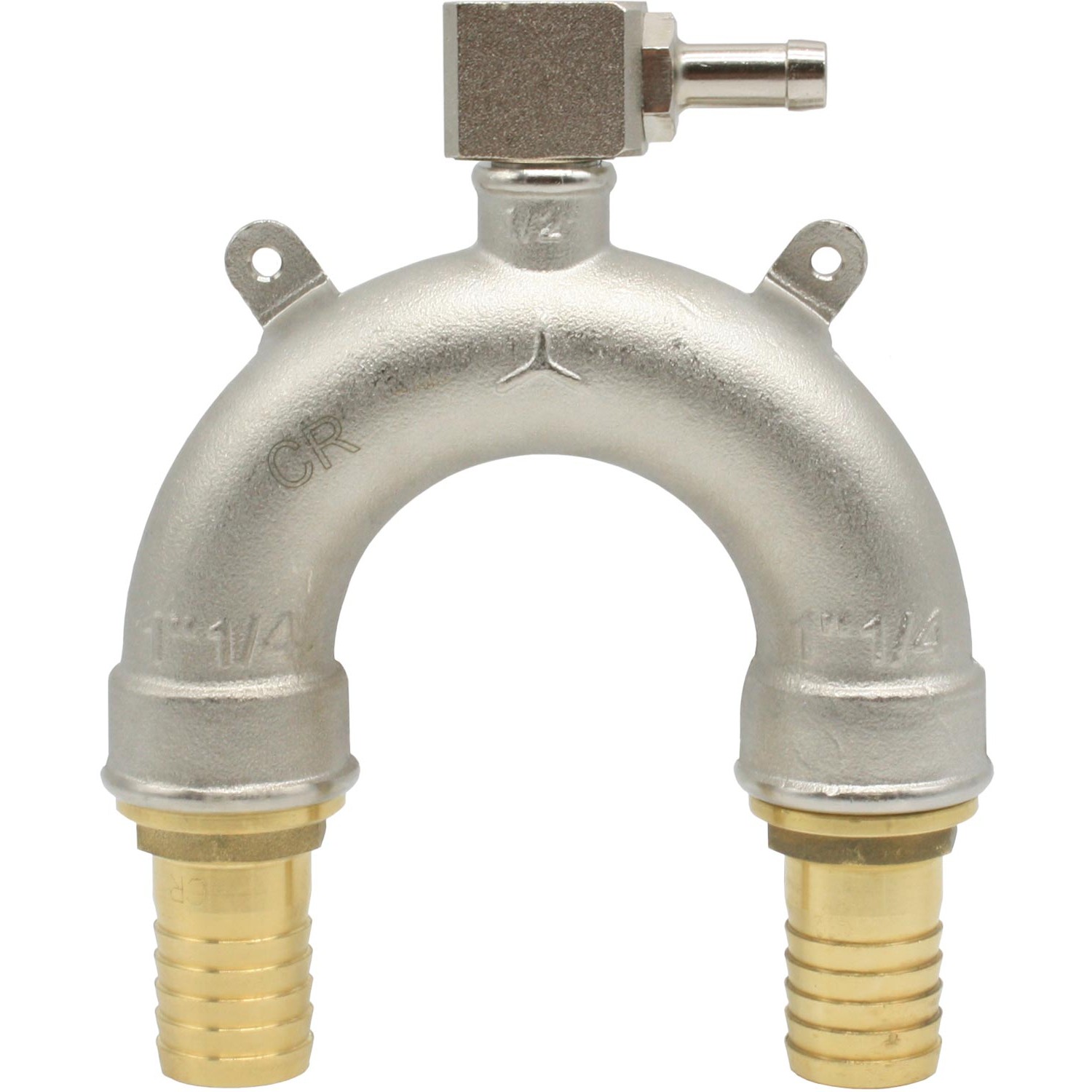

Maestrini anti-siphon loop and breaker valve kit supplied with hose tails for a complete hose line anti-siphon installation. This kit is supplied with the following parts to create a working anti-siphon device:

1 x DZR brass loop with two 1-1/4″ BSPF ports and one 1/2″ BSPF port (410066)

1 x DZR brass siphon valve with one 1/2″ BSPM and one 3/8″ BSPF port (410099)

2 x DZR brass 1-1/4″ BSPM to 32mm hose tails (435063)

Once assembled, these give a complete anti-siphon device suitable for 32mm hose lines and a 10mm vent hose. This will only allow water to flow in the intended direction and will create a vacuum if the flow is reversed. Typical installations for an anti-siphon device are sea water intakes, exhaust injection lines and toilet systems where the equipment installed is below the waterline.

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Maestrini DZR Brass Anti-Siphon Device Kit (32mm Hose / 10mm Vent)
SKU: 410095

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

Maestrini anti-siphon loop and breaker valve kit supplied with hose tails for a complete hose line anti-siphon installation. This kit is supplied with the following parts to create a working anti-siphon device:

1 x DZR brass loop with two 1-1/4″ BSPF ports and one 1/2″ BSPF port (410066)

1 x DZR brass siphon valve with one 1/2″ BSPM and one 3/8″ BSPF port (410099)

2 x DZR brass 1-1/4″ BSPM to 32mm hose tails (435063)

Once assembled, these give a complete anti-siphon device suitable for 32mm hose lines and a 10mm vent hose. This will only allow water to flow in the intended direction and will create a vacuum if the flow is reversed. Typical installations for an anti-siphon device are sea water intakes, exhaust injection lines and toilet systems where the equipment installed is below the waterline.

Material

DZR Brass Bend & Hose Tails. Valve is DZR Brass with a Rubber Valve
Hose Tail Size

32mm / 1-1/4"
Primary Construction

DZR / CR Brass
Valve Design

Siphon Break Valve
With Valve

Yes
Hose Size

Suits ID: 32mm (1-1/4") (with 10mm (3/8") connection for vent line)
Brand

Maestrini
Country of Origin

Italy
