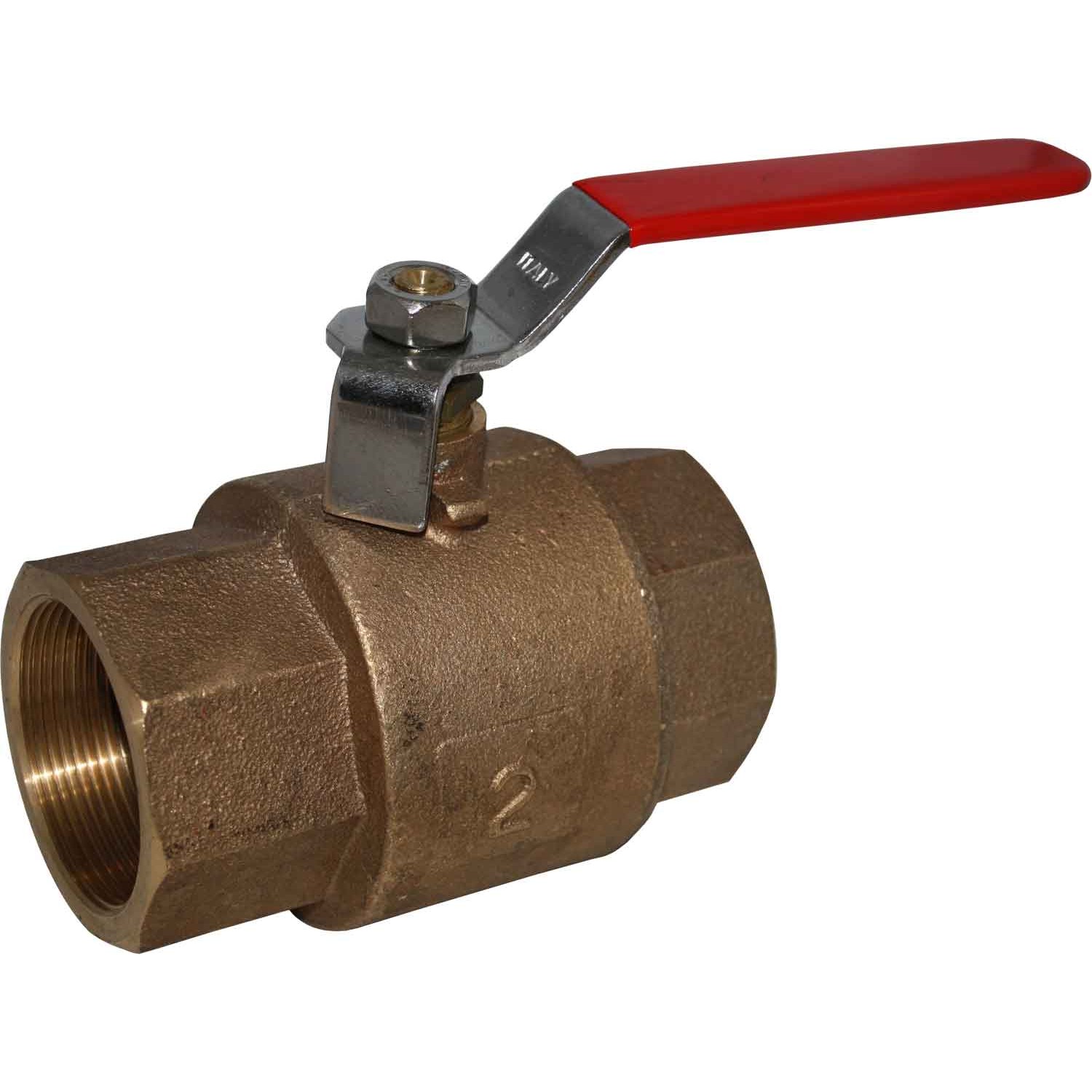

Maestrini Bronze Body Ball Valve (2″ BSP Female)

SKU: 405728 MPN: 5144I
check_circle In Stock - Ready to Ship
£166.81 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

Ball valve body constructed from bronze with a stainless steel handle. This ball valve is suitable for hot water, steam, gasoline, fuel, oil, gas oil, kerosene and compressed air. Has a threaded BSP Female port each end as well as a lever handle on top which requires a 1/4 turn. The stainless lever handle comes with a rubber grip cover.

Depending on the application and installation requirements, these bronze body ball valves may not be suitable for below waterline applications.

Important Note: All fittings used for below the waterline applications must be correctly fitted and bonded so as to minimise the risk of electrolytic action.

anchor

8 in stock

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

Ball valve body constructed from bronze with a stainless steel handle. This ball valve is suitable for hot water, steam, gasoline, fuel, oil, gas oil, kerosene and compressed air. Has a threaded BSP Female port each end as well as a lever handle on top which requires a 1/4 turn. The stainless lever handle comes with a rubber grip cover.

Depending on the application and installation requirements, these bronze body ball valves may not be suitable for below waterline applications.

Important Note: All fittings used for below the waterline applications must be correctly fitted and bonded so as to minimise the risk of electrolytic action.

Dimensions 13.4 × 137 cm
Material

Bronze Body (CC491K) with Chrome Plated Brass Ball (CW617), Stainless Steel Handle (AST430) with Non-Slip Grip, Brass Valve Shaft & Packing Body (CW617) & PTFE Ball Sealing Gaskets

Primary Construction

Bronze

Thread Connection

BSP

Thread Size

2"

Thread Gender

Female

Valve Design

Ball Valve

Maximum Pressure

500 PSI

Replaces

406208, 406308

Thread Size Description

2" BSP Female

Brand

Maestrini

Height Description

137mm (5.375")

Length

134mm, Handle: 153mm

Temperature Range

-10°C to +120°C

Country of Origin

Italy
