Description

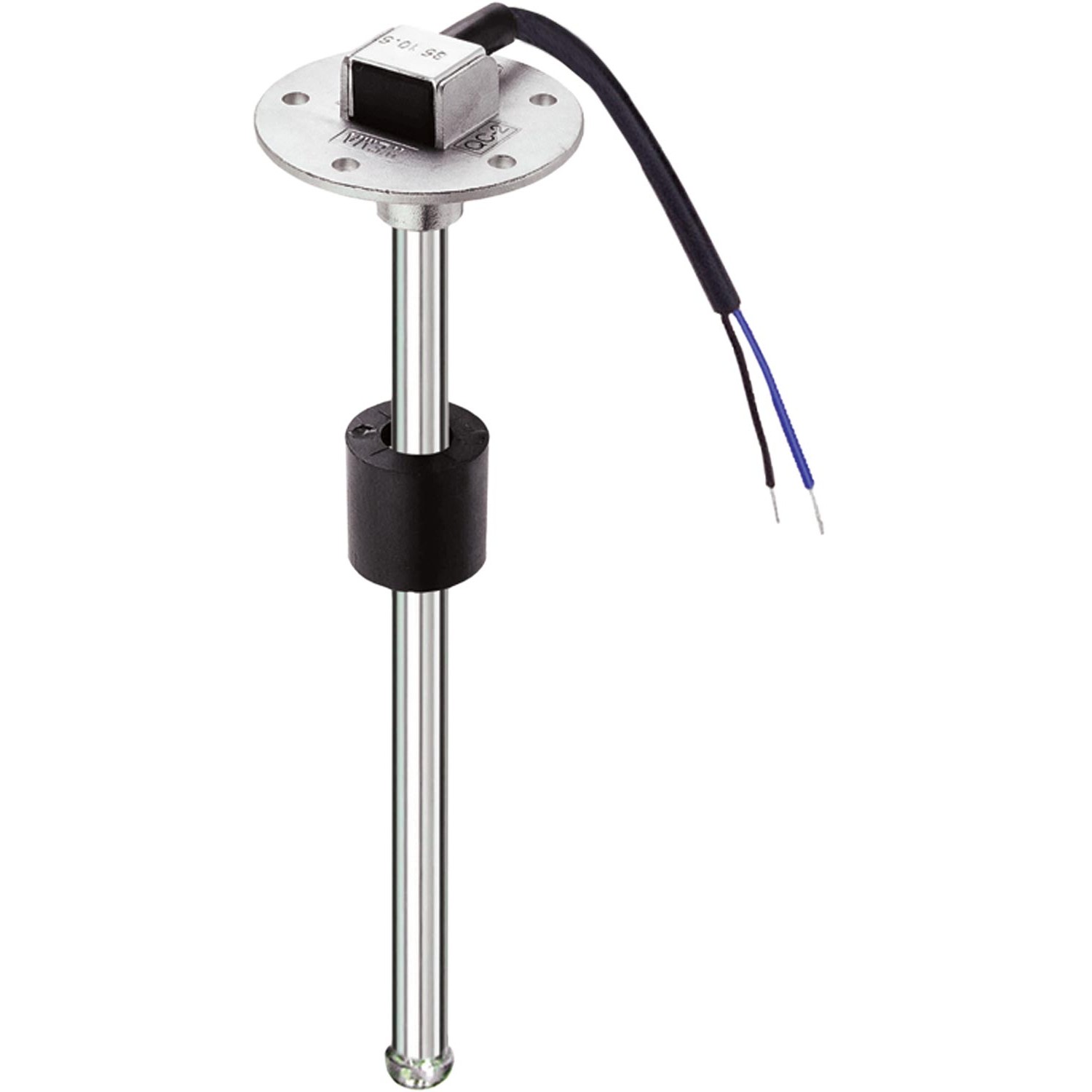

The KUS single station level sender is American resistance and suitable for use in diesel or petrol (gasoline) fuel tanks and water tanks.
The 150mm dip level sender features a stainless steel 316 body, a 2mm thick NBR rubber gasket, 5 x M5 Screws, and a PVC covered wire.
Sender uses magnetic field to control the on-off switch and features a long service life and vibration protection. The sender has a protection rating of IP67.
Single station level sender is suitable for operating one gauge, for dual gauge operations order a dual station level sender.
– Resistance Output: 240 to 33 ohms
– Power Rating: 125mW
– Resolution range: 10mm to 40mm
– KUS Part Number: JS60334 / S5-U150
When fitting this sender you may also need the JS21880 SAE 5 flange (sold separately) depending on your application.
