Description

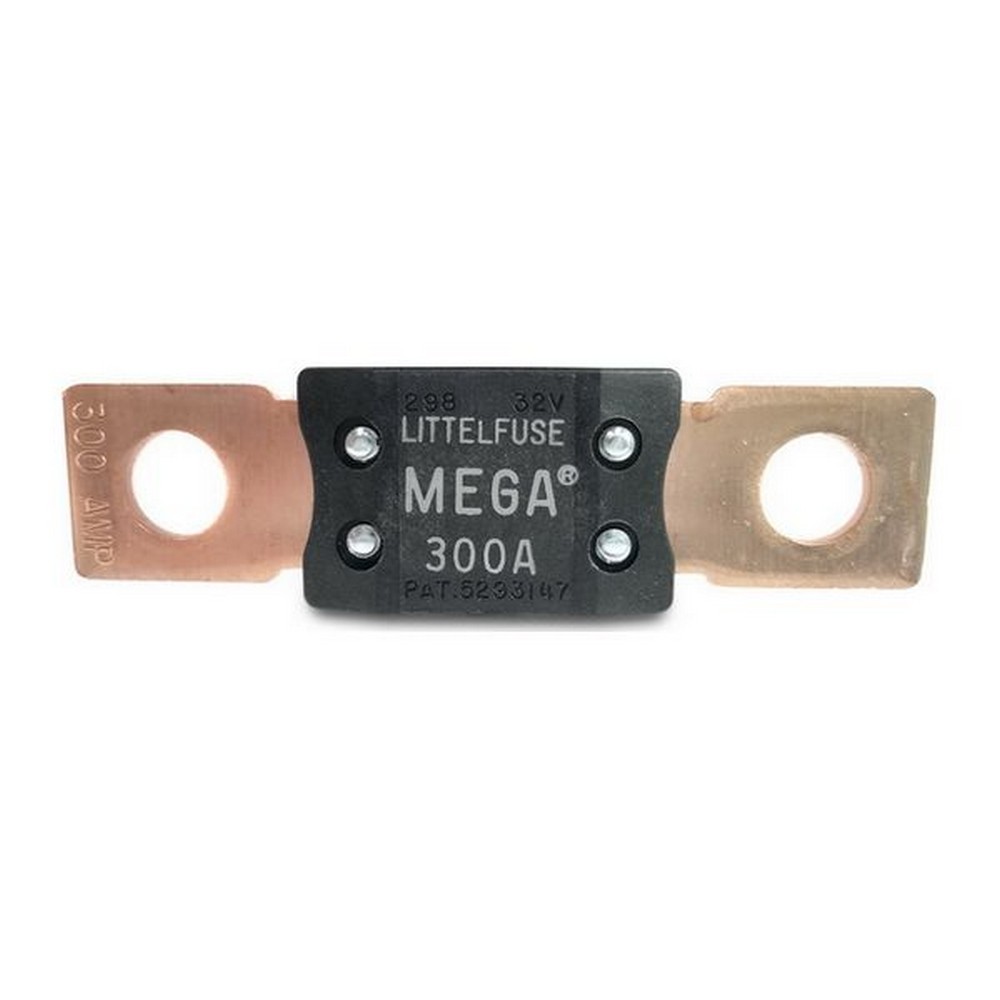

MEGA fuses are 67mm in length and have 50mm hole centres. Current ratings shown are the continuous ratings. Blow ratings are double the continuous ratings.
Ideal protection for battery chargers, power inverters and other high current marine and automotive electrical applications.
Colour: Black
Voltage: 32V DC maximum
Overall Length: 67mm, Overall Width: 19mm, Overall Depth:
Stud Size: 8.5mm, Blade Width: 16.5mm, Body Length: 29mm, Blade Depth: 1-1.8mm, Distance between hole centres 50.8mm (2″)
Plastic Body, Copper Termination
Temperature range: -40˚ to +125˚C (current rating decreases with increase temperature to 92% at +120˚C)
Quantity Per Pack: 1 Fuse
