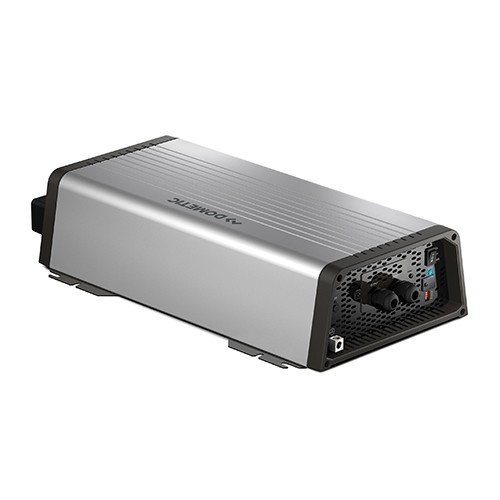

Dometic Pure Sine Wave Inverter 24V 2300W DSP2324TUK

Dometic Pure Sine Wave Inverter 24V 2300W DSP2324TUK

SKU: 8-70334 MPN: 9600005007
cancel Out of Stock
£1,961.09 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

The Sinepower DSP and DSP-T series generate a pure sine wave voltage, which is perfect even for sensitive 230V devices. They are fitted with smart protection circuits for safe operation. In case of overload, overheating, over or under voltage, the clever inverters switch off automatically – and on again when everything’s OK.

The integrated fan smoothly adjusts to the load and temperature conditions, which makes it pleasantly quiet. The premium inverters in the Sinepower DSP-T series offer two extra benefits; a mains priority circuit with voltage synchronisation and energy saving Smart Standby Mode.

Specification:

Output Voltage: 230/240V AC ± 3% pure sine wave (THD <3 %)

Output frequency: 50/60 Hz ± 0.3 Hz

Input Voltage Range: 12V: 10-16.5V DC

24V: 20-33V DC

Heat dissipation: temperature & load controlled fan

Ambient temp at operation: -20°C to +60°C

Ambient temp for storage: -30°C to +70°C

Power Control: ≥40ºC

Bypass Relay: 16A/250V AC

Bypass switching with voltage synchronisation: <20 ms

Air humidity: 0 – 95%, non-condensing

Testing/Certification: CE, E13

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Dometic Pure Sine Wave Inverter 24V 2300W DSP2324TUK
SKU: 8-70334

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

The Sinepower DSP and DSP-T series generate a pure sine wave voltage, which is perfect even for sensitive 230V devices. They are fitted with smart protection circuits for safe operation. In case of overload, overheating, over or under voltage, the clever inverters switch off automatically – and on again when everything’s OK.

The integrated fan smoothly adjusts to the load and temperature conditions, which makes it pleasantly quiet. The premium inverters in the Sinepower DSP-T series offer two extra benefits; a mains priority circuit with voltage synchronisation and energy saving Smart Standby Mode.

Specification:

Output Voltage: 230/240V AC ± 3% pure sine wave (THD <3 %)

Output frequency: 50/60 Hz ± 0.3 Hz

Input Voltage Range: 12V: 10-16.5V DC

24V: 20-33V DC

Heat dissipation: temperature & load controlled fan

Ambient temp at operation: -20°C to +60°C

Ambient temp for storage: -30°C to +70°C

Power Control: ≥40ºC

Bypass Relay: 16A/250V AC

Bypass switching with voltage synchronisation: <20 ms

Air humidity: 0 – 95%, non-condensing

Testing/Certification: CE, E13

Brand

Dometic
Voltage Description

12V DC
