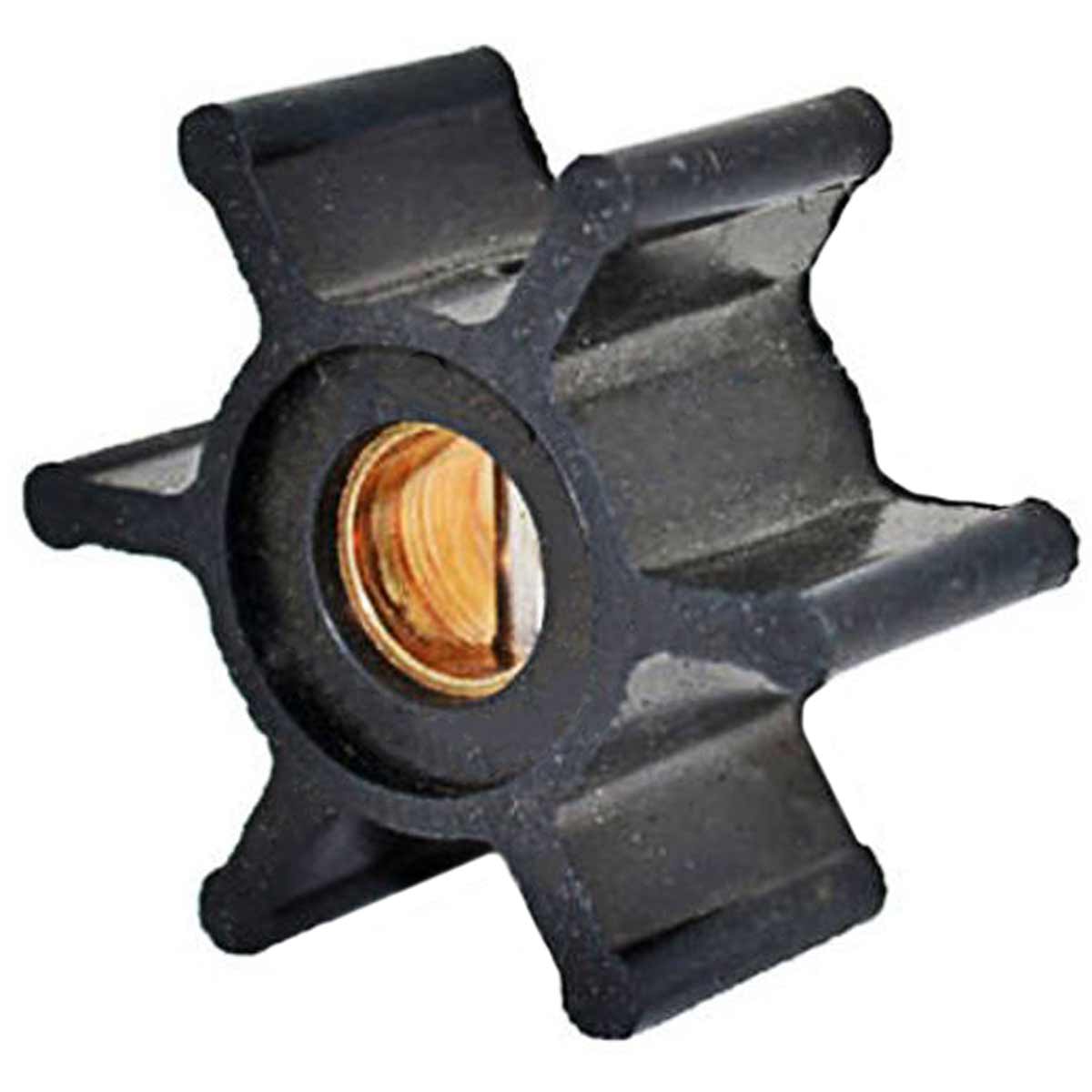

CEF Impeller for F4B and F38B Pumps (Nitrile)

Name: CEF Impeller for F4B and F38B Pumps (Nitrile) - Marine Chandlery
SKU: 09-810B-9A
Price: 22.84 GBP
Availability: OutOfStock

SKU: 09-810B-9A MPN: 500201GX

cancel Out of Stock

£22.84 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

The CEF nitrile flexible impeller is suitable for applications where diesel or light oils are present. The CEF flexible pump impeller is designed to be installed to some of the F4 range of Johnson Pumps which suits the impeller dimensions listed below, including:

– F4B-19 pumps (10-24512-01, 10-24512-02, 10-24689-01 & 10-24689-02), F4B-1907 pumps (10-24512-03, 10-24512-04, 10-24689-03 & 10-24689-04)

– F38B-19 pumps (10-24727-01 & 10-24727-02), F38B-1907 pumps (10-24727-03 & 10-24727-04)

The CEF flexible pump impeller has six blades / vanes.

The CEF 500201X can be used to replace the Johnson 09-824P-9 and Jabsco 6303-0003 Europe and USA flexible impeller.

Read Full Description arrow_downward

anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Your Name

Phone Number

Email Address

Anything else we should know?

Product: CEF Impeller for F4B and F38B Pumps (Nitrile)
SKU: 09-810B-9A

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout

verified_user Official Marine Warranty

local_shipping Fast UK Delivery

support_agent Expert Marine Support

assignment_return 30-Day Returns

Description
Additional information

Description

– F4B-19 pumps (10-24512-01, 10-24512-02, 10-24689-01 & 10-24689-02), F4B-1907 pumps (10-24512-03, 10-24512-04, 10-24689-03 & 10-24689-04)

– F38B-19 pumps (10-24727-01 & 10-24727-02), F38B-1907 pumps (10-24727-03 & 10-24727-04)

The CEF flexible pump impeller has six blades / vanes.

The CEF 500201X can be used to replace the Johnson 09-824P-9 and Jabsco 6303-0003 Europe and USA flexible impeller.

Dimensions	22 × 0.8 cm
Material	Nitrile
Primary Construction	Nitrile
Impeller Shaft Diameter	8mm
Number of Impeller Blades	6
Profile	H
Drive Type Description	Single Flat Drive
Replaces	09-824P-9 & 6303-0003
Brand	CEF
Depth	22mm (7/8")
Diameter Description	51mm (2"), Shaft 8mm (5/16")
