Bowman DC90 Oil Cooler (80HP / 1/2″ BSP Oil / 28mm ID Water)

Name: Bowman DC90 Oil Cooler (80HP / 1/2" BSP Oil / 28mm ID Water) - Marine Chandlery
SKU: 203051
Price: 157.80 GBP
Availability: OutOfStock

SKU: 203051 MPN: DC90-YBB

cancel Out of Stock

£157.80 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

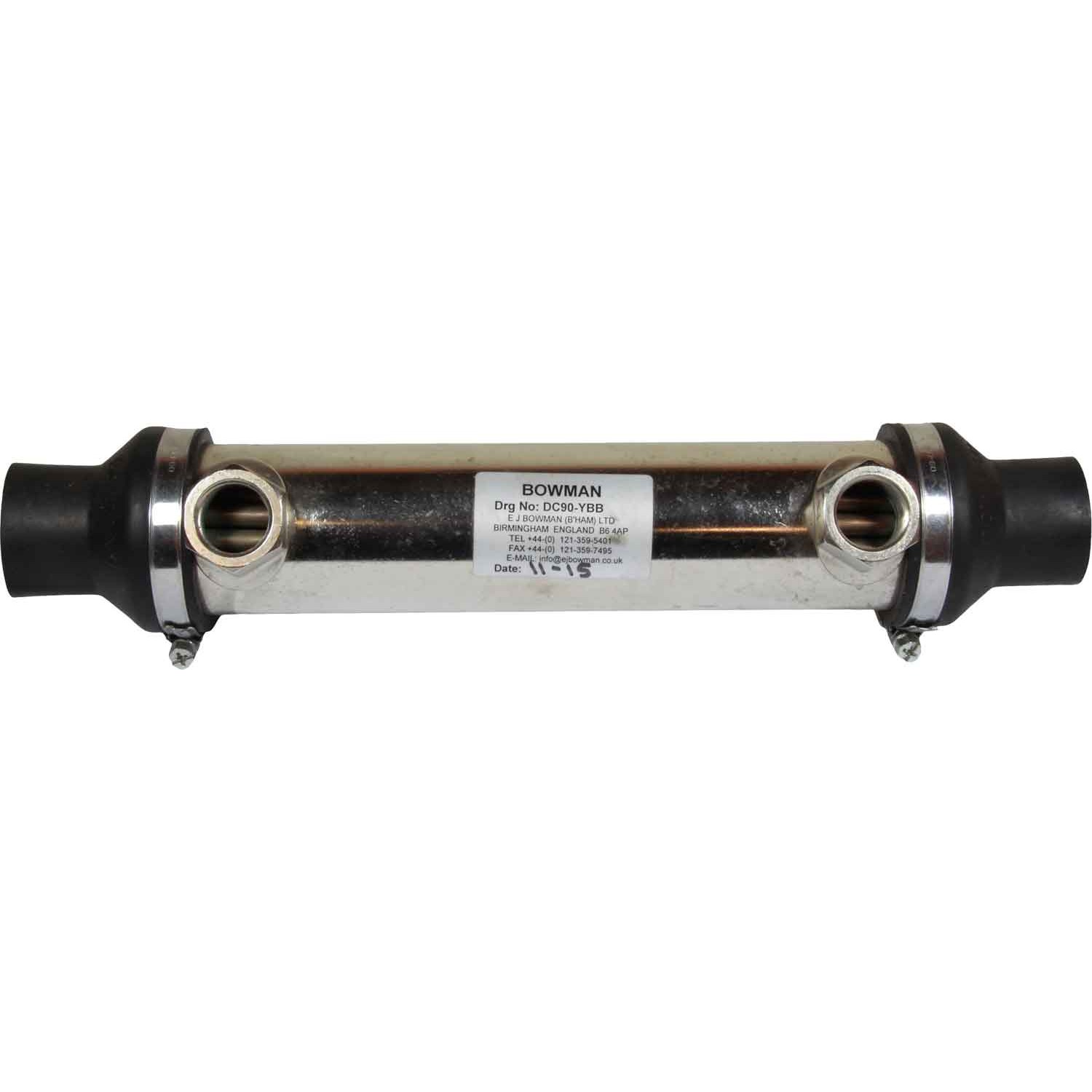

The Bowman DC90-YBB tubular oil cooler heat exchanger is suitable for use as either an engine oil cooler or a gearbox oil cooler.

Read Full Description arrow_downward

anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Your Name

Phone Number

Email Address

Anything else we should know?

Product: Bowman DC90 Oil Cooler (80HP / 1/2" BSP Oil / 28mm ID Water)
SKU: 203051

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout

verified_user Official Marine Warranty

local_shipping Fast UK Delivery

support_agent Expert Marine Support

assignment_return 30-Day Returns

Description
Additional information

Description

The Bowman DC90-YBB tubular oil cooler heat exchanger is suitable for use as either an engine oil cooler or a gearbox oil cooler.

Dimensions	31.4 × 5.1 cm
Flow Rate Description	Raw water flow: 60 LPM maximum
Gearboxes Transmitting Up To	200HP – 150kw
Connections Description	Oil: 1/2" BSP female, Raw Water: 28mm via neoprene rubber end caps
Maximum Horsepower Description	80HP (60kW)
Internal Oil Volume	160ml
Internal Water Volume	240ml
Maximum Pressure	Maximum working oil pressure: 30 Bar, Maximum working water pressure: 2 Bar
Brand	Bowman
Model	DC90
Length	314mm (including end caps), 235mm (excluding end caps)
Operating Temperature	125°C Maximum
Diameter Description	OD: 51mm
Country of Origin	United Kingdom
