Description

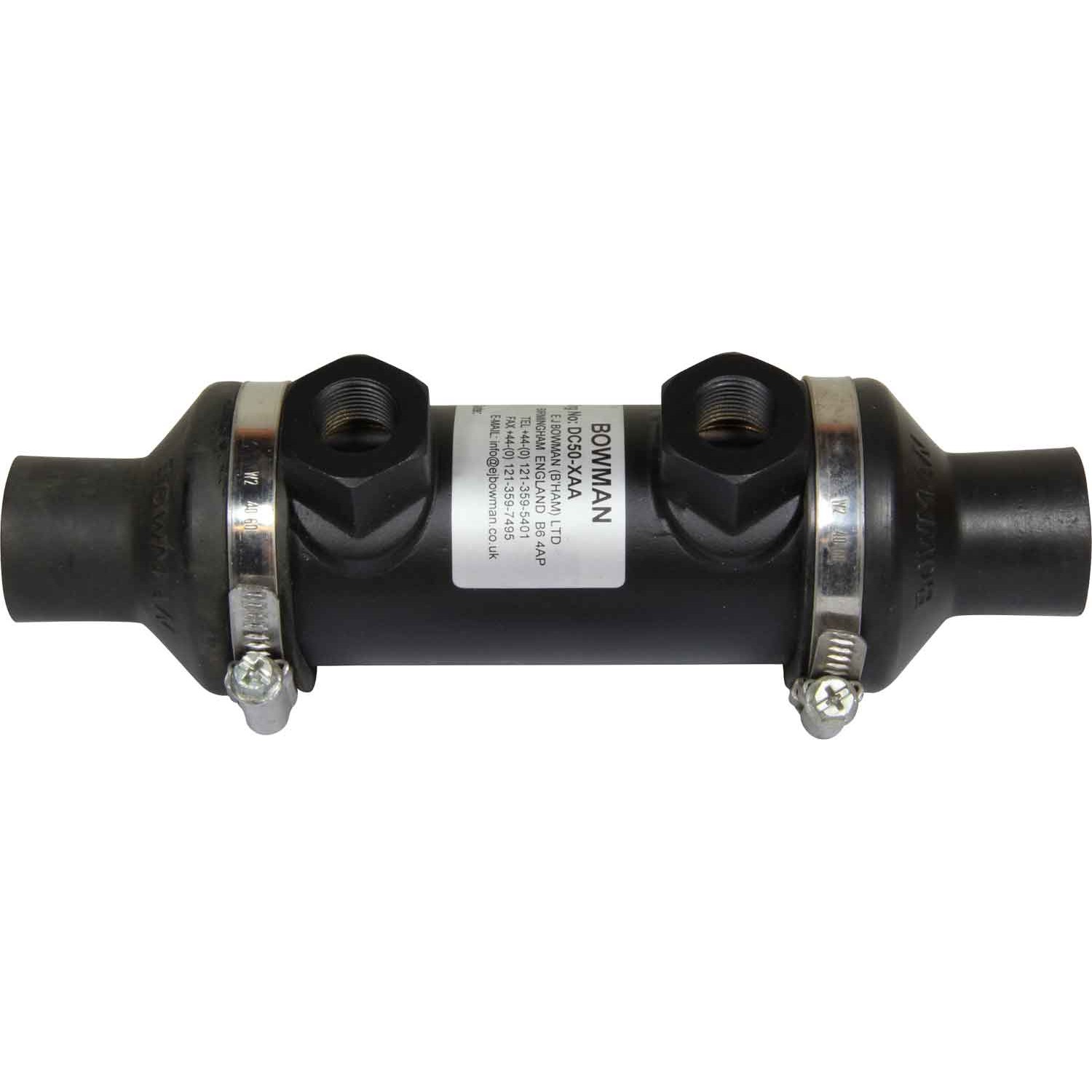

The Bowman DC50-XAA tubular oil cooler heat exchanger is suitable for use as either an engine oil cooler or a gearbox oil cooler.
| Dimensions | 21 × 5.1 cm |
|---|---|
| Flow Rate Description | Raw water flow: 60 LPM maximum |
| Working Pressure | Oil: 30 bar Maximum, Water: 2 bar Maximum |
| Gearboxes Transmitting Up To | 100HP – 75kw |
| Connections Description | Oil: 3/8" BSP female, Raw Water: 22mm via neoprene rubber end caps |
| Maximum Horsepower Description | 40HP (30kW) |
| Internal Oil Volume | 80ml |
| Internal Water Volume | 160ml |
| Maximum Pressure | Working Oil Pressure: 435 PSI (30 Bar), Working Water Pressure: 29 PSI (2 Bar) |
| Brand | Bowman |
| Model | DC50 |
| Length | 210mm (including end caps), 125mm (excluding end caps) |
| Operating Temperature | 125°C Maximum |
| Diameter Description | OD: 51mm |
| Country of Origin | United Kingdom |
