Description

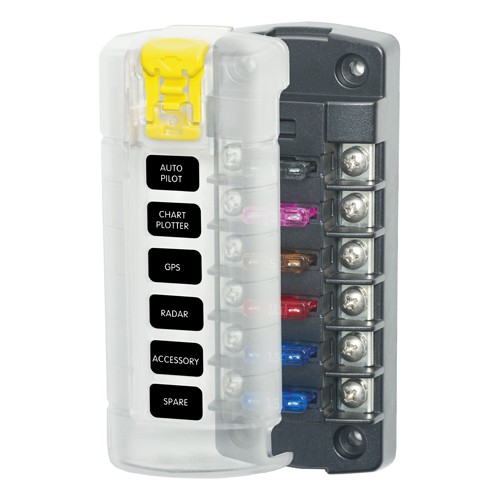

INDEPENDENT SOURCED CIRCUIT FUSE BLOCKS
ST Blade Fuse Blocks Screw Terminal Compact ATO®/ATC® fuse block consolidates branch circuits and eliminates the tangle of in-line fuses for electronics and other appliances.
Can be used for 24-hour circuits
Clear insulating cover with label recesses accepts Small Format Labels
Cover satisfies ABYC/USCG insulation requirements
Accepts ring terminals
Easy to open, push button latch provides easy access to fuses
Tin-plated copper buses and fuse clips
Fuse Blocks with covers include 20 write-on circuit labels
Fuses sold separately
Specifications
Voltage Max Operating: 32V DC
Amperage Max Operating: 30A (per circuit)
Fuse Type: ATO® or ATC® Fuses
Screw Terminal: #8-32 Screws with
Captive Star Lock washer
Mounting: #8 Screw (M4)
