Description

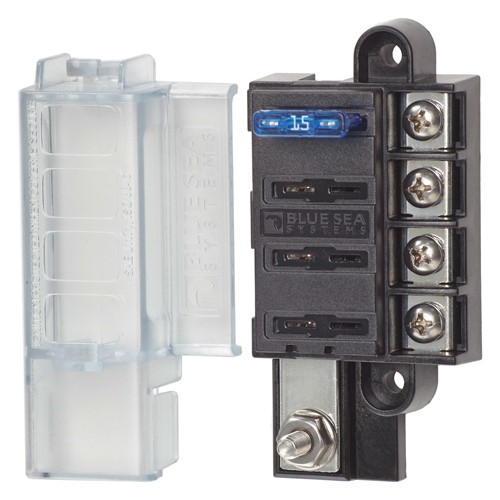

Blue Sea compact fuse block 5045 for 4 circuits, provides surface mount circuit protection for ATO and ATC fuses in a compact footprint.
The fuse block is ignition protected, when the insulation cover is secure it meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment, as well as ABYC and USCG insulation requirements.
The single side design allows wire entry from one side to minimise the footprint of the block.
– Tin-plated copper buses and fuse clips
– Accepts ring or snap fork type terminals
– Includes 4 write-on circuit labels
Circuits: 4
Maximum Amperage: 100A per block, 30A per circuit
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4)
Terminal Stud Torque: 24 in-lb (2.71 Nm)
Screw Terminal Torque: 18 in-lb (2.03 Nm)
Screw Terminal Type: #8-32 Screws with captive star lock washer
Terminal Stud Size: #10-32
Weight: 0.11 kg (0.25lb)
Approvals: CE, Ignition Protected, IP66, ISO 8845 Marine, SAE J1171 Marine & UKCA
