Description

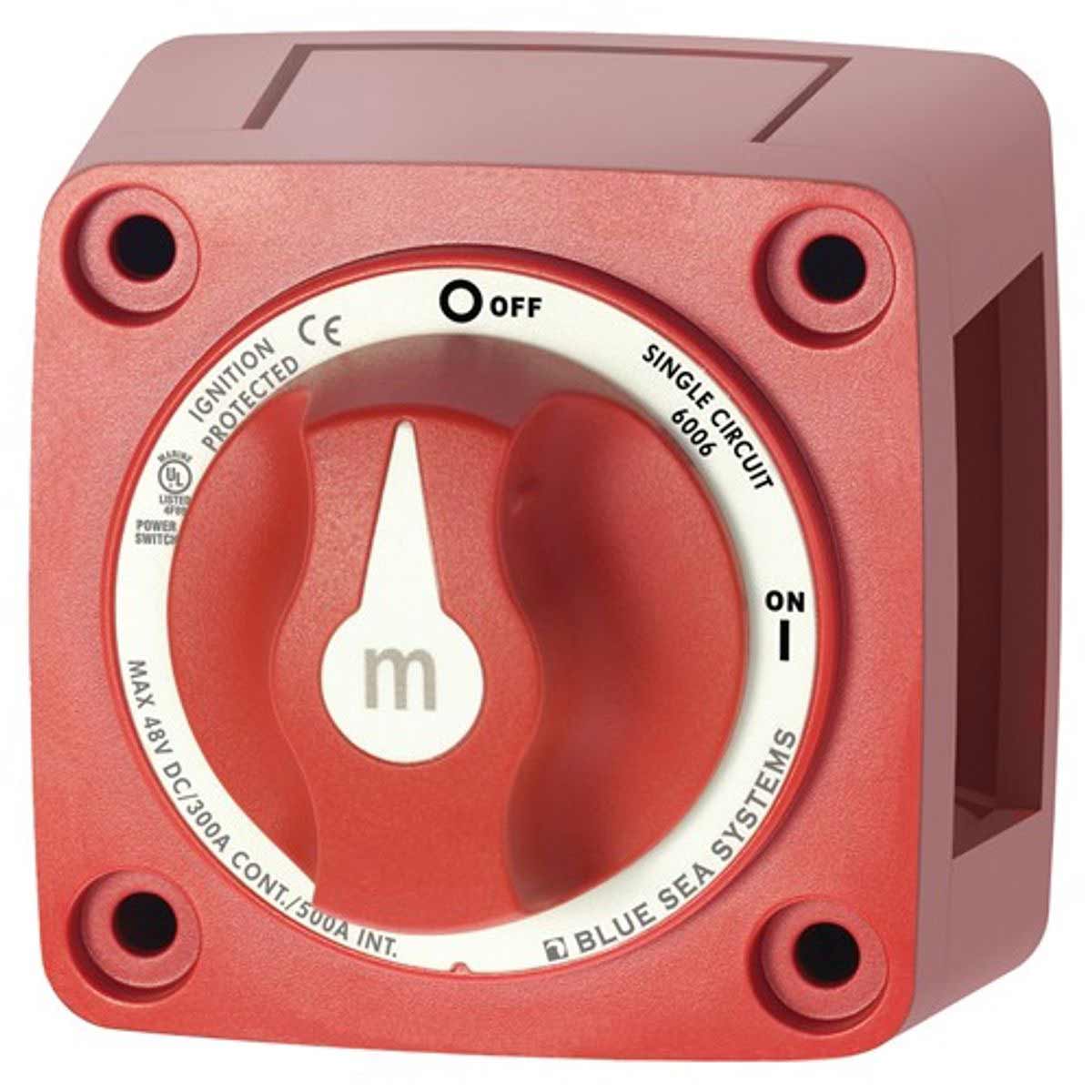

M-SERIES BATTERY SWITCH
300 Amp continuous rating for outboards and small gasoline or diesel engines.
Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8″ (M10) ring terminals
One-piece terminal stud design never loosens over time
7/8″ (22.22mm) stud length accepts multiple cable terminals
Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction
Case design allows surface, rear, or front panel mounting options
Paralleling Link BUS 8-29159
Specifications:
Terminal Stud Size: 3/8″ 16 (M10)
Terminal Stud Torque: 120 in-lbs
Mounting Holes: Accept #10 screw
Cable Size to Meet Ratings: 4/0 AWG (95mm2)
Cable Clearance 1.12″ (28.4mm)
