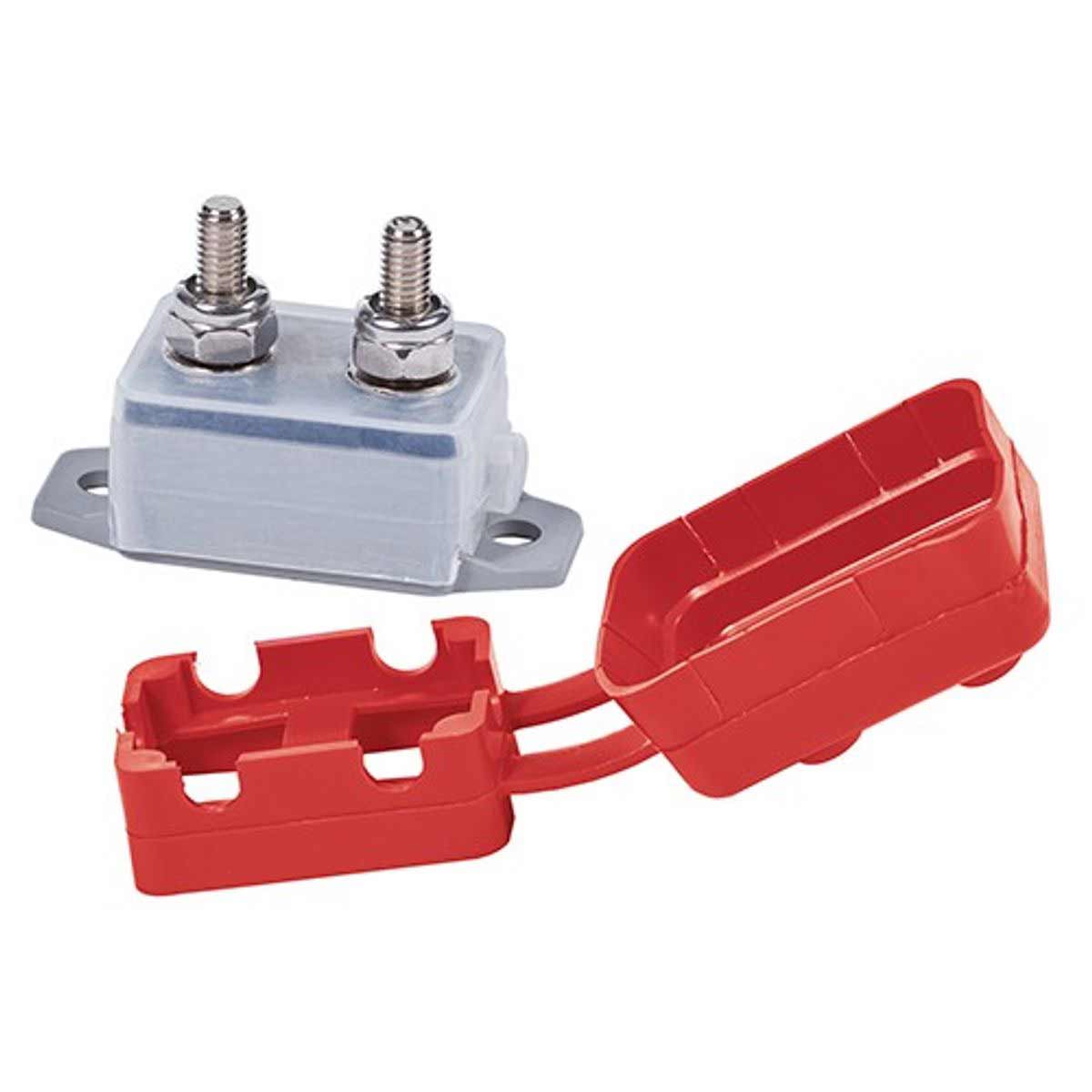

Blue Sea Marine Grade Short Stop Circuit Breaker Surface Mount 20A

Blue Sea Marine Grade Short Stop Circuit Breaker Surface Mount 20A

SKU: 8-27153 MPN: 7153-BSS
cancel Out of Stock
£8.02 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

Use a circuit breaker instead of a fuse

Designed with corrosion resistant materials to withstand harsh environments

IP64 water resistant boot protects against dust and splashing water

Push-to-reset operation only disconnects when tripped

Stainless steel nyloc nuts for secure connections

Red insulating boot included in retail package only

Regulatory

IP64, SAE J553, Meets SAE J1171 external ignition protection requirements.

Specifications:

Interrupting Capacity: 2,500A @ 28V DC

Voltage Max. Operating: 28V DC

Temperature Min. Operating: -10°C

Temperature Max. Operating: 60°C

Type: Thermal trip, manual reset

Terminals: #10-32″ Studs

Screw Terminal Torque: 24 in-lb max.

Read Full Description arrow_downward
anchor

Out of stock

Get a Custom Quote

This item is currently out of stock. Send us your details and we will re-source availability, then get back to you with a custom quote as soon as possible.

Product: Blue Sea Marine Grade Short Stop Circuit Breaker Surface Mount 20A
SKU: 8-27153

Thank you. Once submitted, our team will review your request and contact you by email or phone as soon as possible.

lock Secure 256-bit Checkout
verified_user Official Marine Warranty
local_shipping Fast UK Delivery
support_agent Expert Marine Support
assignment_return 30-Day Returns

Description

Use a circuit breaker instead of a fuse

Designed with corrosion resistant materials to withstand harsh environments

IP64 water resistant boot protects against dust and splashing water

Push-to-reset operation only disconnects when tripped

Stainless steel nyloc nuts for secure connections

Red insulating boot included in retail package only

Regulatory

IP64, SAE J553, Meets SAE J1171 external ignition protection requirements.

Specifications:

Interrupting Capacity: 2,500A @ 28V DC

Voltage Max. Operating: 28V DC

Temperature Min. Operating: -10°C

Temperature Max. Operating: 60°C

Type: Thermal trip, manual reset

Terminals: #10-32″ Studs

Screw Terminal Torque: 24 in-lb max.

Brand

Blue Sea Systems
Voltage Description

28V DC maximum
Amps Description

20A
Mounting Description

Surface Mount
