Description

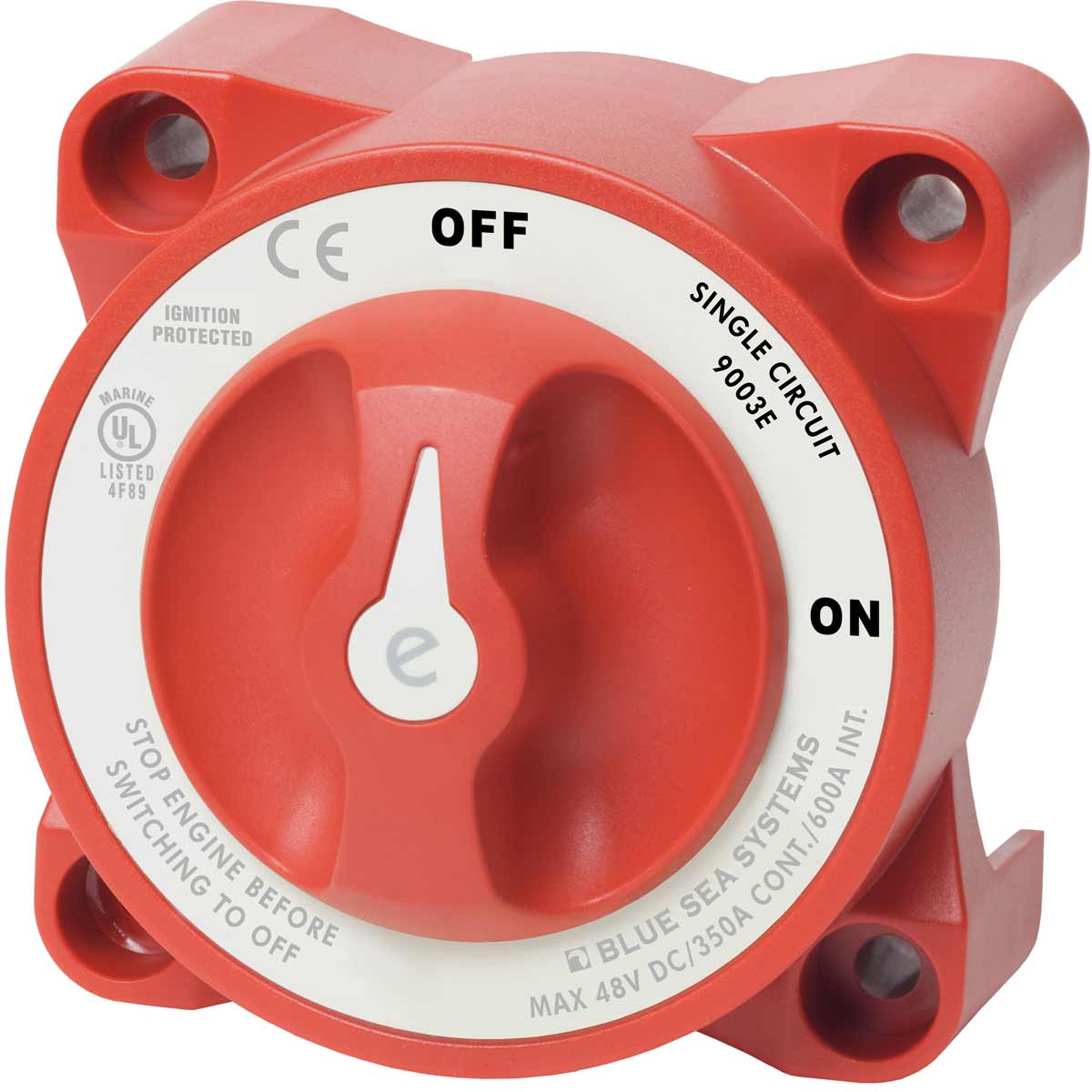

E-SERIES BATTERY SWITCH
350 Ampere continuous rating for inboard gasoline and diesel engines.
Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8″ (M10) ring terminals
7/8″ (22mm) stud length accepts multiple cable terminals
One-piece terminal stud design never loosens over time
Case design allows surface or rear panel mounting options
Label with international legends
Tactile indicator conveys knob position by feel
Specifications:
Terminal Stud Size: 3/8″ 16 (M10)
Terminal Stud Torque: 140 in-lbs
Mounting Holes: Accepts M6 screw
Cable Size to Meet Ratings: 4/0 AWG (95mm2)
Cable Clearance: 1.10″ (28mm)
