Description

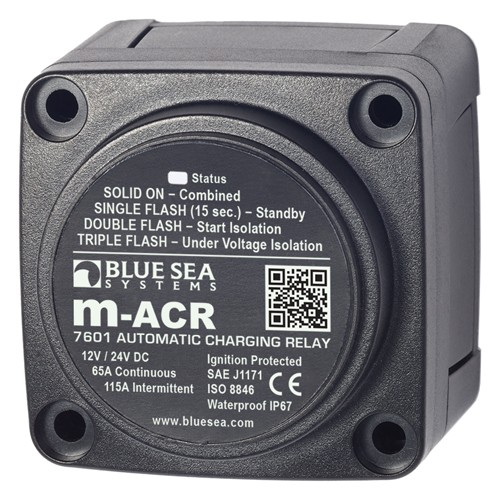

M-ACR AUTOMATIC CHARGING RELAY
With optional Start Isolation
Automatically combines batteries during charging, isolates batteries when discharging and when starting engines.
65 Amp continuous rating
12V/24V DC auto ranging voltage input
Senses charging on two battery banks
Case design allows surface, rear, or front panel mounting options
Snap-on cover insulates terminal connections
7/16″ (11mm) stud length
Integrated LED indicates ACR states
1 /4″ ×. 032″ male quick connect terminals for ground and start isolation connections
Regulatory:
CE marked, ISO 8846
Meets UL SAE J1171 external ignition protection requirements
IP67 – protected against immersion up to 1 meter for 30 minutes
