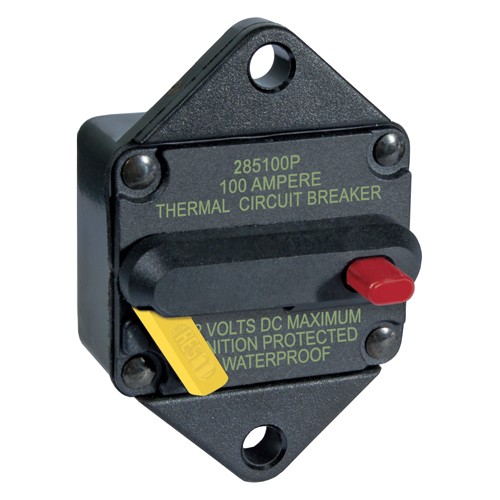

Provides medium duty circuit protection for 25 to 150 Amp loads when switching and circuit protection are both required
Trip-free – cannot be held closed after trip
Visible reset lever shows open condition
Drop-in replacement for 185-Series Circuit Breakers
Regulatory
CE marked
Meets SAE J1171 external ignition protection requirements, †AIC ratings achieved using SAE J1625
IP67 – protected against immersion up to 1 meter for 30 minutes
14 in stock
Need more? Request a custom quote for larger quantities
Provides medium duty circuit protection for 25 to 150 Amp loads when switching and circuit protection are both required
Trip-free – cannot be held closed after trip
Visible reset lever shows open condition
Drop-in replacement for 185-Series Circuit Breakers
Regulatory
CE marked
Meets SAE J1171 external ignition protection requirements, †AIC ratings achieved using SAE J1625
IP67 – protected against immersion up to 1 meter for 30 minutes
| Brand | Blue Sea Systems |
|---|---|
| Voltage Description | 48V DC maximum |
| Amps Description | 120A |
| Mounting Description | Panel Mounted |
